Ignition Lock: Service and Repair
AR46.10-P-0910CW Remove/install electronic steering lock
Component Identification:

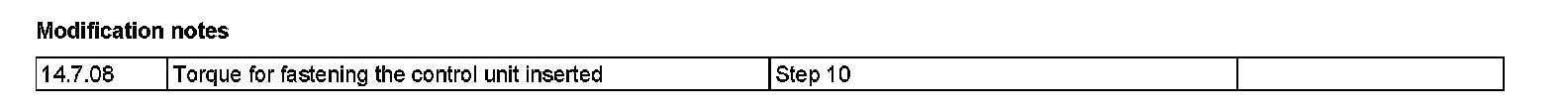

Modification notes:

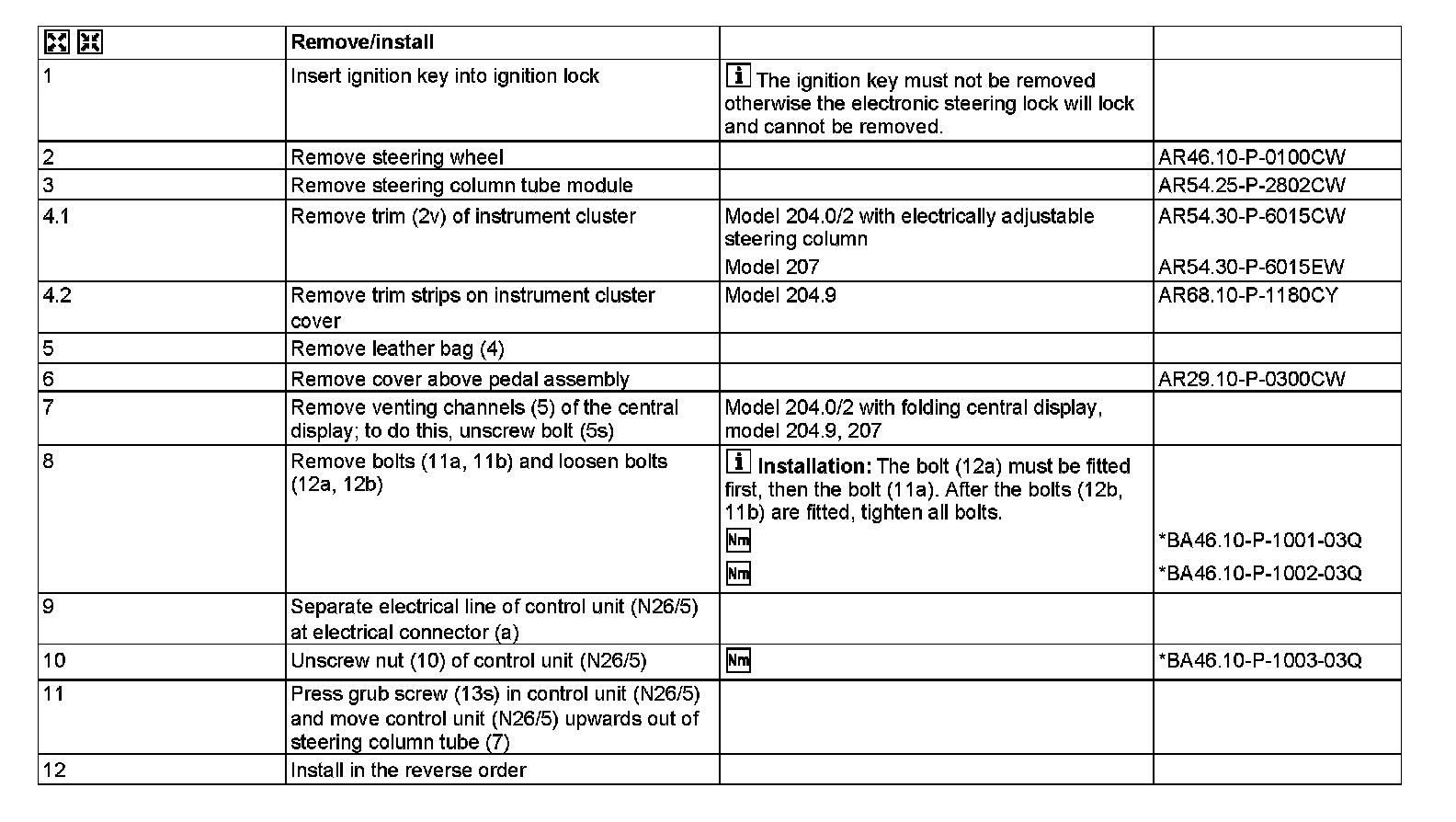

Steps 1-12:
Jacket tube:
