Engine/Cooling System - Collision Repair On Radiator
Date December 2, 2011Order No: T-B-20.20/36
Group: 20
SUBJECT: MY-All, Model 166
Accident Repair Jobs on Radiator

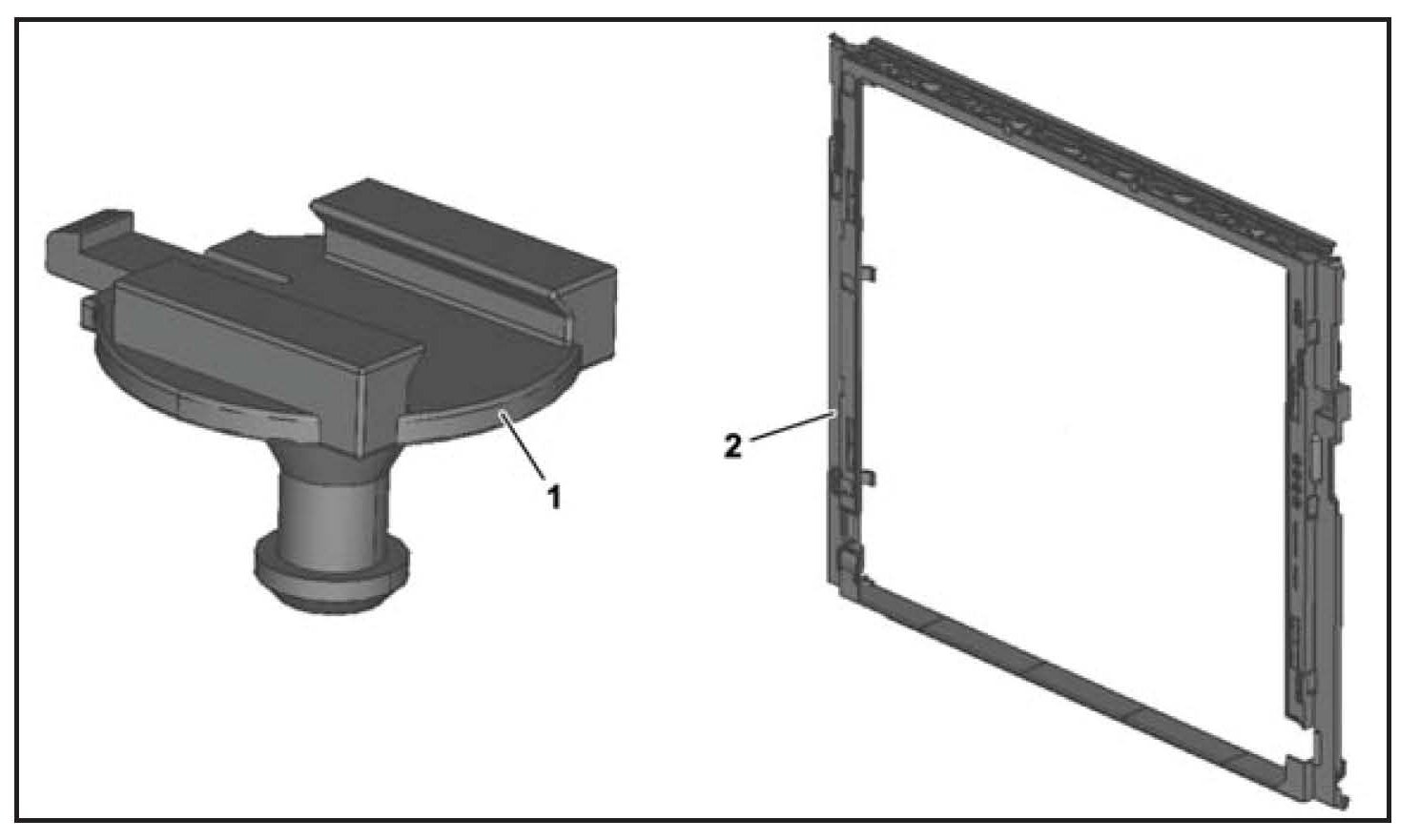

1. Bottom radiator mount
2. Supporting frame for coolant module
Deformation on Cooling Module Components
In the event of damage to cooler support (1) at bottom and supporting frame for cooling module (2) they can be replaced individually (see EPC).
As long as the function and impermeability of the cooling module components are not impaired replacement is not mandatory for the following types of damage:
- Insignificant marks on the radiator fins
- Minor deflection
- Cooler supports at bottom (1) left and right broken off
Impressions and minor deflections may be production specific even for first-time installation.
