Exhaust System - Vibration/Rattle Noises

Vibration / rattle noises from area of exhaust system

Numero de tema LI49.10-P-054249

Version 1

Grupo de construccion 49.10 Exhaust pipes, catalyytic converter, mufflers

Edicion 08-03-2012

Validez Model 166 with engine 276 up to production date 27.03.2012

Motivo de modificacion

Reclamacion:
Vibration / rattle noises from the area of the exhaust system.

Causa:
Normal operating vibrations in the exhaust system may not be completely dampened by the previously installed suspension rings under certain conditions.

Remedio:
Install modified suspension rings on center and rear mufflers as per parts list.





Sintomas





Piezas

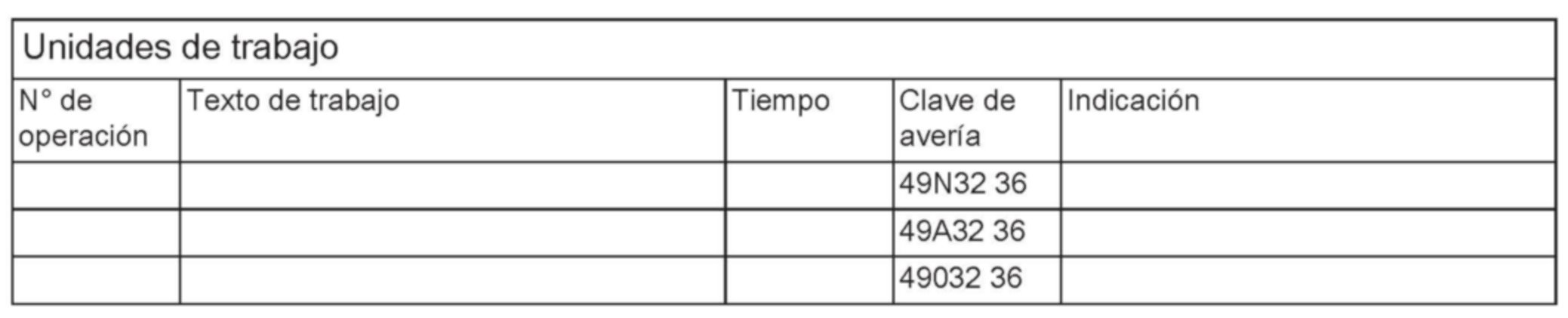

Unidades de trabajo
