10C800

Component M55 (Inlet port shutoff motor) is mechanically damaged or it sticks.


Possible cause:

- M55 (Intake port shutoff actuator motor)
Affected functions:

- Power generation

-------------------------------------------------

Test 1: Check component M55 (Inlet port shutoff motor).

1. Check component M55 (Inlet port shutoff motor).
Check component B96/2 (Right intake port shutoff end position sensor).

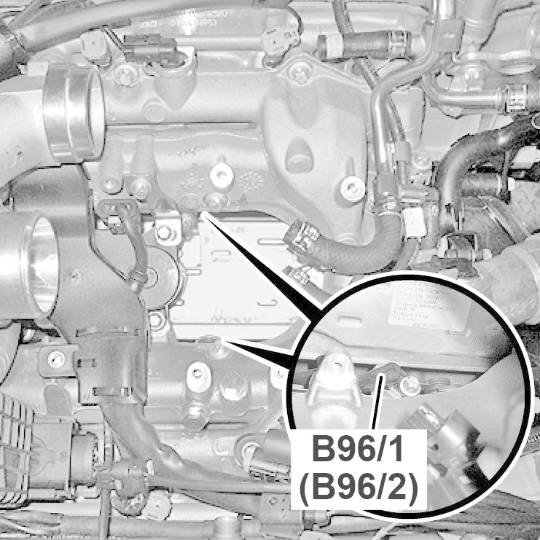

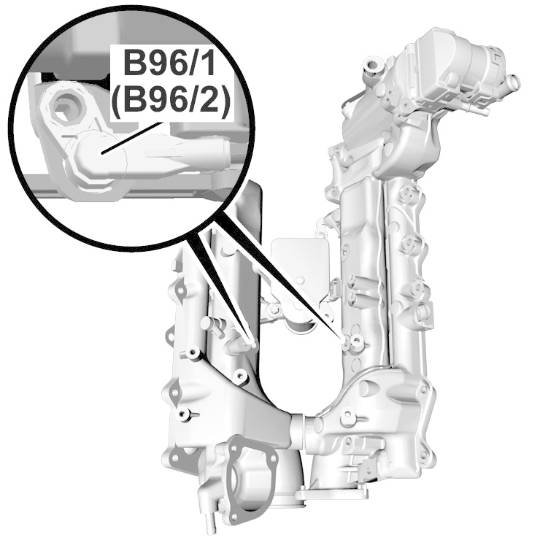

Figure legendPicture 1 /Picture 2

- B96/1 (Left intake port shutoff end position sensor)
- B96/2 (Right intake port shutoff end position sensor)
Further procedure

- Check component B96/2 (Right intake port shutoff end position sensor) for tight seating.
- Check component M55 (Inlet port shutoff motor) for unobstructed movement.
- Component B96/2 (Right intake port shutoff end position sensor) is defective.
End of test
