Brake Pedal Assy: Service and Repair

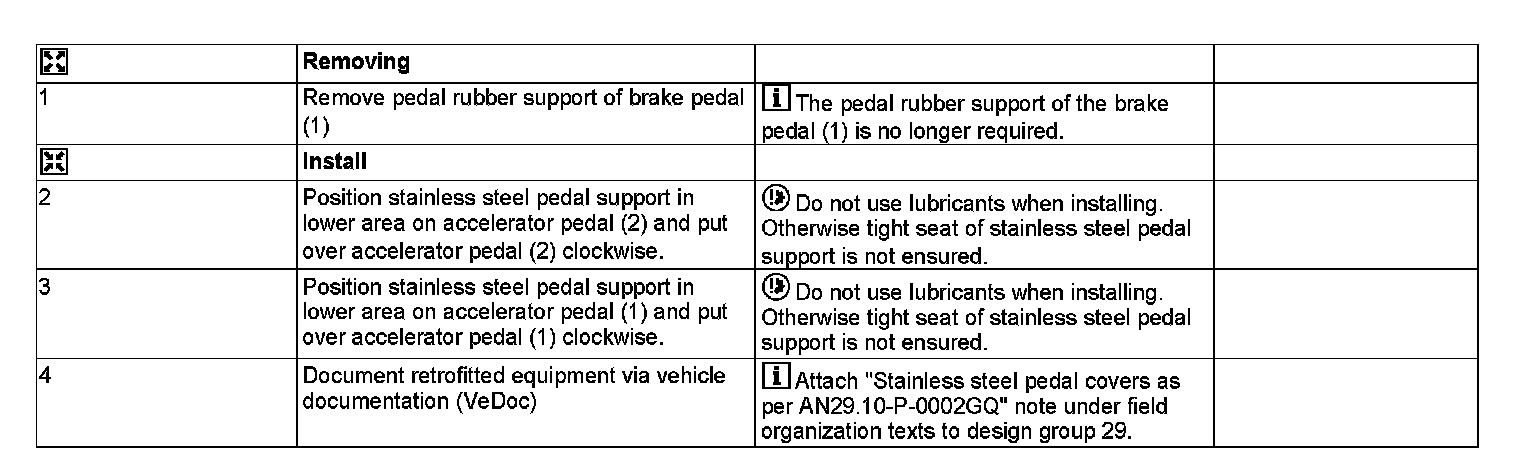

AN29.10-P-0002GQ Retrofit Pedal Pads
MODEL 166.0

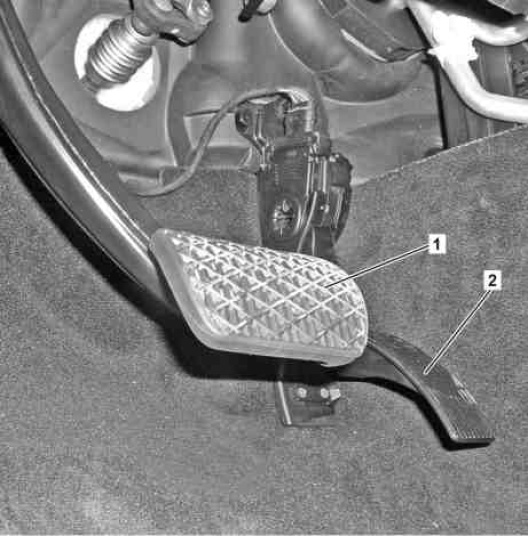

1 Brake pedal
2 Accelerator pedal
