Integrated Accessory Switch Assembly
Integrated Accessory Switch Assembly

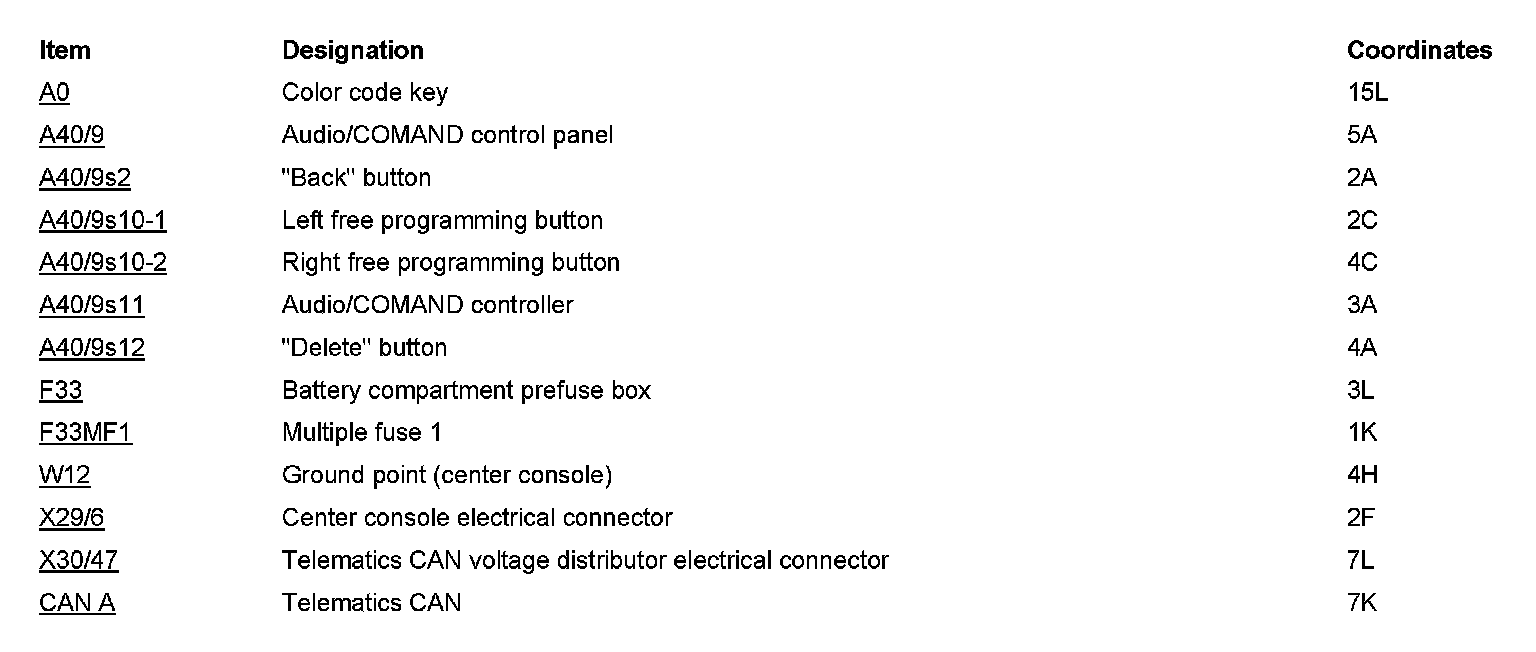

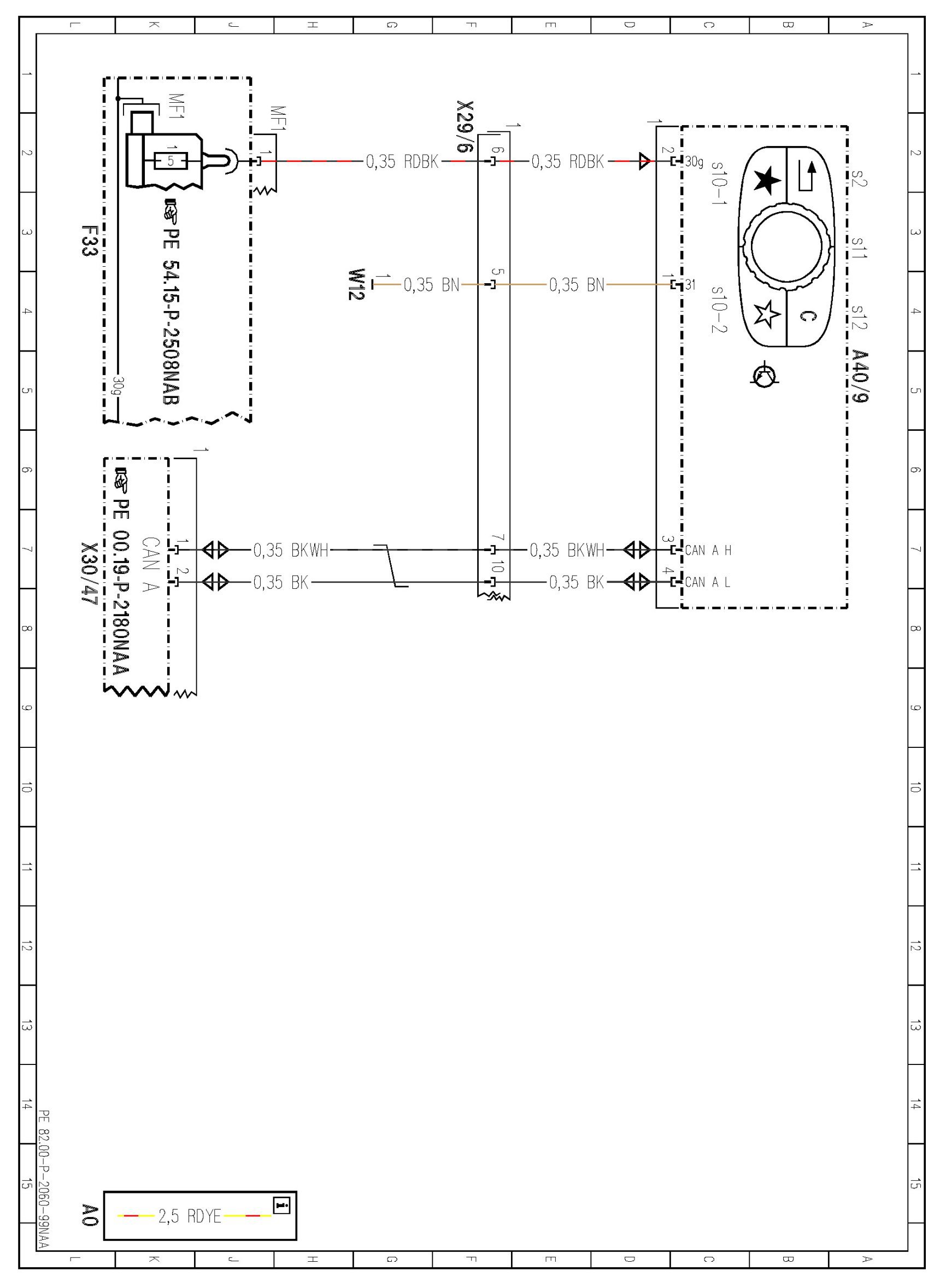

PE82.00-P-2060NAA Front Central Operating Unit
MODEL 166
-
Control Unit A40/9

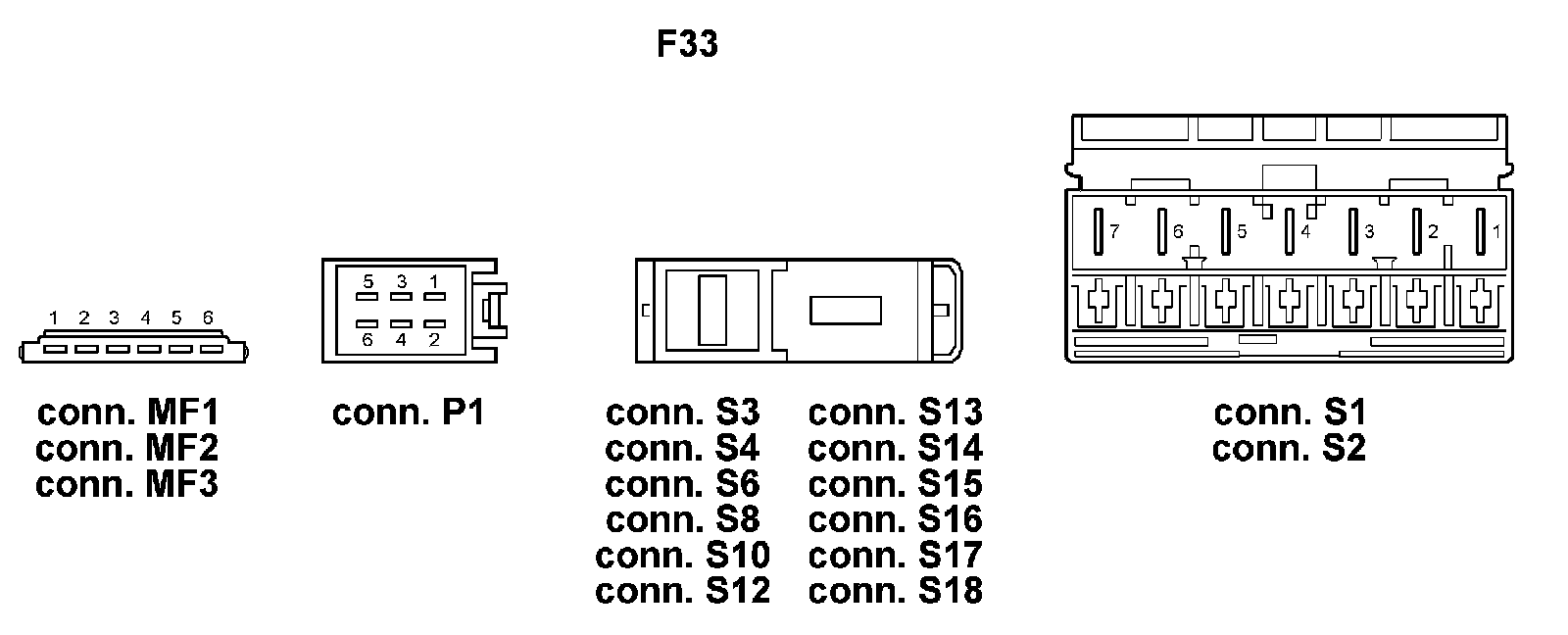

Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
