Compressor HVAC: Service and Repair

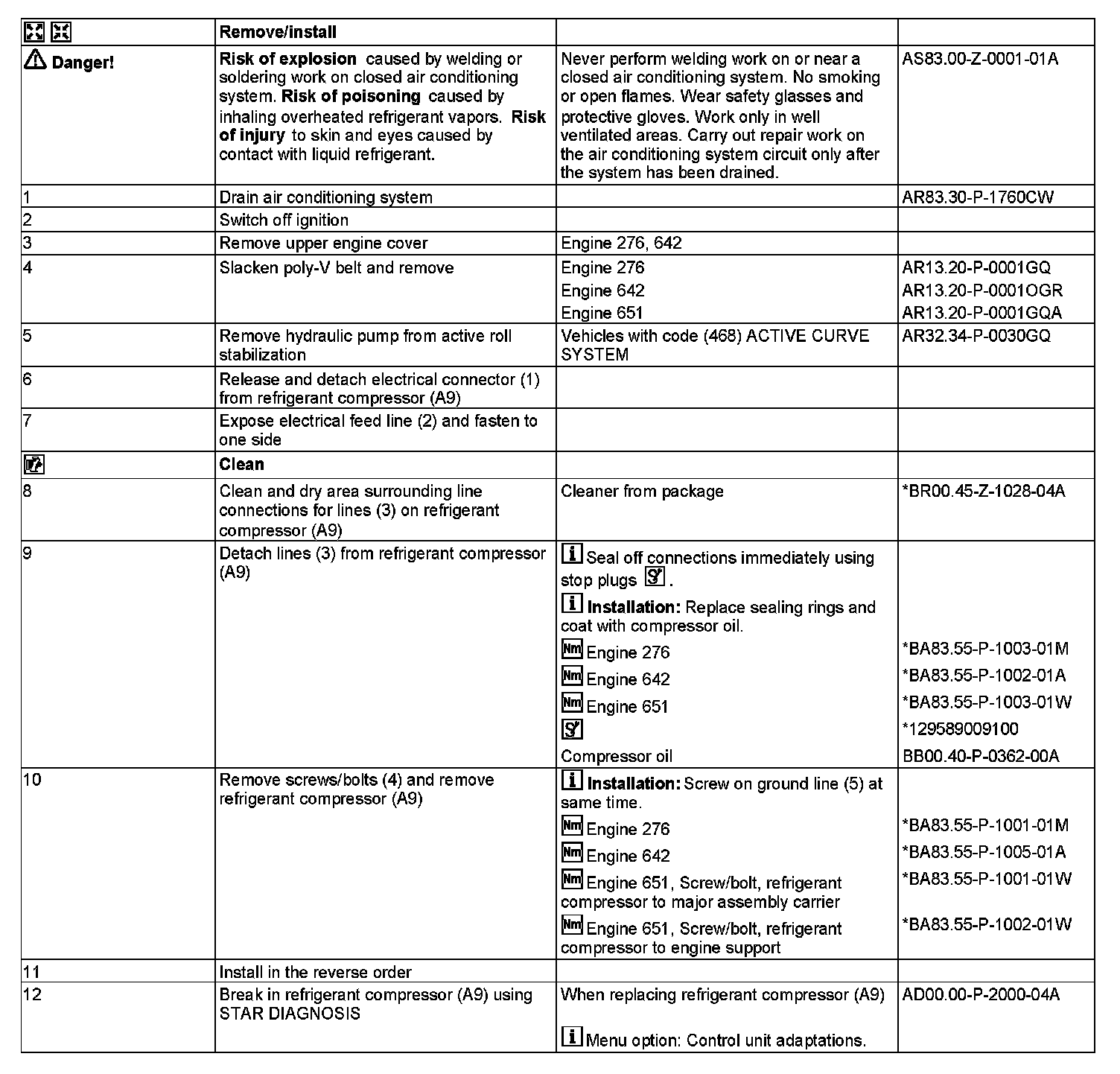

AR83.55-P-5300GQ Remove/Install Refrigerant Compressor
ENGINES 276, 642, 651 in MODEL 166

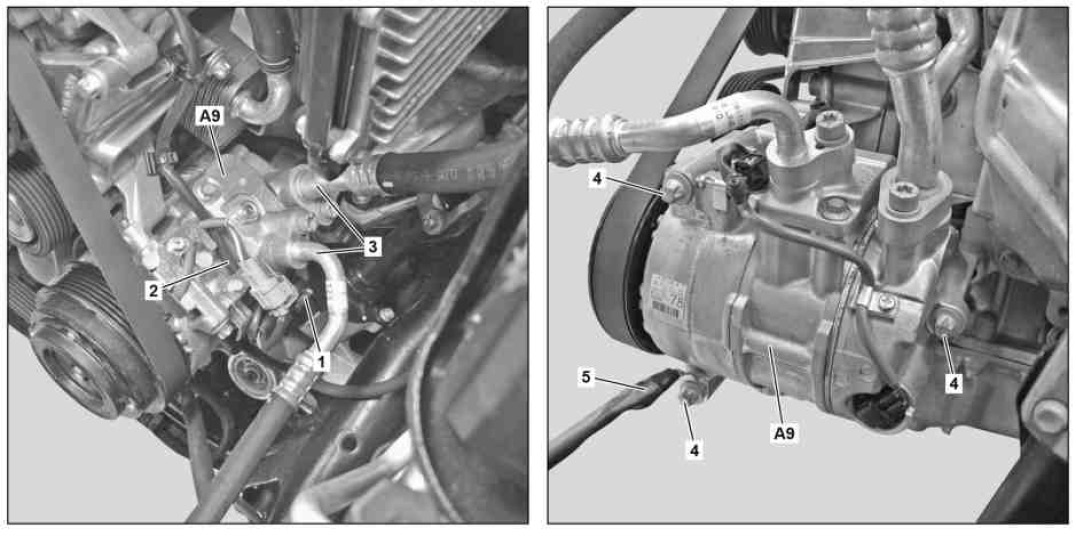

Shows model 166.057
1 Electrical connector
2 Electrical feed line
3 Cable
4 Screw
5 Ground cable
A9 AC compressor











129 589 00 91 00
Set of stop plugs
