ML 350 BLUETEC (166.024) V6-3.0L DSL Turbo (642.826)
>>
Repair and Diagnosis
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Vacuum Brake Booster
Vacuum Brake Booster
BE43.10-P-1000-01E Pneumatic Brake Booster Test Specifications

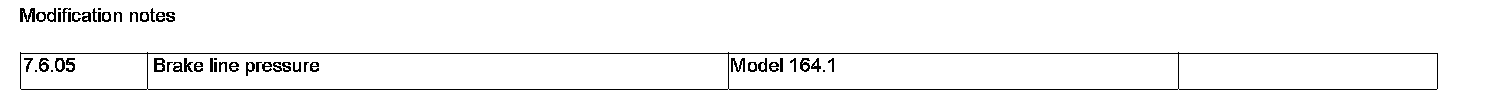

Modification Notes:

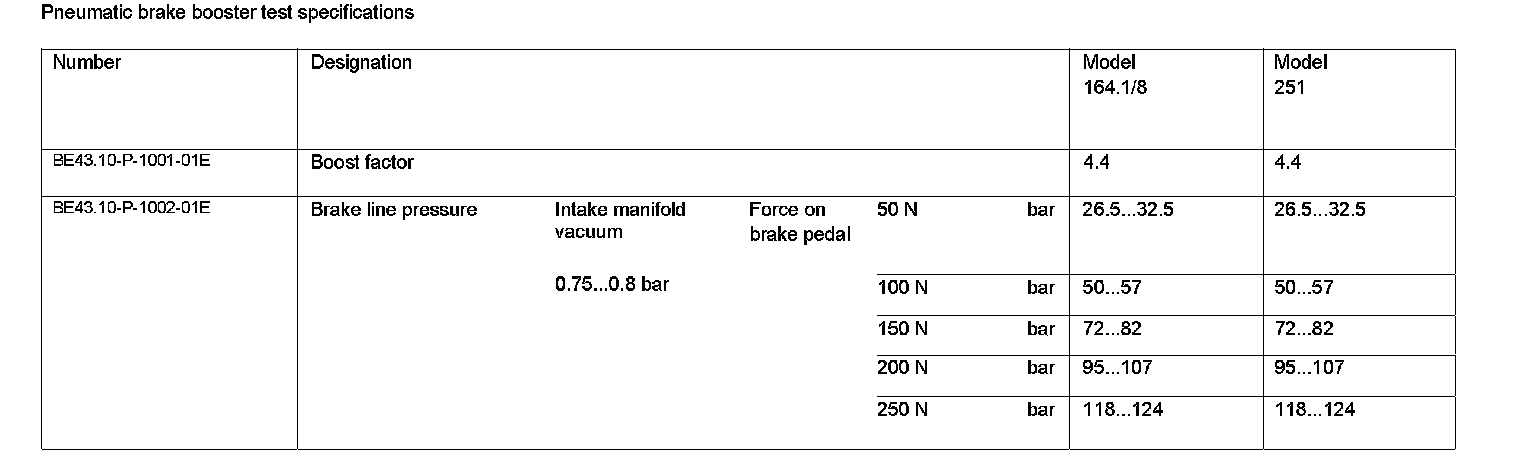

Pneumatic Brake Booster Test Specifications:
