Transmission and Drivetrain: Service and Repair

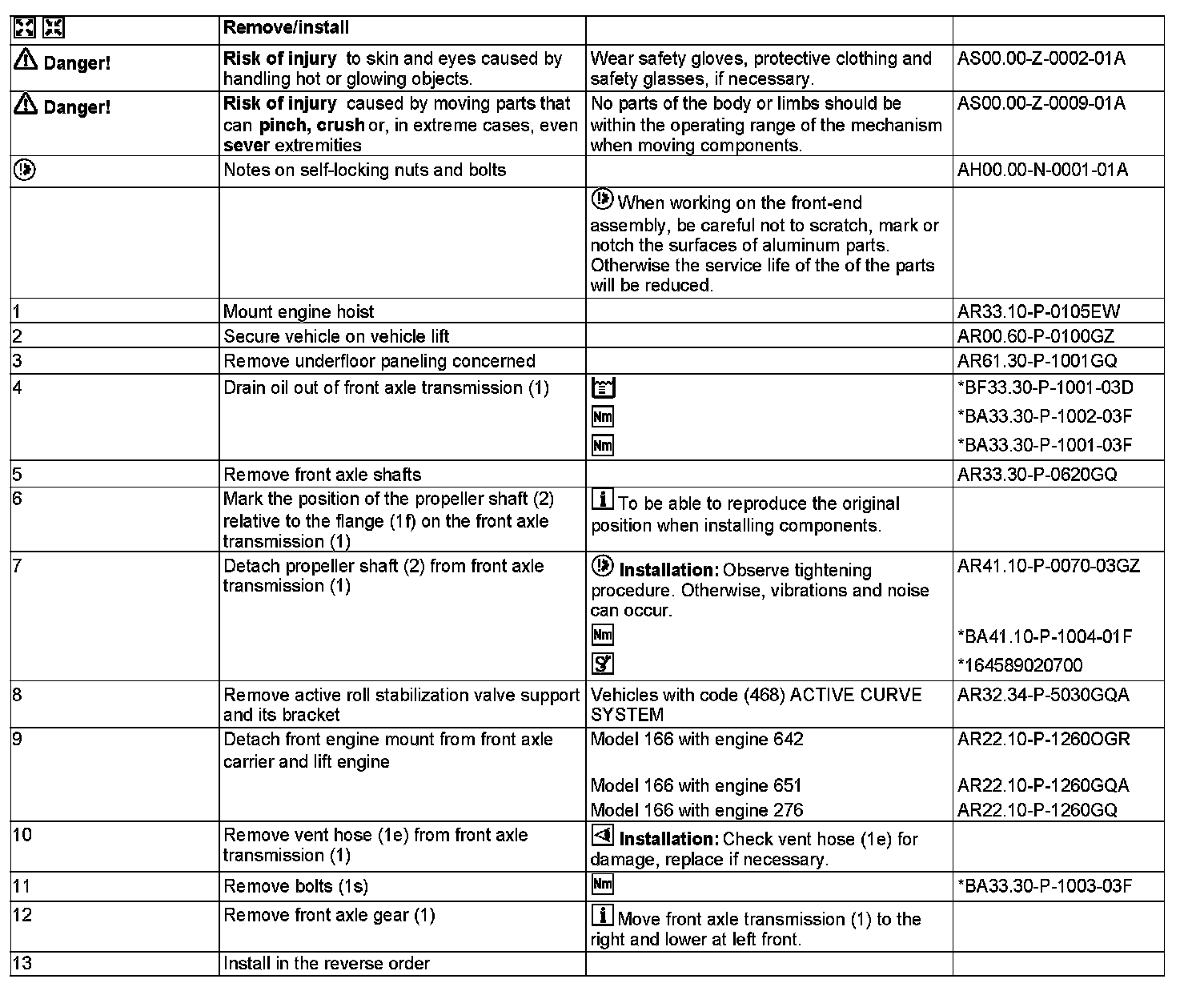

AR33.30-P-0525GQ Remove/Install Front Axle Transmission
MODEL 166 with ENGINE 276, 642, 651

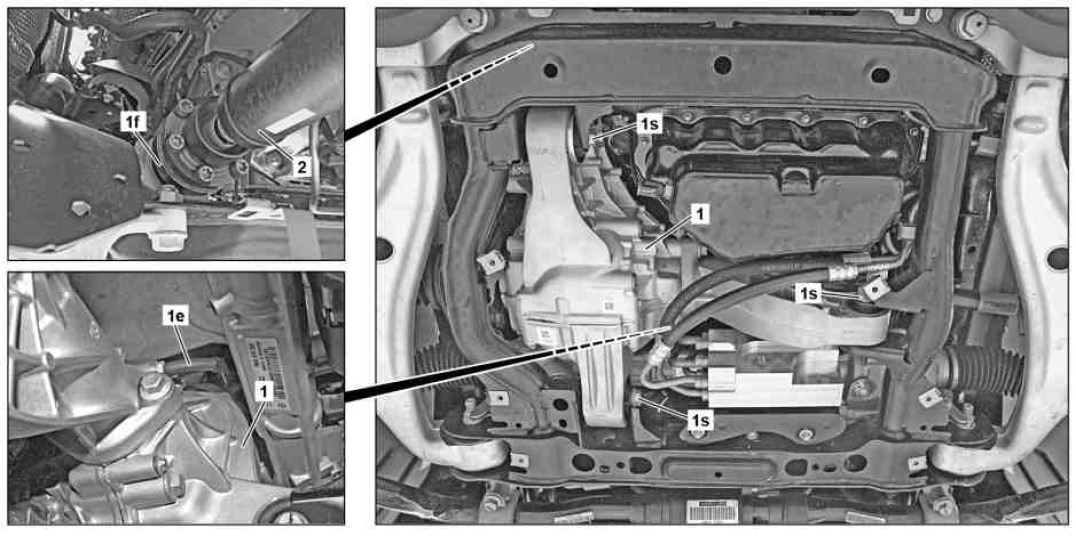

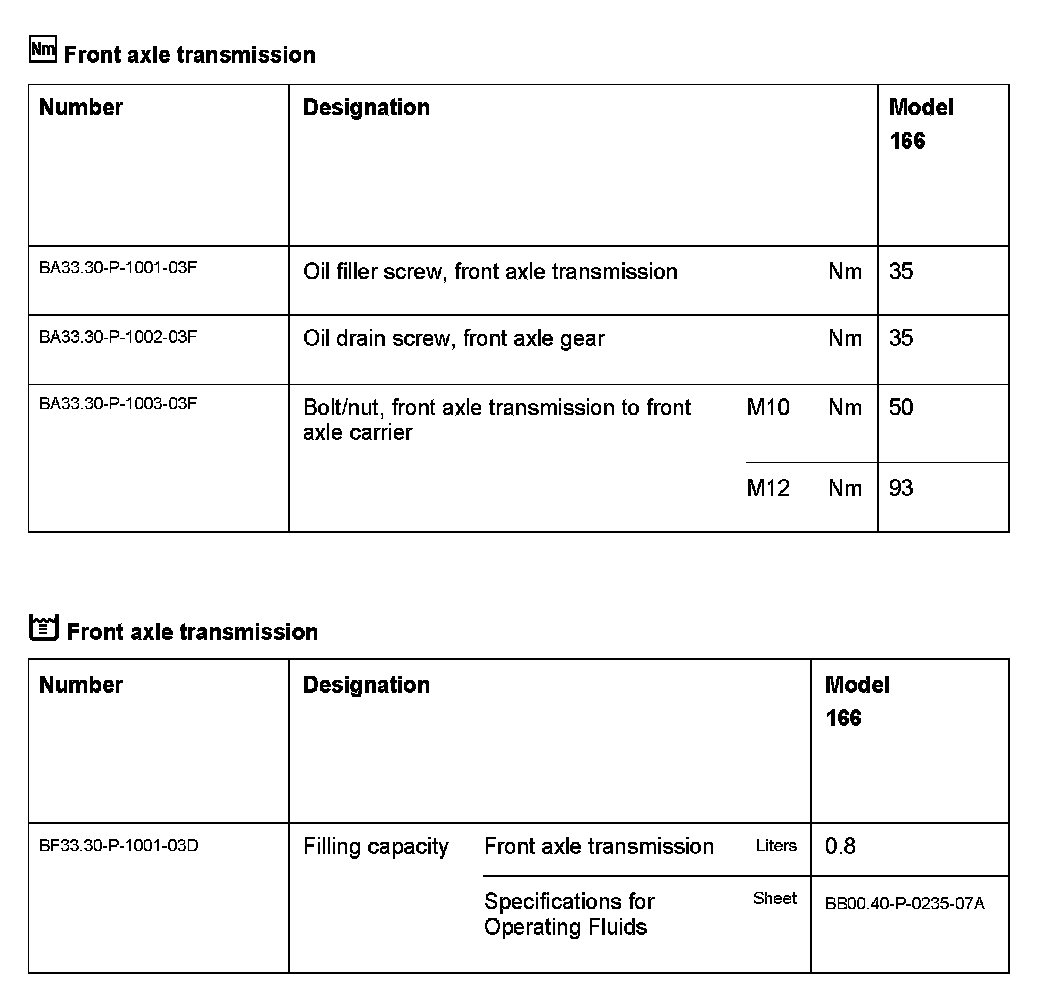

1 Front axle transmission
1e Vent hose
1f Flange
1s Screw

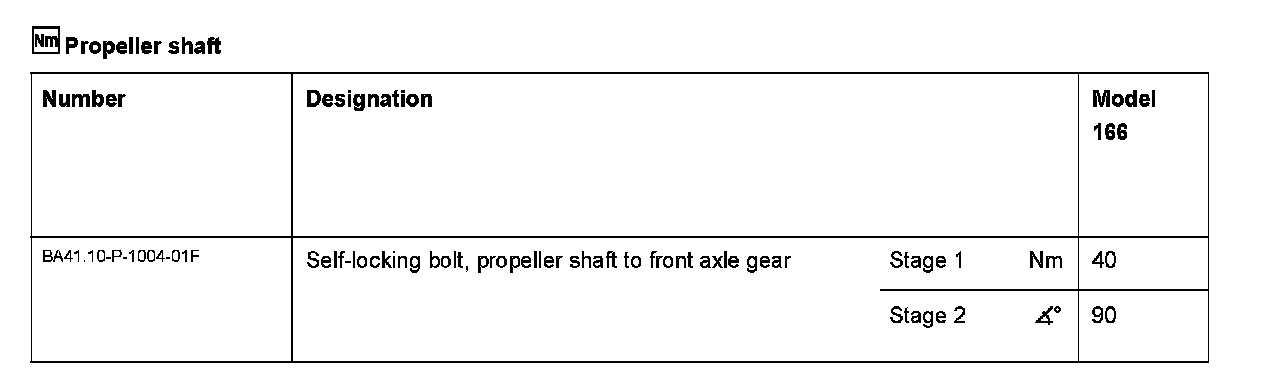

2 Propeller shaft














164 589 02 07 00
Retainer wrench
