Grille: Service and Repair
AR88.40-P-4001RT Remove/Install Radiator Grille
Component Identification:

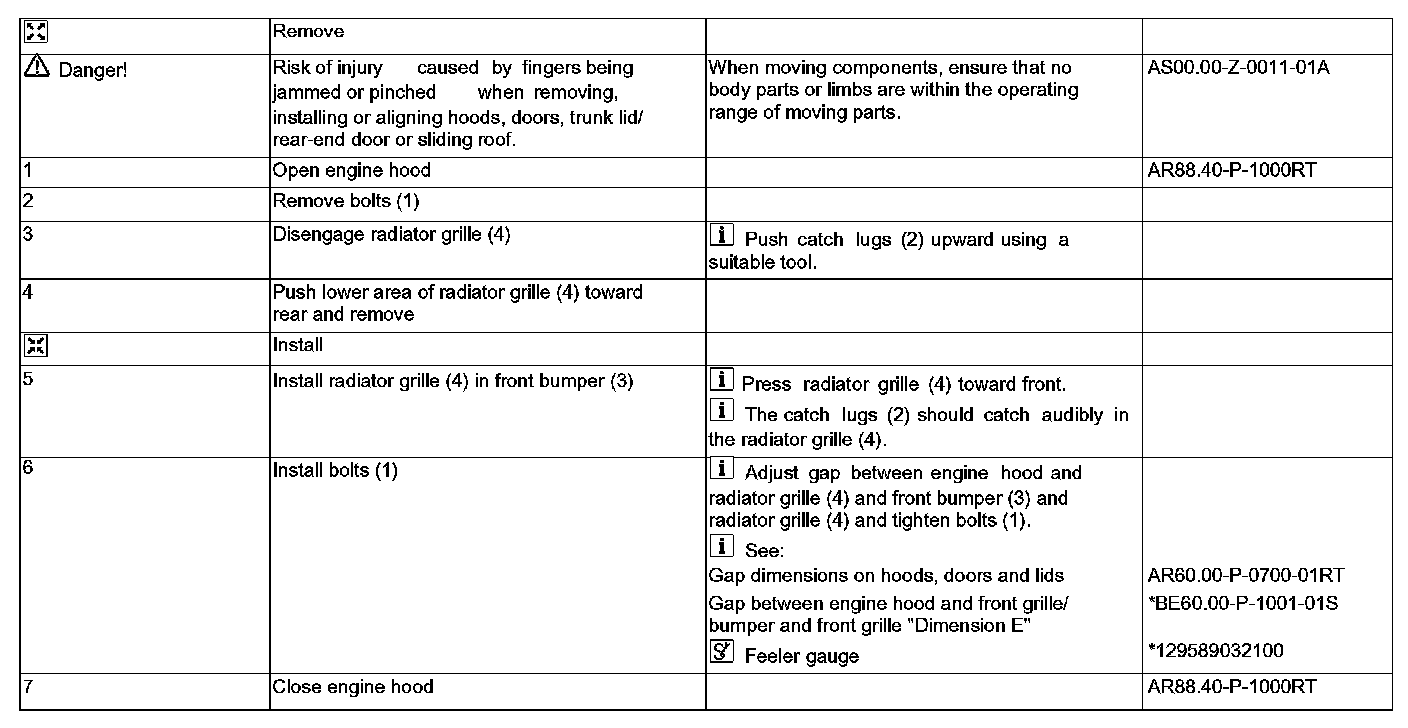

Steps 1 - 7:
Test And Adjustment Values For Gap Dimensions:

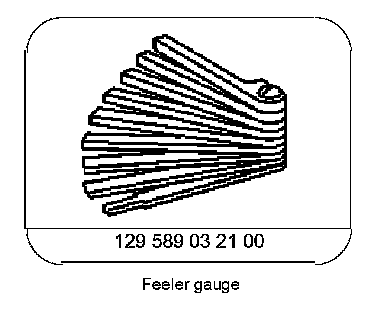

Special Tools:
