Brake Pedal Assy: Service and Repair
AR29.10-P-4597RT Remove/install brake pedal

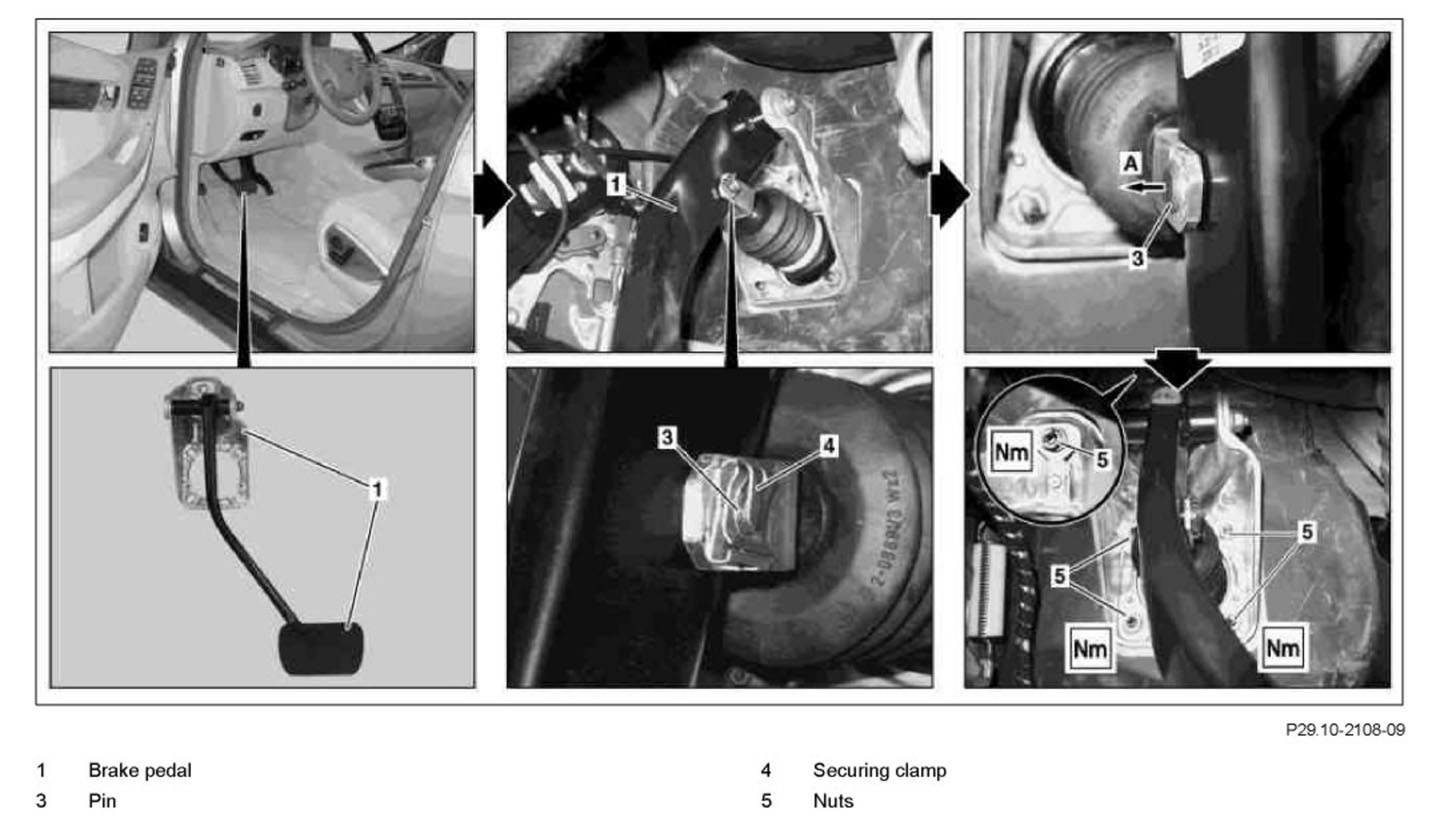

Component Identification:

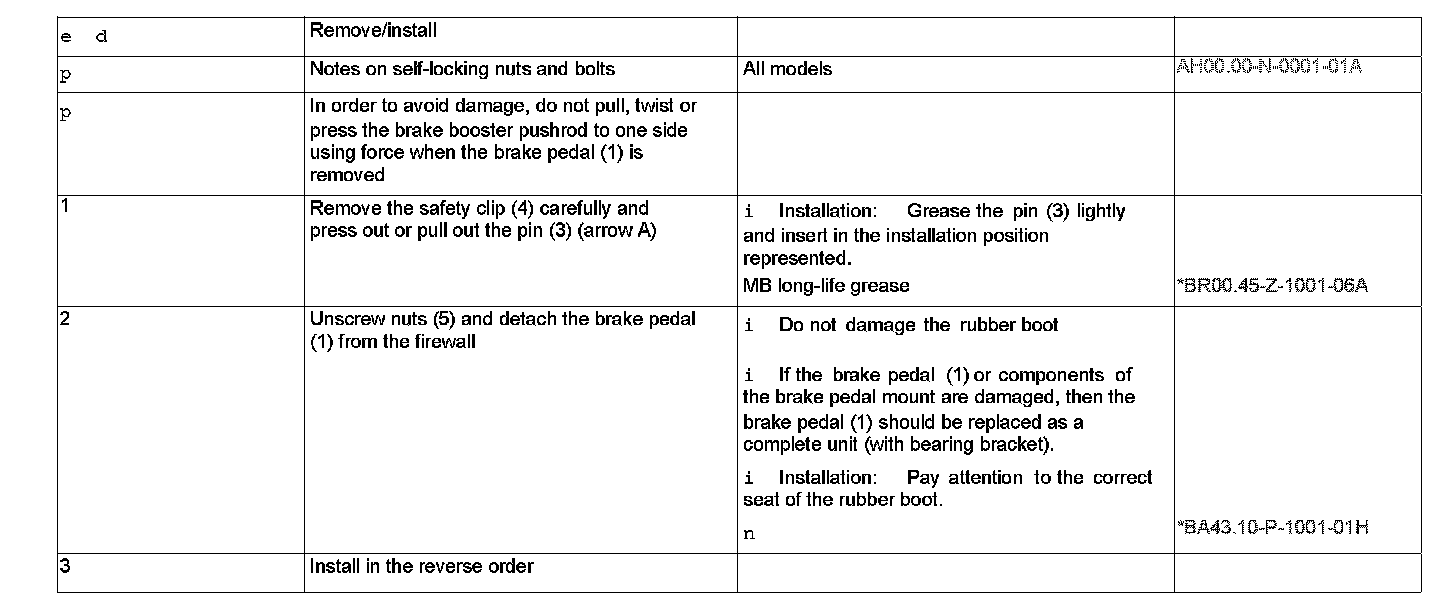

Steps 1-3:

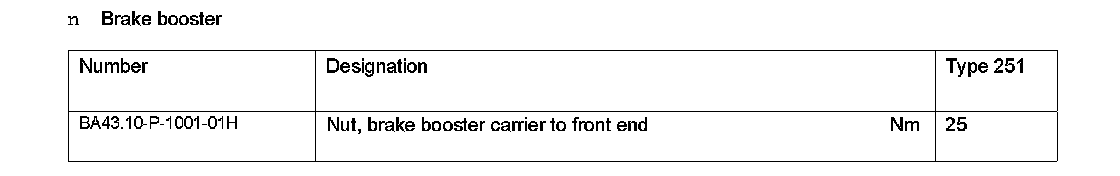

Brake booster:

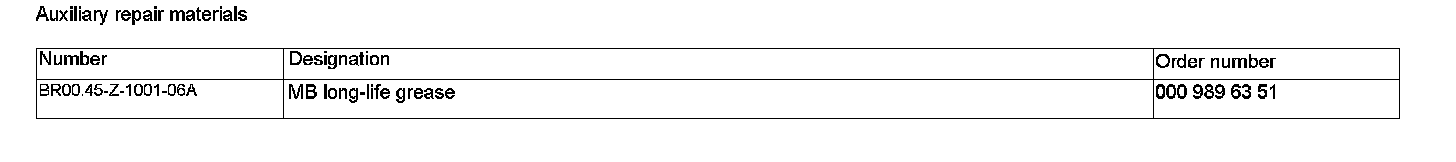

Auxiliary repair materials:
