Heater Core: Service and Repair
AR83.50-P-9110RT Remove/Install Heat Exchanger For Rear Air Conditioning
- with CODE (582) Rear air conditioner
Component Identification:

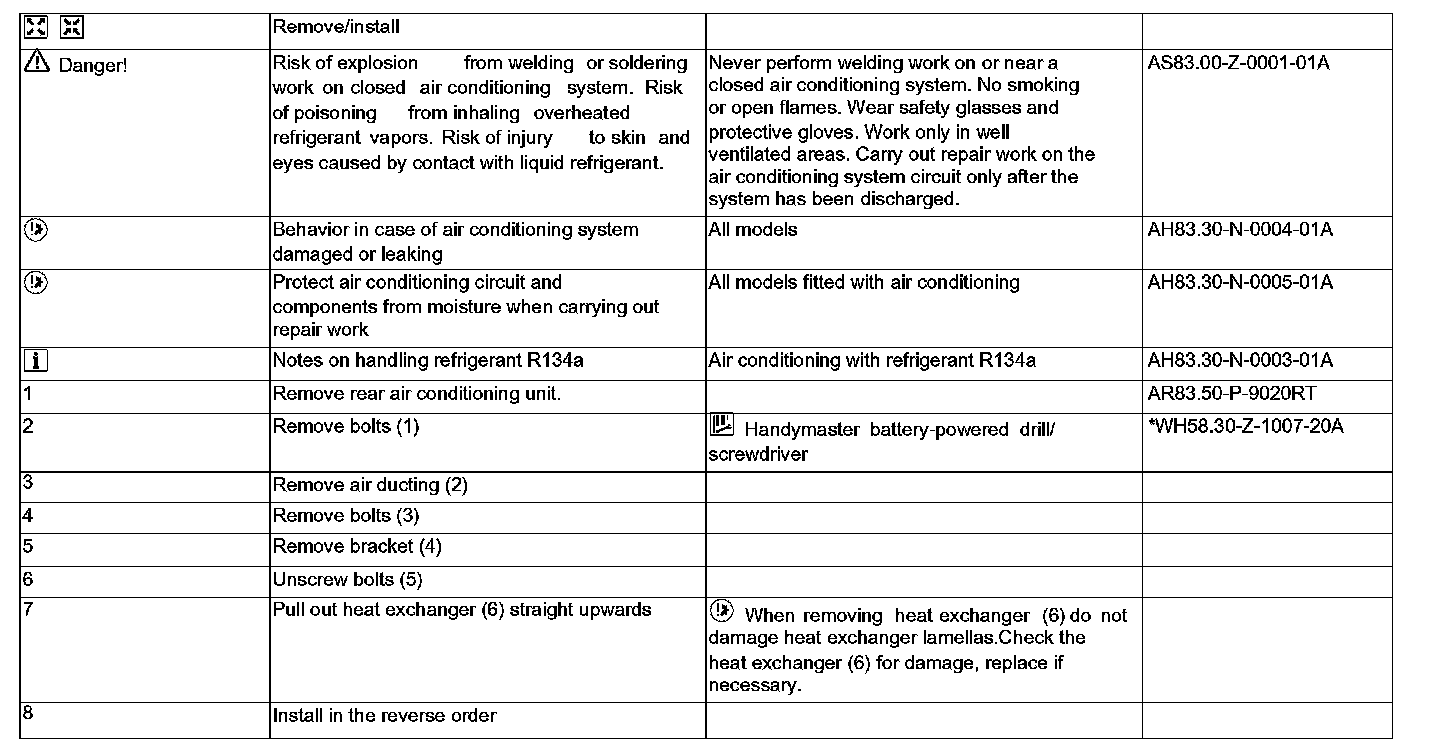

Steps 1 - 8:

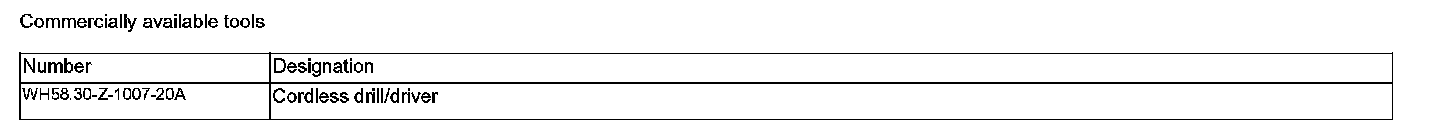

Commercially Available Tools:
AR83.50-P-9110RT Remove/Install Heat Exchanger For Rear Air Conditioning
- with CODE (582) Rear air conditioner
