Driver/Vehicle Information Display: Service and Repair

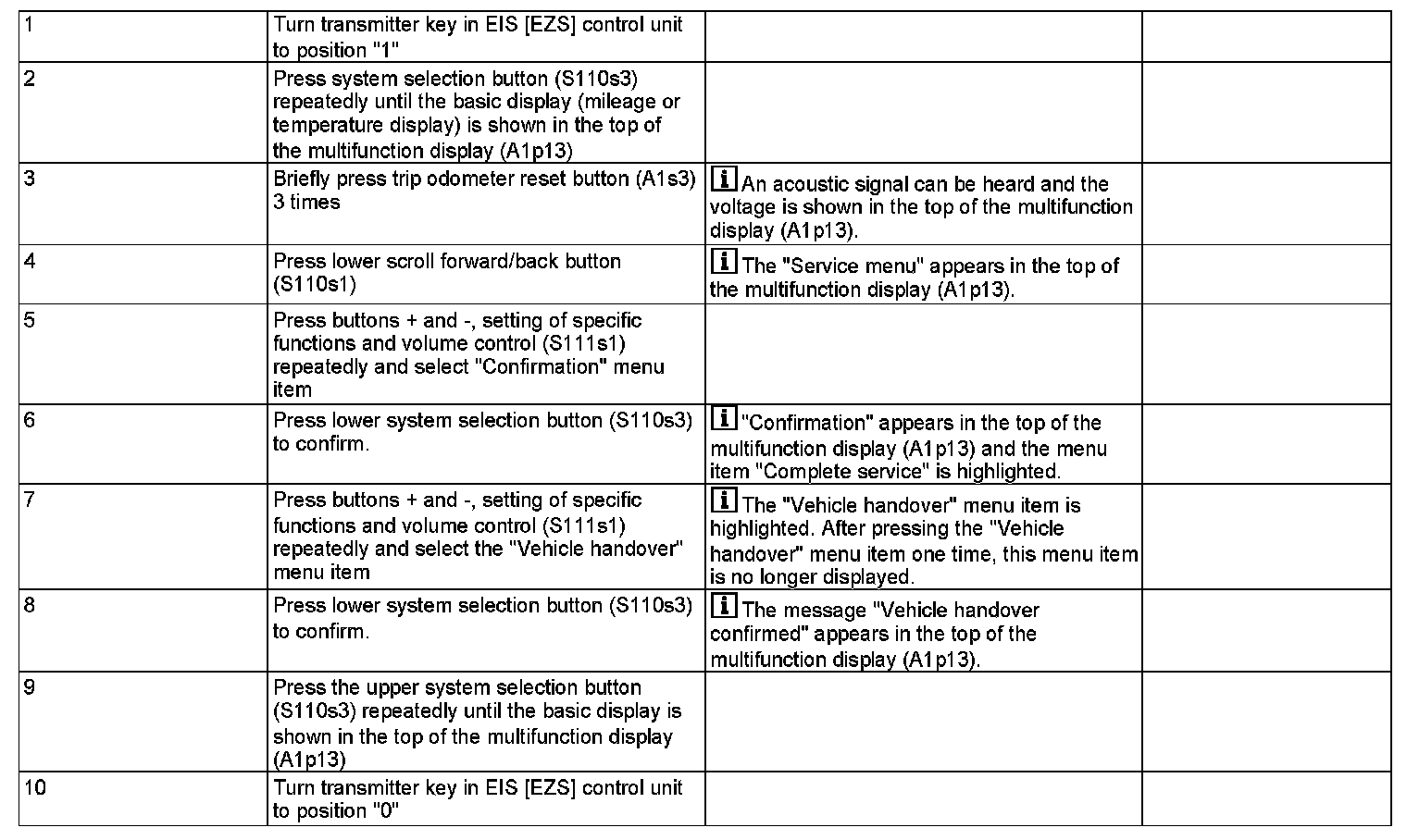

AR00.20-P-0005GZ Completing Steps For Vehicle Handover For ASSYST PLUS
- MODEL 164, 251

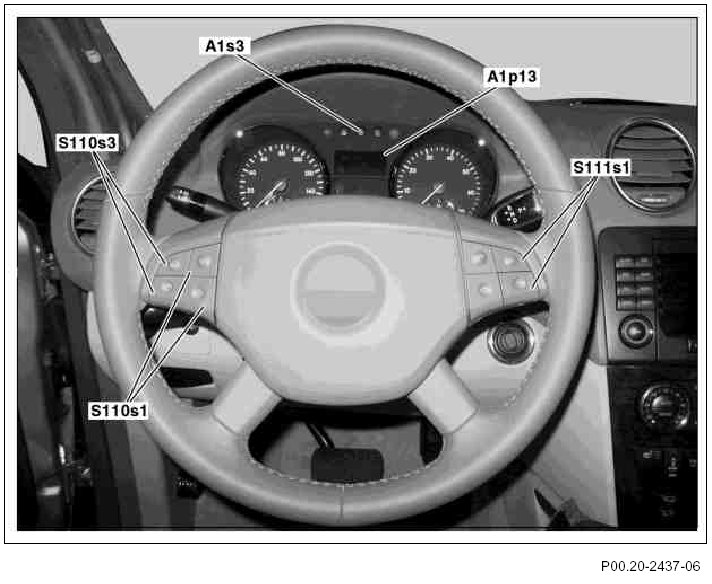

Shown on model 164.1







A1p13 Multifunction display
A1s3 Trip odometer reset button
S110s1 Scroll forward/back button
S110s3 System selection button
S111s1 Buttons + and - for setting specific functions and volume control
