AR86.30-S-0050JC Remove/Install Hot Water Boiler

AR86.30-S-0050JC Remove/Install Hot Water Boiler

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

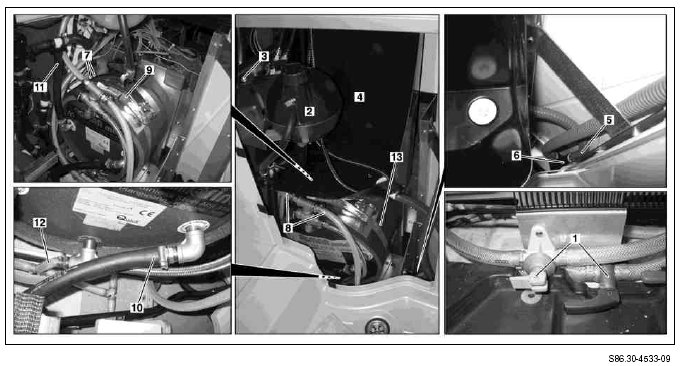

1 Shutoff valve
2 Expansion reservoir
3 Screw
4 Collection bowl
5 Hose
6 T-piece
7 Electrical connectors
8 Hoses
9 Tensioning strap
10 Hose
11 Hose
12 Hose
13 Hot water boiler










115 589 03 59 00, Long wedge
