Heater Core: Service and Repair

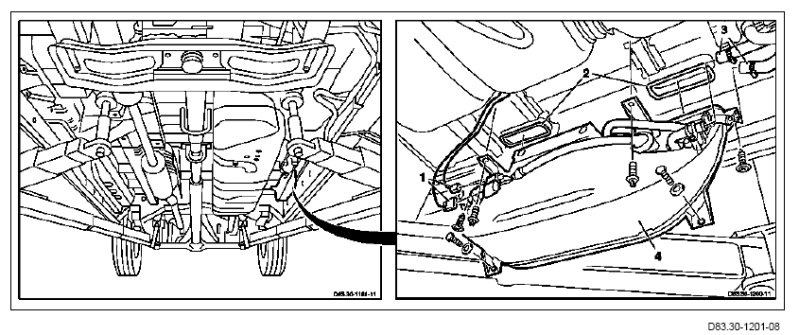

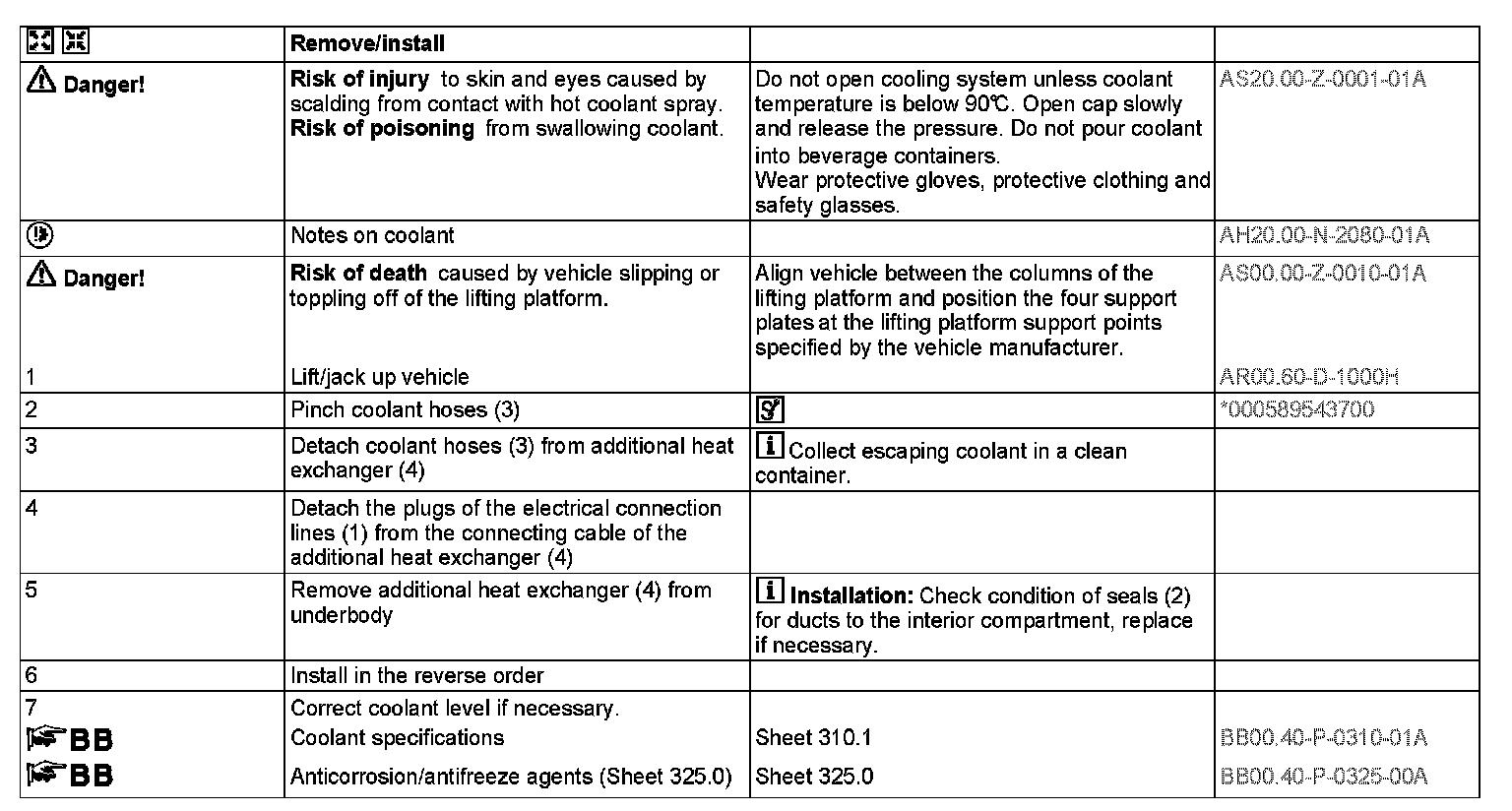

AR83.60-D-7215A Remove/Install Additional Heat Exchanger

- with CODE (H13) Additional heat exchanger in load compartment







1 Plug for electrical connection line
2 Seal
3 Coolant hose
4 Additional heat exchanger







000 589 54 37 00, Clamping device
