Home >> Mercedes Benz Truck >> 2012 >> Sprinter 3500 Cab (906.153) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Belt

Drive Belt

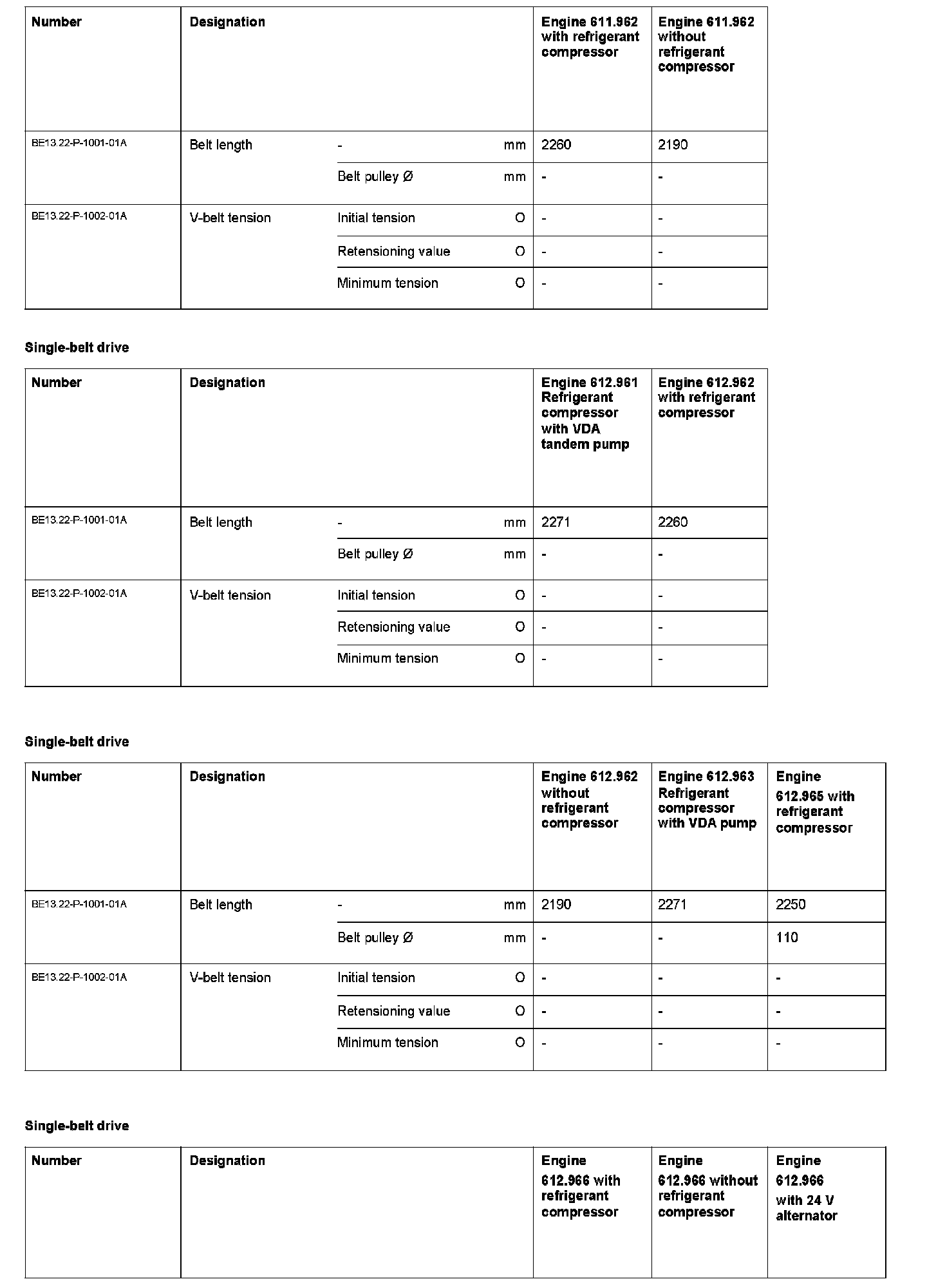

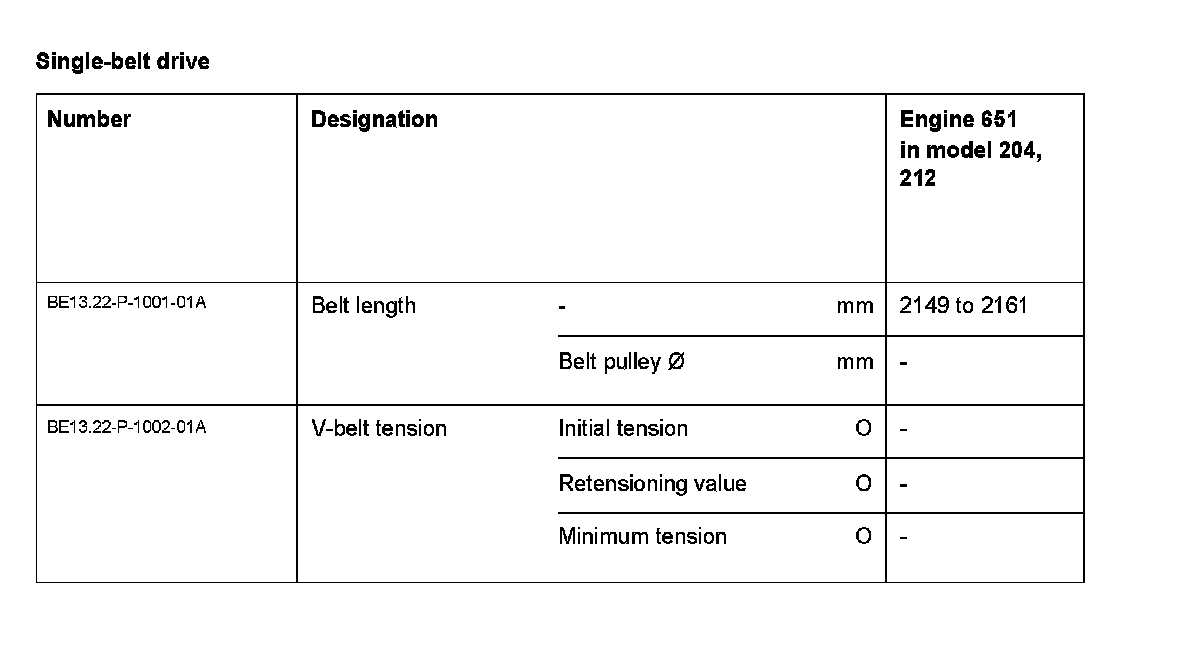

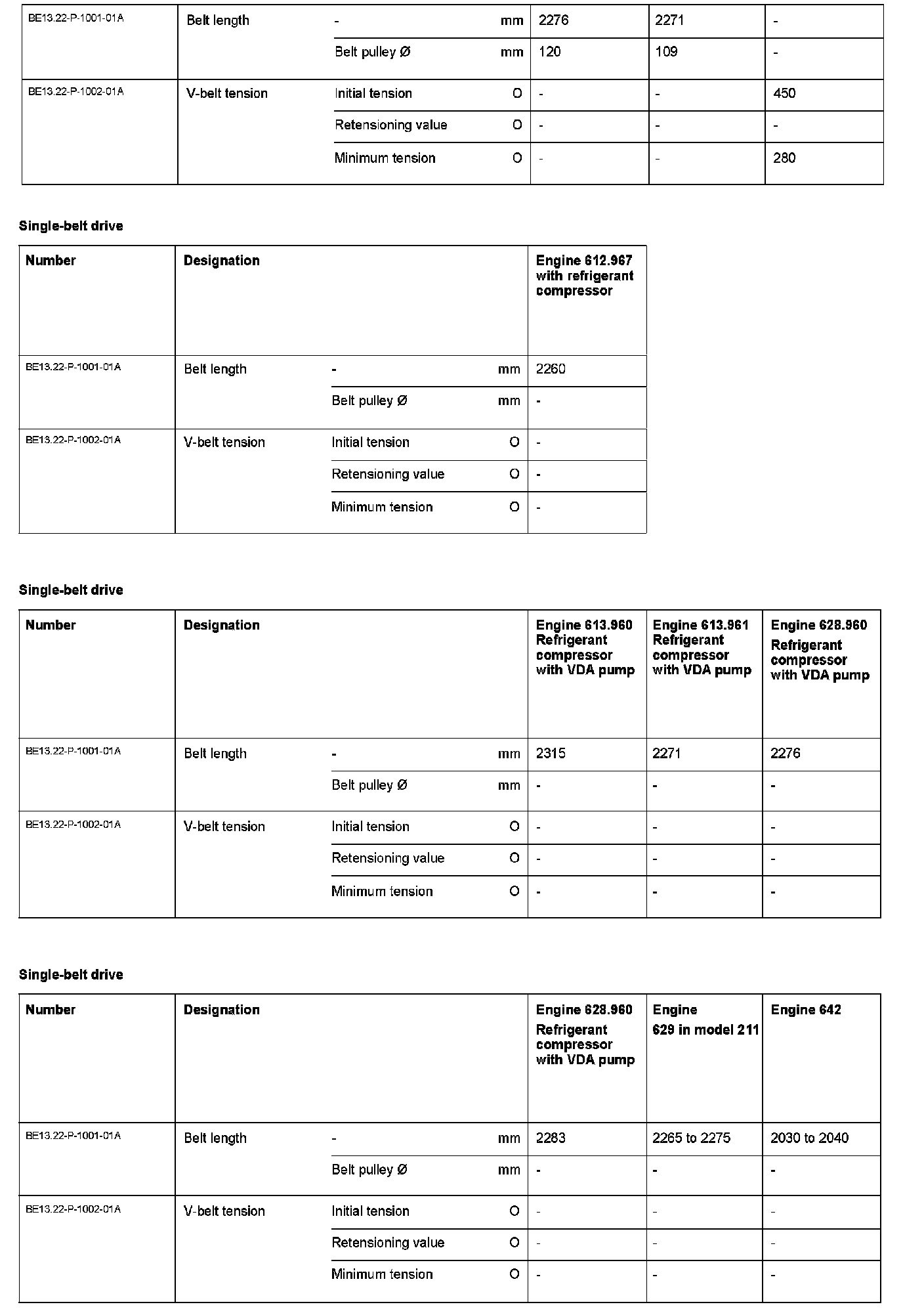

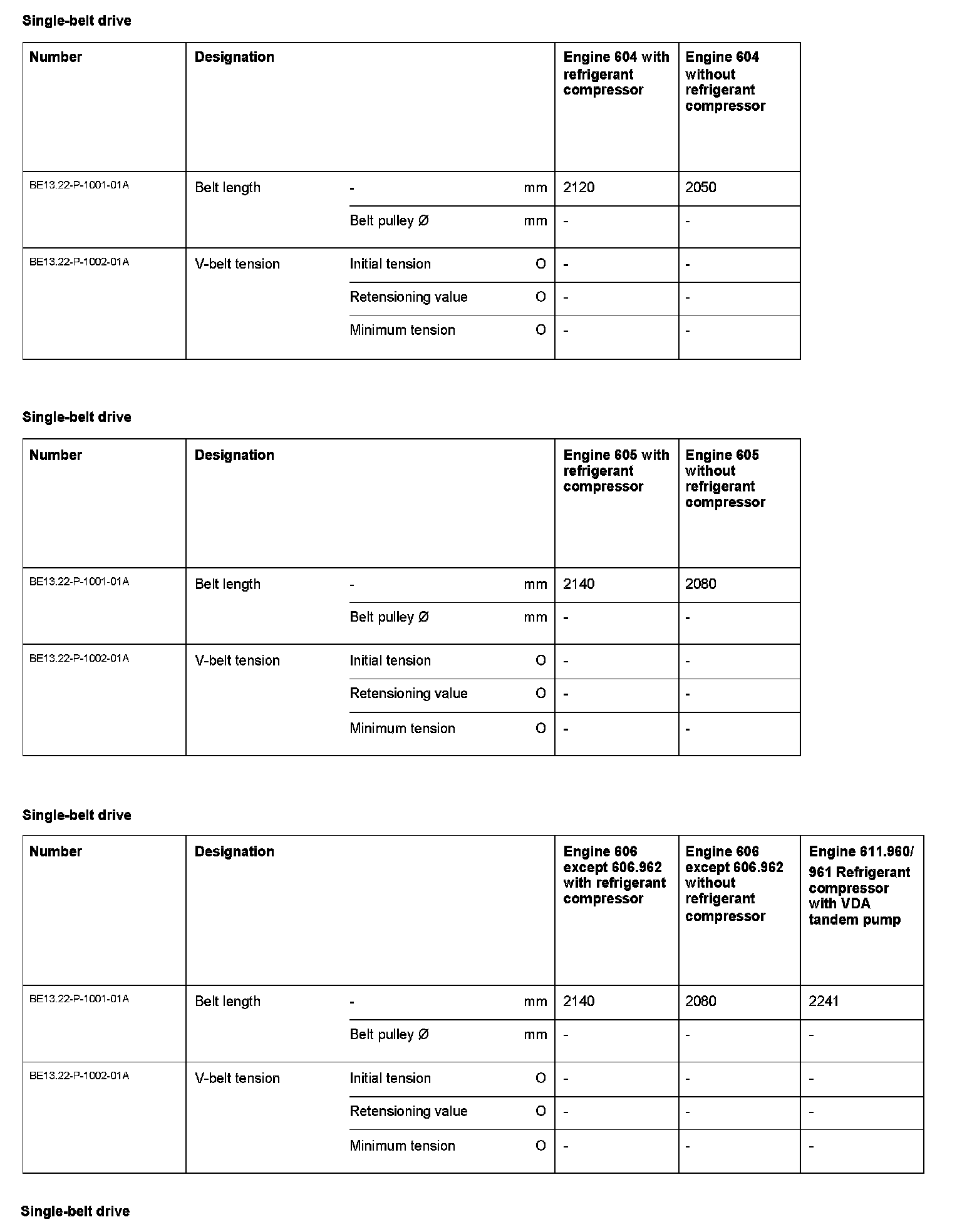

BE13.22-P-1000-01A Single-belt Drive
Engine 604, 605, 606, 611, 612, 613, 628, 629, 642, 651
