Hose/Line HVAC: Service and Repair

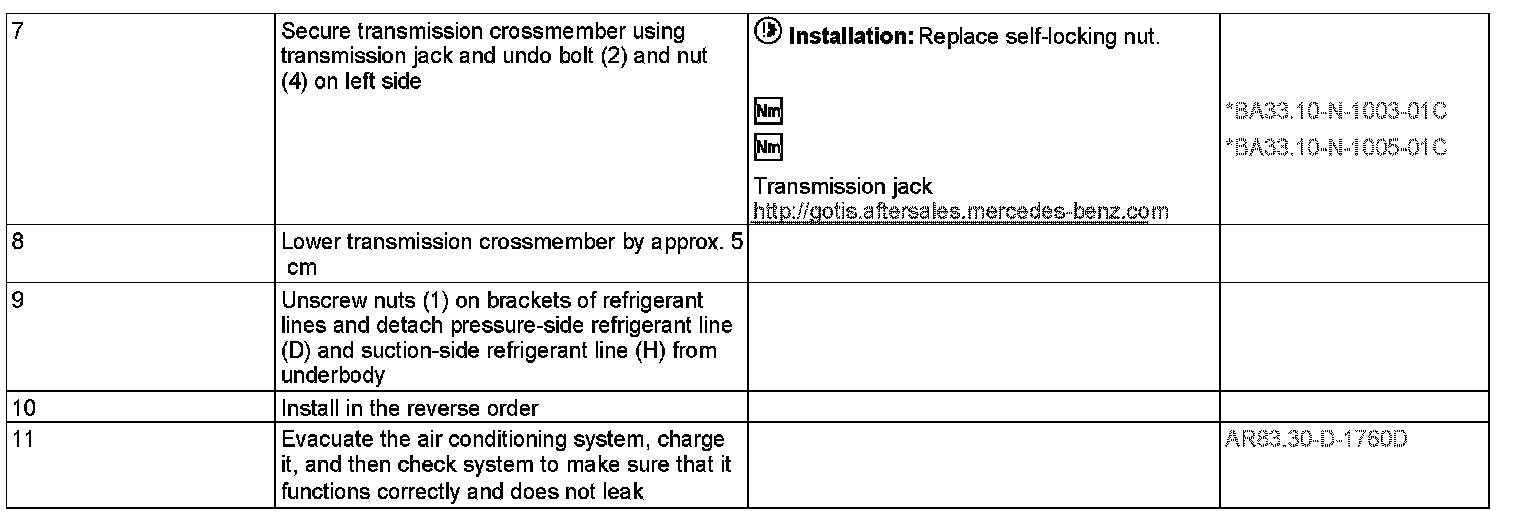

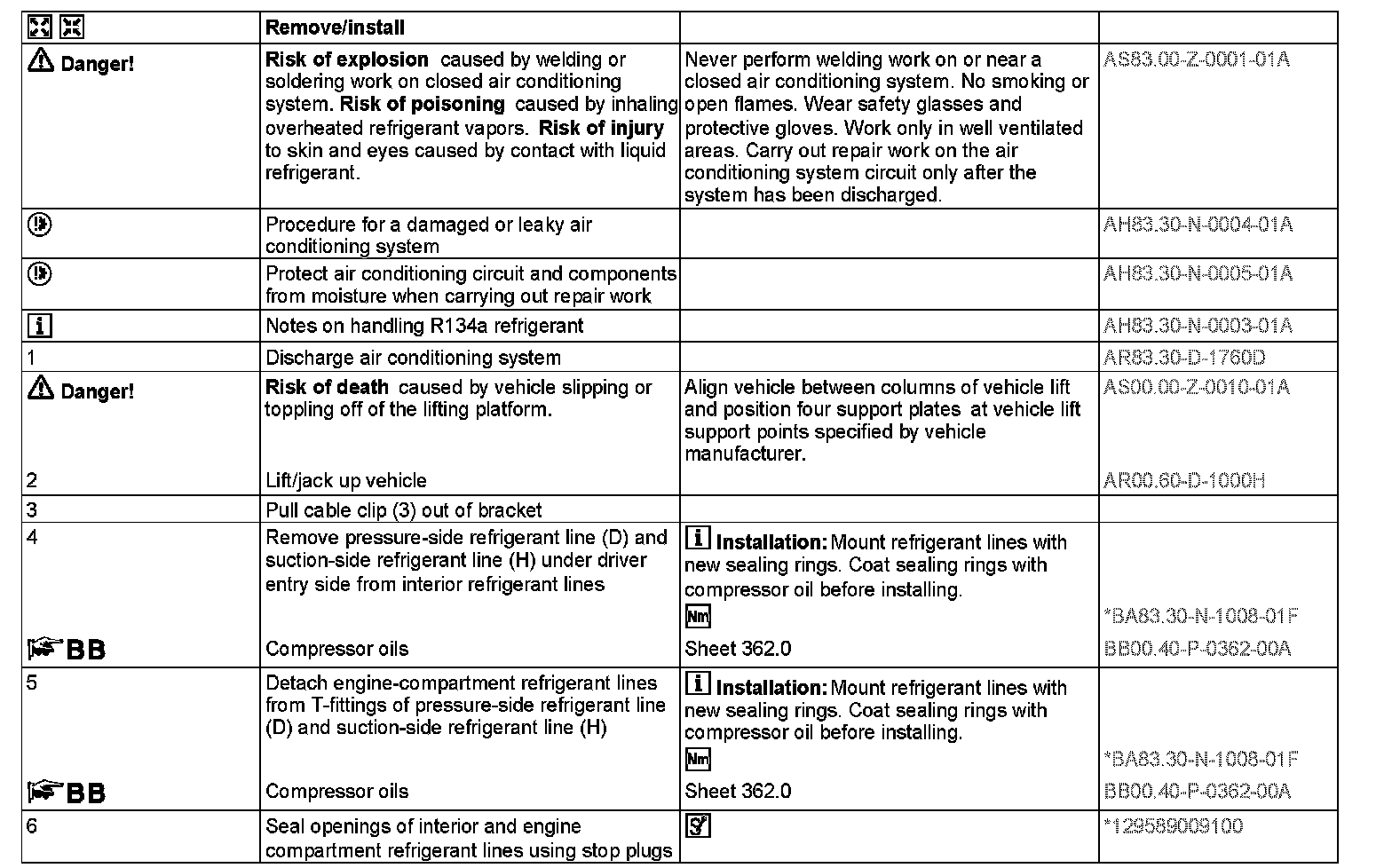

AR83.50-D-6700A Remove/Install Refrigerant Lines In Underfloor/Engine Compartment

- with CODE (HH7) Additional air conditioning in rear







1 Nut
2 Screw
3 Cable clip
4 Nut
D Refrigerant line pressure side
H Refrigerant line intake side






















129 589 00 91 00, Set of stop plugs
