Home >> Mercedes Benz >> 1982 >> 240D (123.123) L4-2.4L DSL (616.912) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

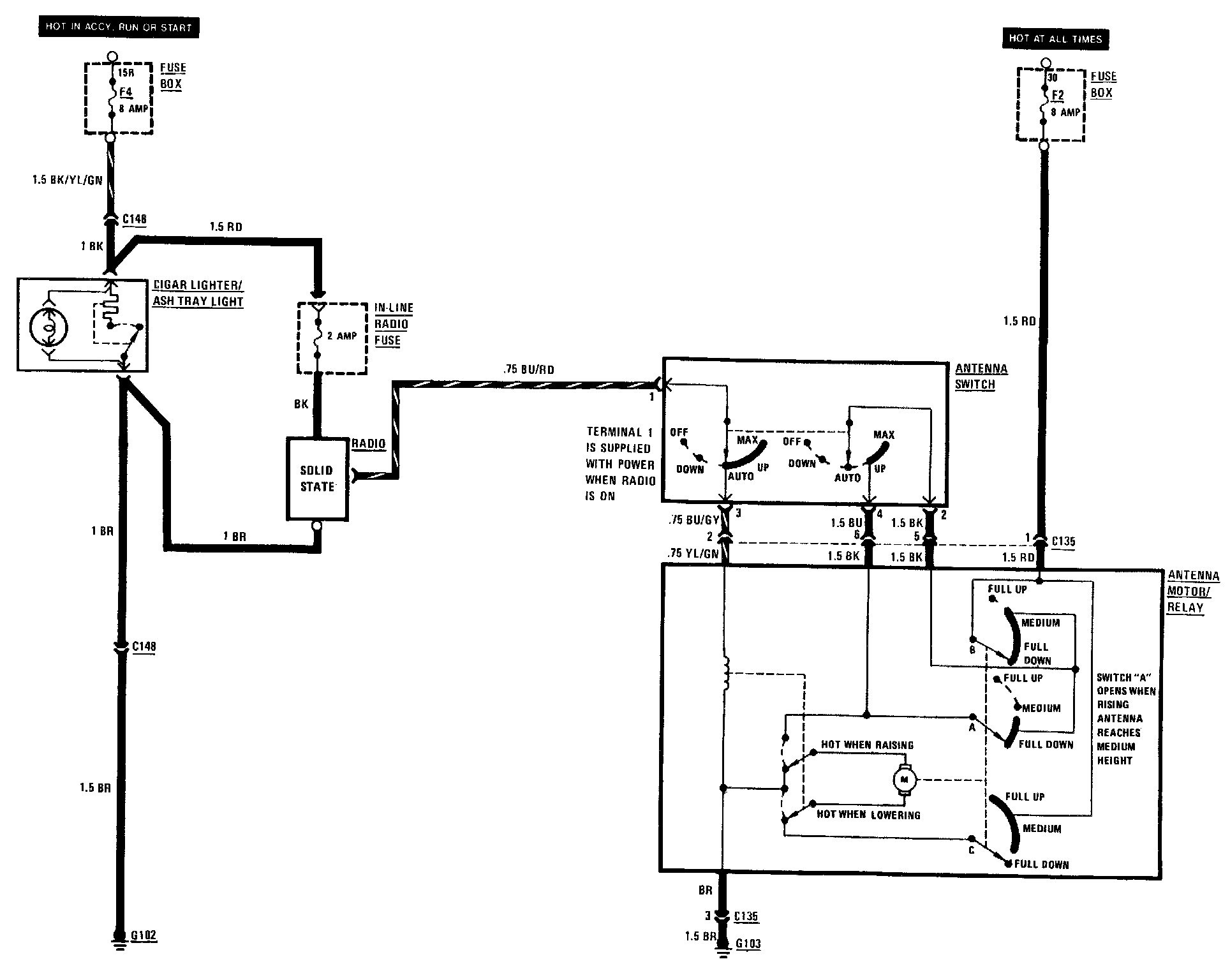

Cigar Lighter/Radio/Automatic Antenna:
