Auxiliary Shaft

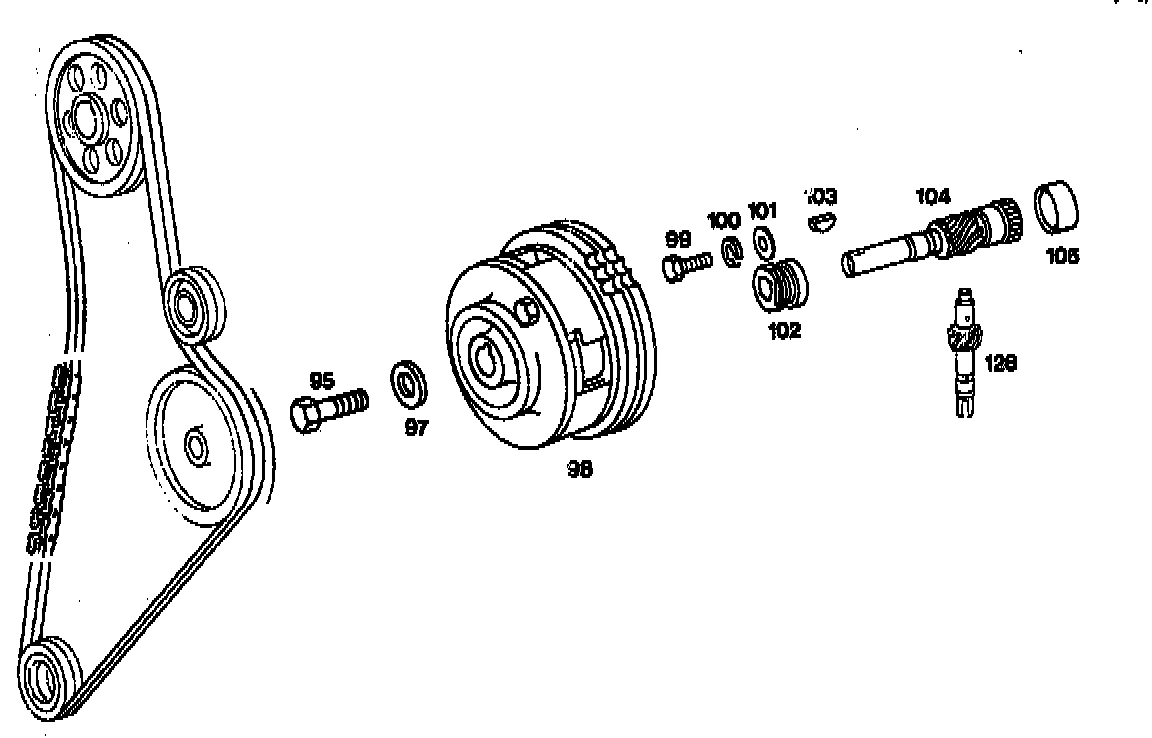

Intermediate gear shaft and injection timing device

Injection timing device, 3rd version
95 Bolt M10 x 45
97 Washer
98 Injection timing device
99 Bolt M6 x 12
100 Lock washer B 6
101 Retaining washer
102 Bearing bushing front
103 Woodruff key
104 Intermediate gear shaft
105 Bearing bushing rear
126 Helical gear
