Camshaft, Engine

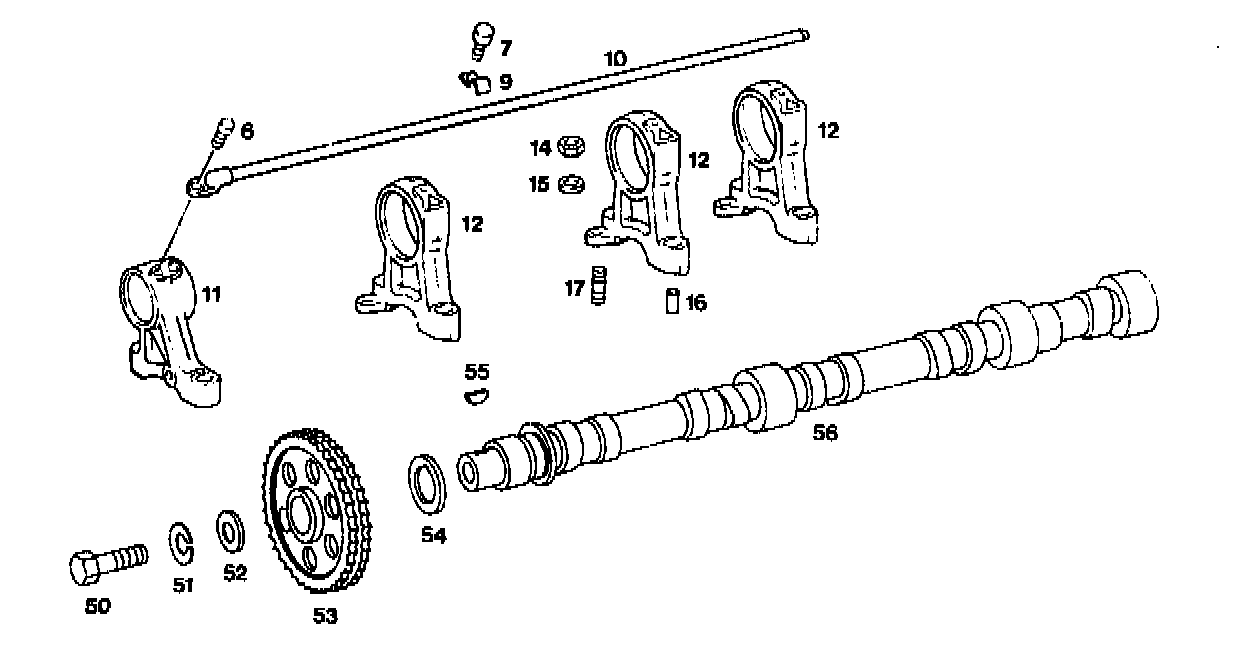

Camshaft and camshaft bearings

Layout of engine 617
Engines 615 and 616 have one bearing less

6 Screw assembly M 6 x 12
7 3 screw assemblies M 5 x 10
9 3 clips
10 Oil pipe
11 Camshaft bearing, cranking end
12 Camshaft bearing
14 4 nuts
15 4 washers 8.4
16 8 straight pins 8 x 8
17 4 studs M8 x 18
50 Wasted bolt M 14 x 1.5 x 40
51 Lock washer 8 14
12 Washer
53 Camshaft sprocket
54 Shim
55 Woodruff key
56 Camshaft
