Piston, Engine

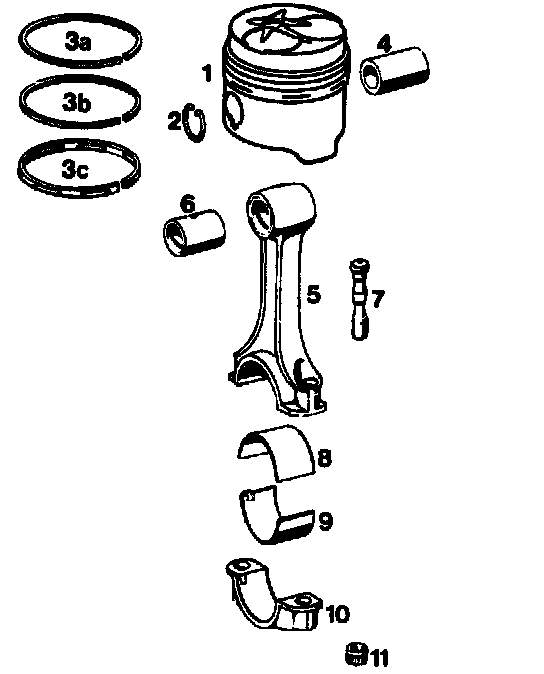

Piston and connecting rod







1 Piston
2 2 Piston pin snap rings
3a Straight face ring 3 mm
3b Straight-face ring 2 mm
3c Slotted oil-control ring with spring expander
4 Piston pin
5 Connecting rod
6 Small-end bushing
7 2 clamp bolts
8 Big-end bearing, top and bottom halves
10 Bearing cap
11 2 clamp nuts
