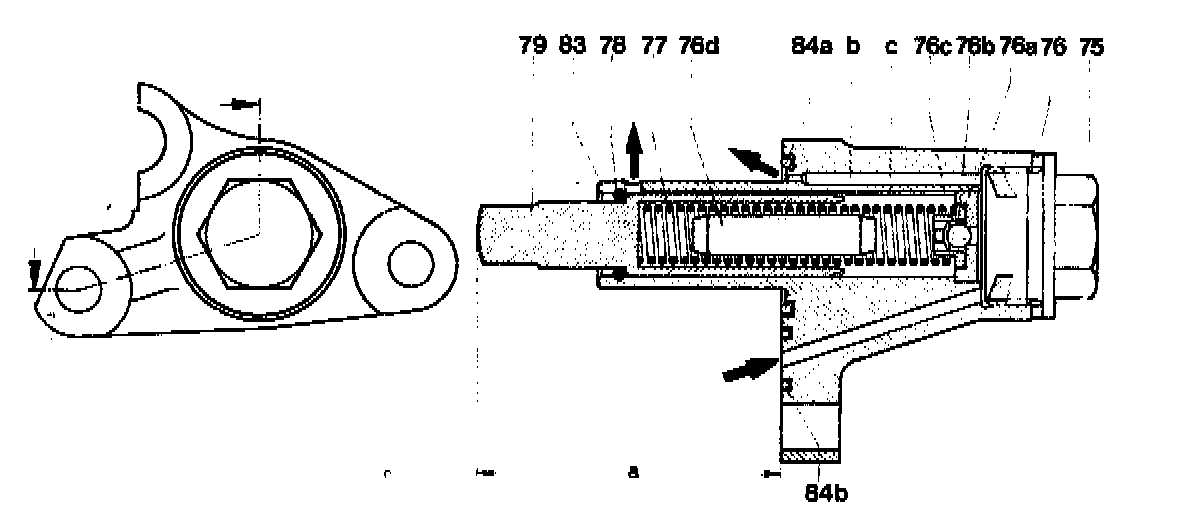

Timing Chain Tensioner

75 Screw plug
76 Sealing ring
76a Ball bearing
76b Ball
76c Ball cage
77 Compression spring
78 Snap ring
79 Thrust pin
83 Chain tensioner cage
84a O-ring
84b O-ring
a 74 mm
b Return hole
c Breather port
