Oil Pan, Engine

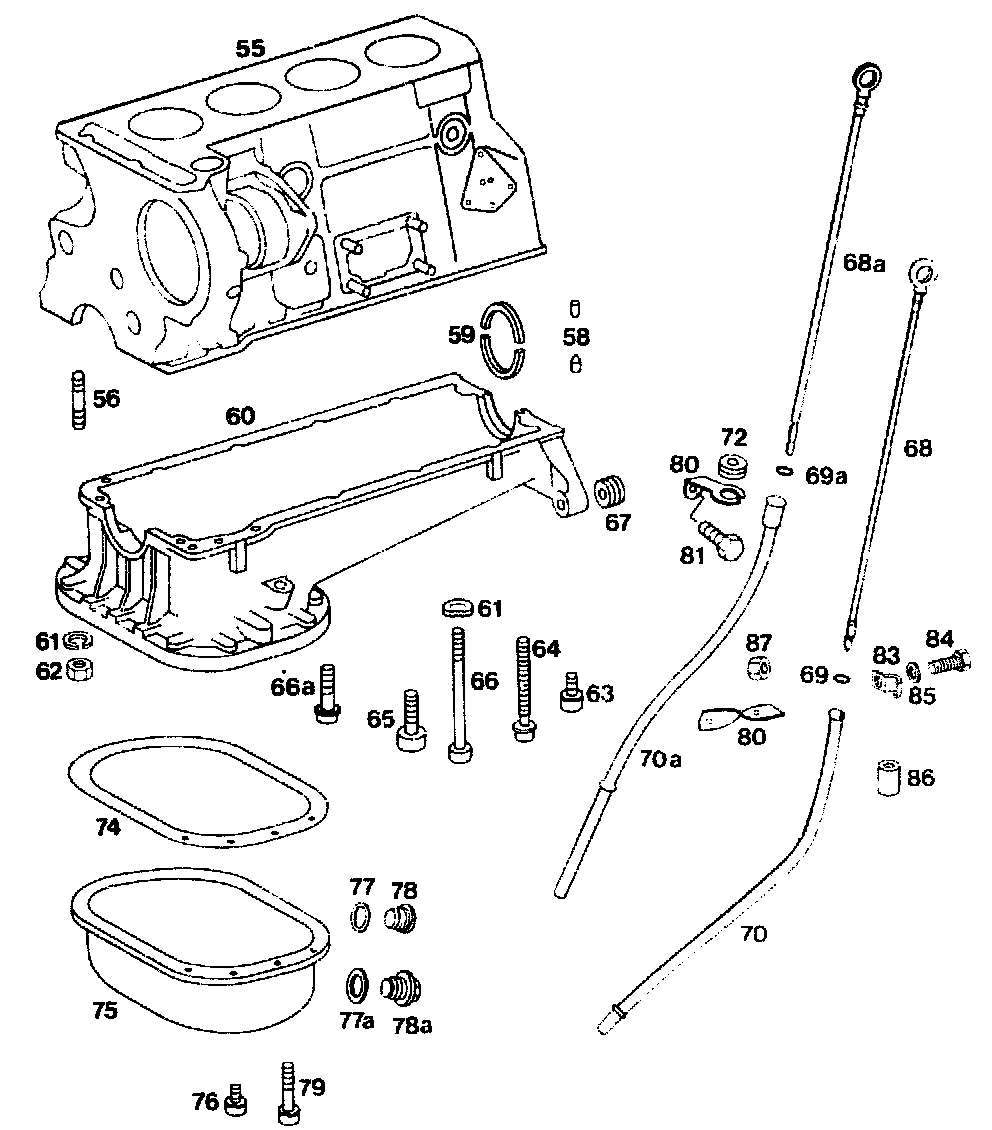

Crankcase and oil pan





55 Crankcase
56 2 bolts M 8 x 25
58 Retaining pin
59 Radial seal, crankshaft
60 Upper part of oil pan
61 4 spring washers B 8
62 2 nuts M8
63 14 screw assemblies M 6 x 15
(18 for engine 617.910,16 for 617.912)
64 2 screw assemblies M 6 x 60
65 2 screw assemblies M 6 x 30
66 2 bolts M 8 x 95
66a 2 bolts M 8 x 25
67 2 thread inserts 10/14 x 20
68 Oil dipstick (engines 615.912/913, 616.916,617.910)
68a Oil dipstick (engines 615.940/941, 616.912, 617.912)
69 O-ring (engines 615.912/913, 616.916,617.910)
69a O-ring (engines 615.940/941, 616.912, 617.912)
79 Oil dipstick guide tube (engines 615.912/913,616.916, 617.910)
70a Oil dipstick guide tube (engines 615.940/941, 616.912, 617.912)
71 Bracket for oil dipstick guide tube
72 Rubber grommet
74 Gasket
75 Lower part of oil pan
76 Screw assembly (14 for engines 615.912/913, 616.916, 617.910, and 17 for engines 615.940/941, 616.912, 617.912)
77 Sealing ring C 26 x 32 (1st version)
77a Sealing ring A 12 x 17 (2nd version)
78 Oil drain plug (1st version)
78a Oil drain plug M 12 (2nd version)
79 3 screw assemblies M 6 x 30(engines 615.912/913, 616.916)
80 Bracket for oil dipstick guide tube
81 Bolt M 8 x 12
82 Spring washer A B
83 Clamp 1 x 18
84 Bolt M 6 x 8
85 Washer A 6.4
86 Hose support
