Thermostat, Engine Cooling

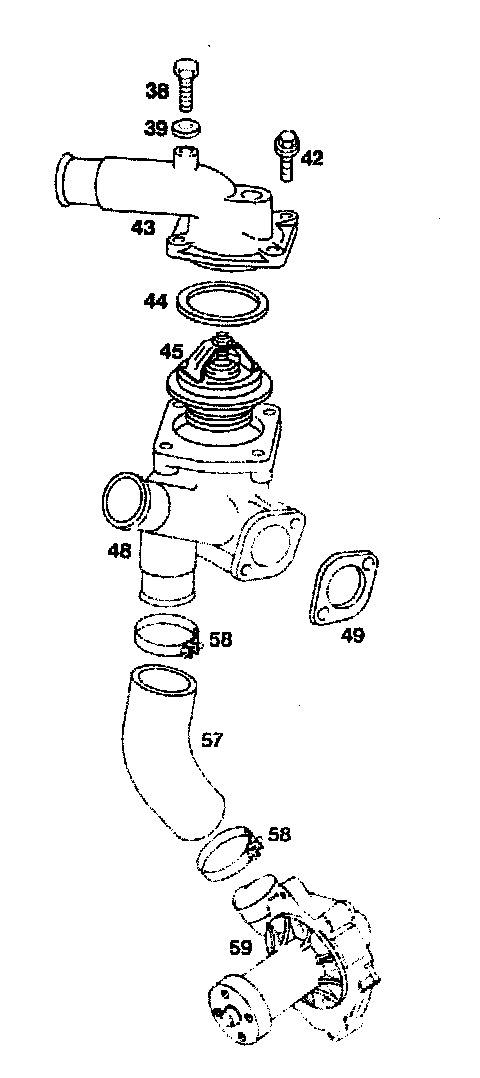

A. Engines 615, 616 in model 115.1







38 Screw
39 Sealing ring
42 4 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
48 Thermostat housing
49 Gasket
57 Hose
58 Clamp
59 Coolant pump with housing

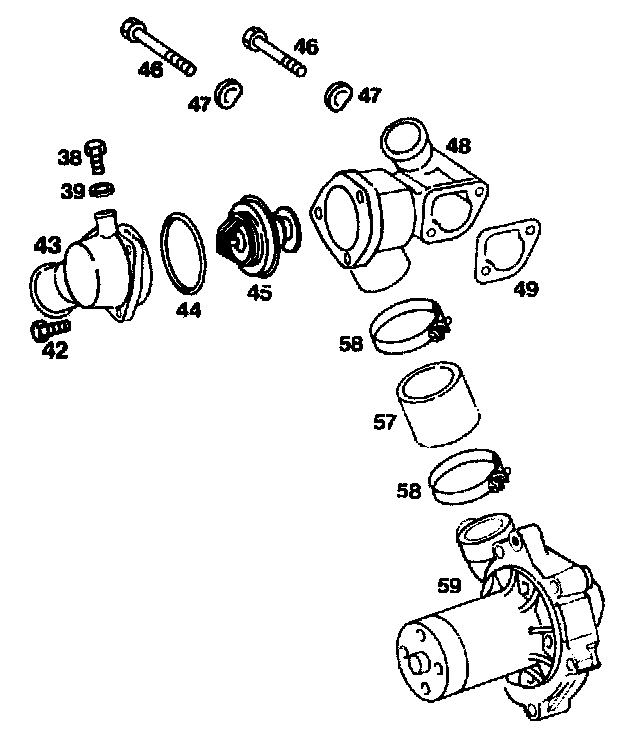

B. Engines 615, 616 in model 115.1 with air conditioning system







38 Screw
39 Sealing ring
42 3 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
46 Screw
47 Spring washer
48 Thermostat housing
49 Gasket
57 Hose
56 Clamp
59 Coolant pump with housing

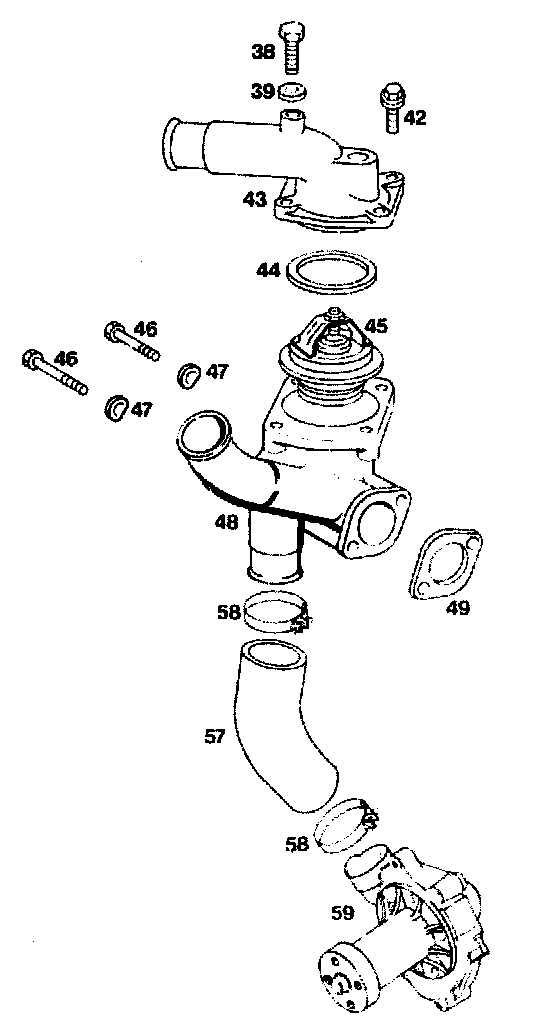

C. Engine 617 in model 115.1







38 Screw
39 Gasket
42 3 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
46 Screw
47 Spring washer
48 Thermostat housing cover
49 Gasket
57 Hose
58 Clamp
59 Coolant pump with housing

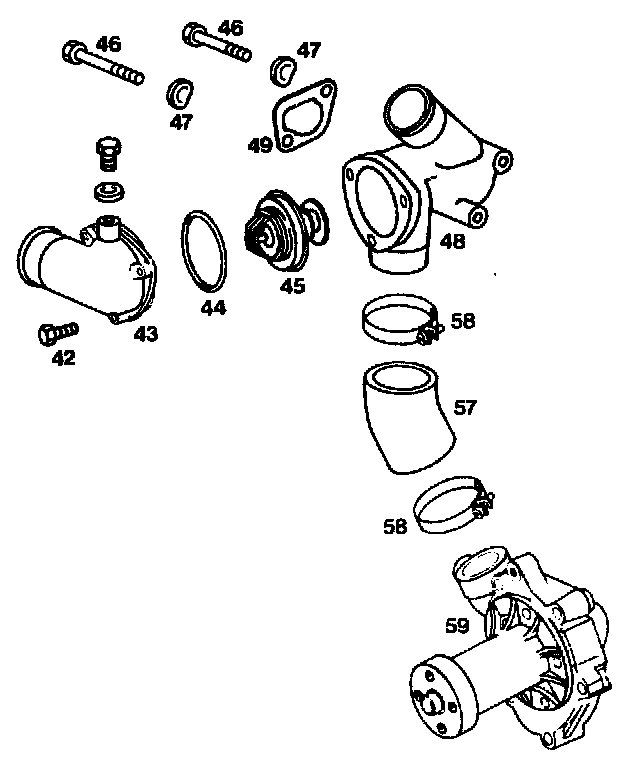

D. Engine 617 in model 115.1 with air conditioning system Engines 615, 616 in model 123.1 (1st version) with air conditioning system







38 Screw
39 Sealing ring
42 4 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
46 Screw
47 Spring washer
48 Thermostat housing
49 Gasket
57 Hose
58 Clamp
59 Coolant pump with housing

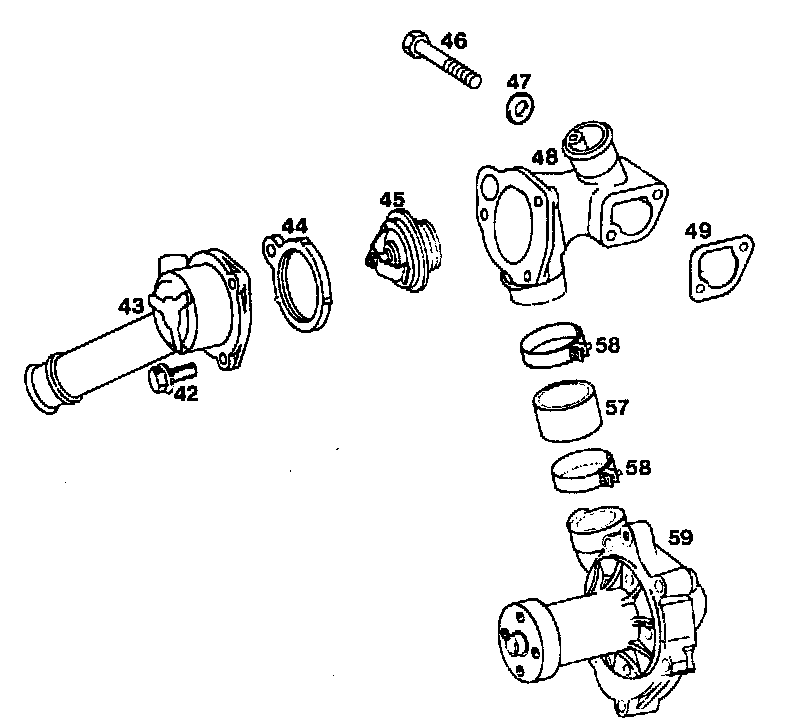

E. Engines 615, 616, 617 in model 123.1 (1st version)







42 3 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
46 Screw
47 Spring washer
48 Thermostat housing
49 Gasket
57 Hose
58 Clamp
59 Coolant pump with housing

F. Engines 615, 616, 617 in model 123.1(2nd version)







42 3 combination screws
43 Thermostat housing cover
44 Gasket
45 Thermostat
46 2 screws
47 2 spring washers
48 Thermostat housing
49 Gasket
57 Hose
58 Clamp
59 Coolant pump with housing
