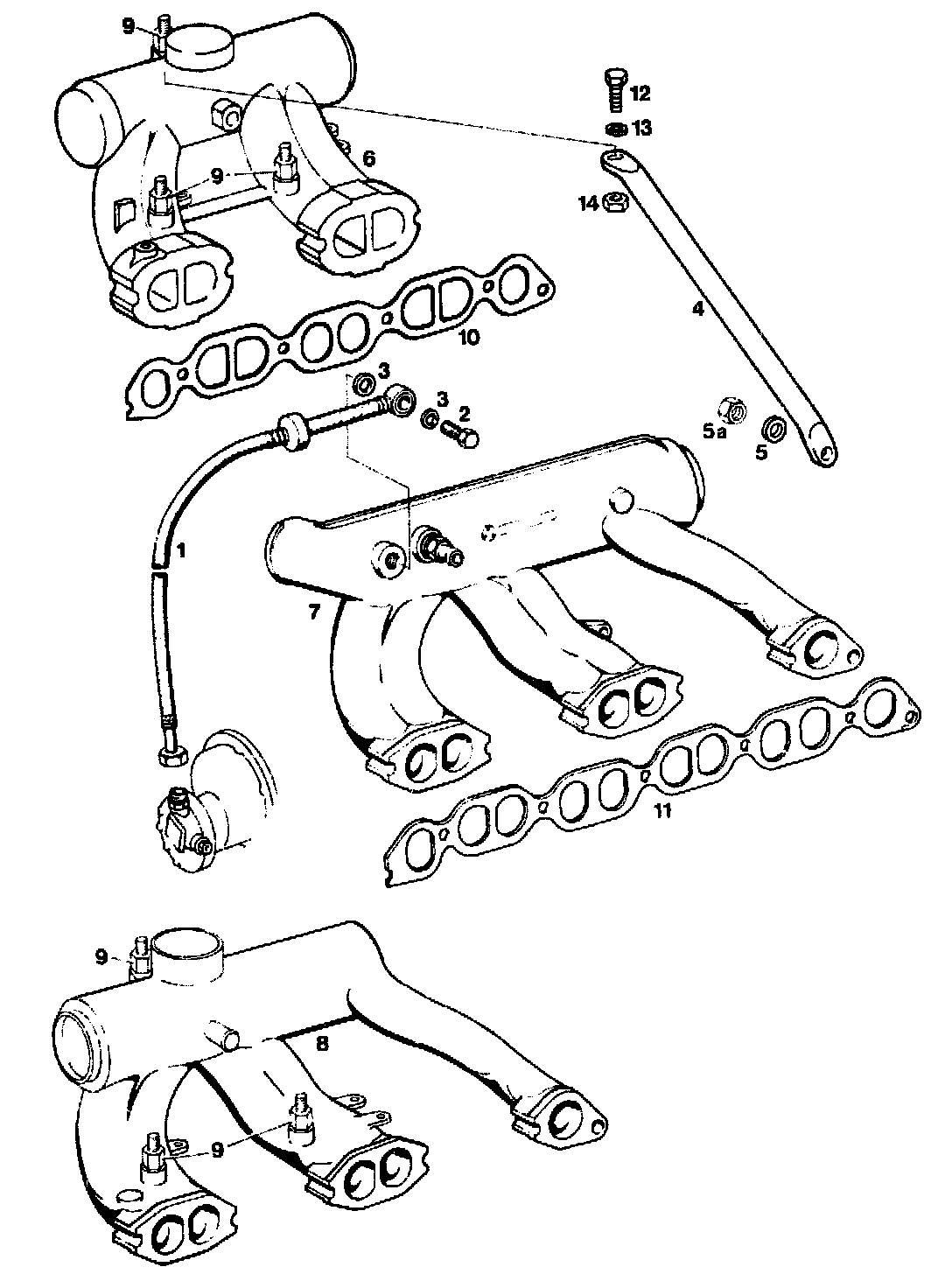

Intake Manifold

1. Vacuum line to vacuum pump 1)
2. Hollow screw
3. Sealing ring
4. Strut engine 615,616,617
5. Washer
5a. Nut
6. Intake pipe engine 615,616
7. Intake pipe engine 617 in model 115.1
8. Intake pipe engine 617 in model 123.1
9. Vibration mount
10. Gasket
11. Gasket
12. Screw
13. Washer
14. Nut
15. Nut

1) not with piston pump.
