Oil Filter, Engine

Function

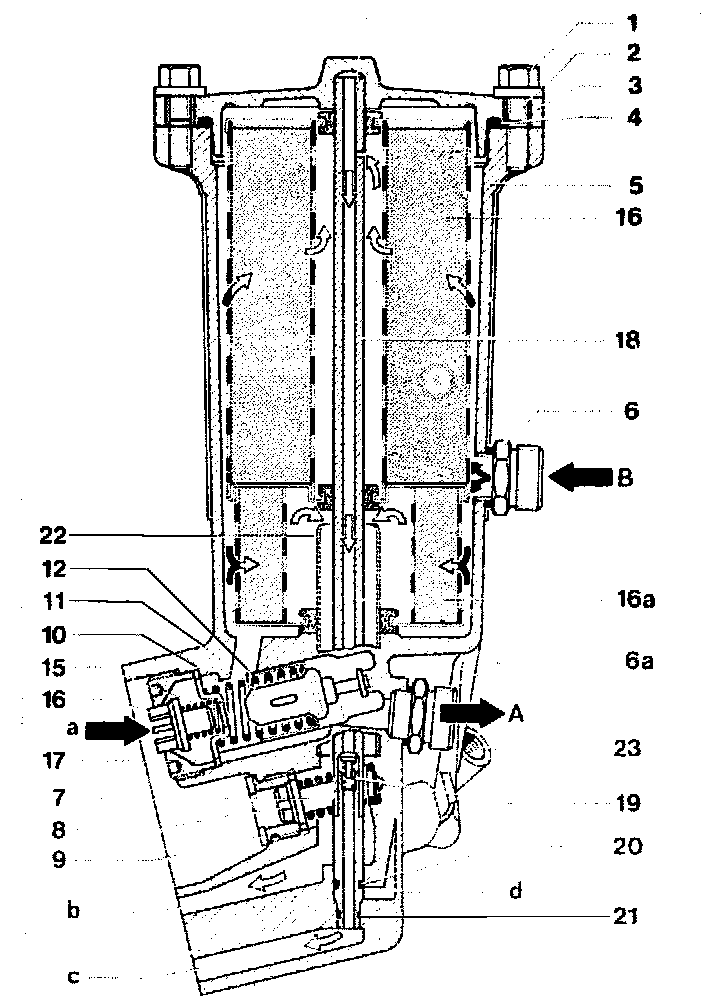

1 Nut M8
2 Stud M8
3 Cover
4 Sealing ring
5 Oil filter housing
6 Threaded connection
6a Threaded connection connection
7 Compression spring
8 Star valve
9 Valve seat bypass valve
10 Compression spring
11 Thermostat
12 Control valve
15 Compression spring
16 Star valve
17 Valve seat return flow locking valve
18 Return flow pipe
19 Check valve
20 O-ring
21 O-ring
22 Header pipe
23 Connection for oil pressure gauge
A Uncleaned oil to air oil cooler
B Uncleaned Oil from air oil cooler
a from oil pump
b to bearing points
c fine-filtered oil to oil pan
d oil return flow bore to oil pan

The oil filter comprises the following main components:
a) Oil filter housing with bypass valve, return flow locking valve and thermostat
b) Cover with return flow pipe, check valve and sealing ring.
c) Combination filter element.
