Vacuum and Vapor Hose Diagrams
>>
Exhaust Gas Recirculation
>>
Manual
Manual

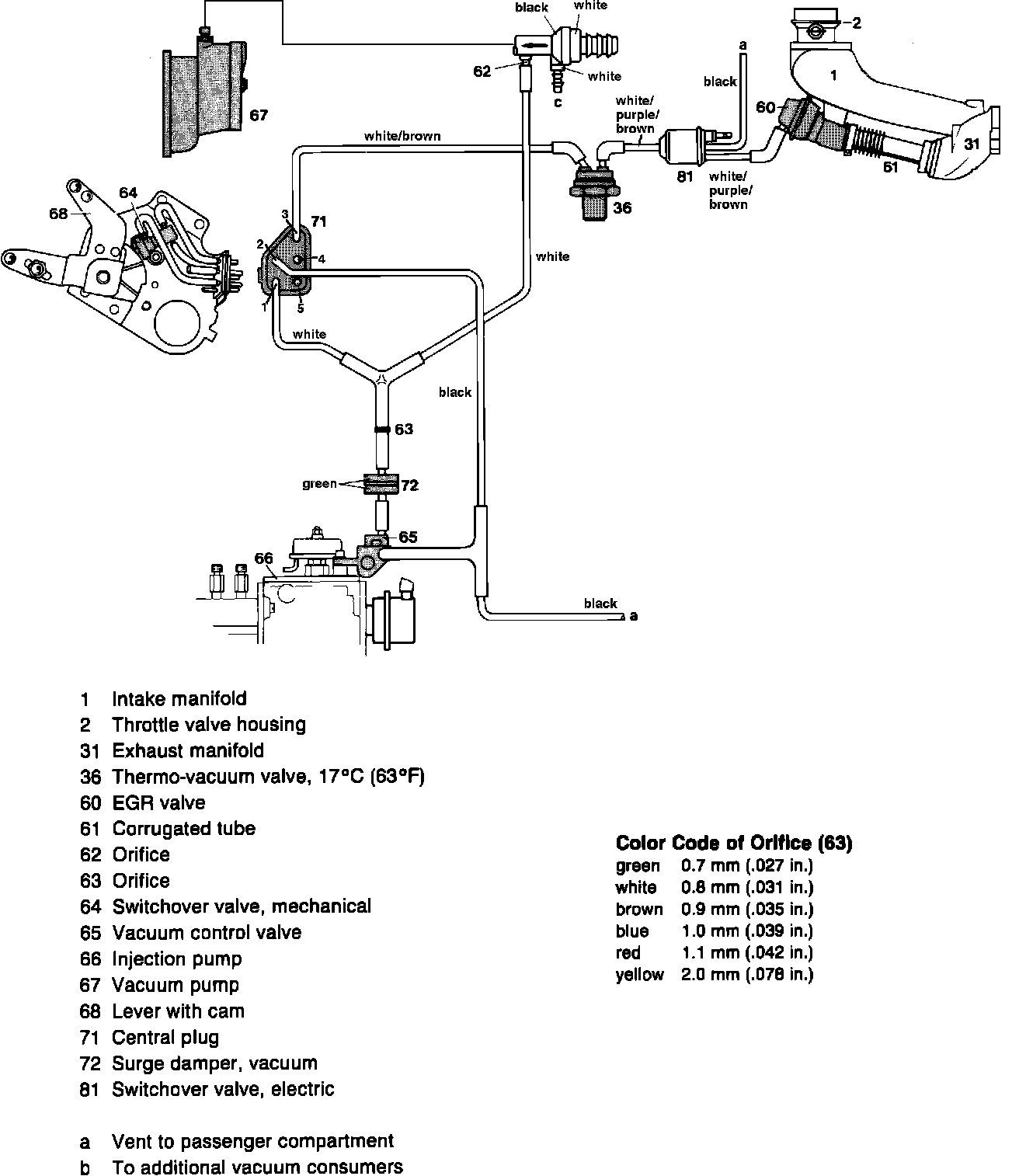

Fig. 61, Vacuum line routing:
