EGR System Test (DE-01.13)

EGR System Test (DE-01.13)

Starting Model Year 1982

Test Conditions:
With throttle linkage correctly adjusted, connect tachometer. With engine at operating temperature, steering in straight ahead position, climate control turned off, selector lever of automatic transmission in position "P", and the idle speed control turned down, run engine at idle (750±50 rpm).

Special Tools:

Conventional Tools:

Test Connection - Self Made:

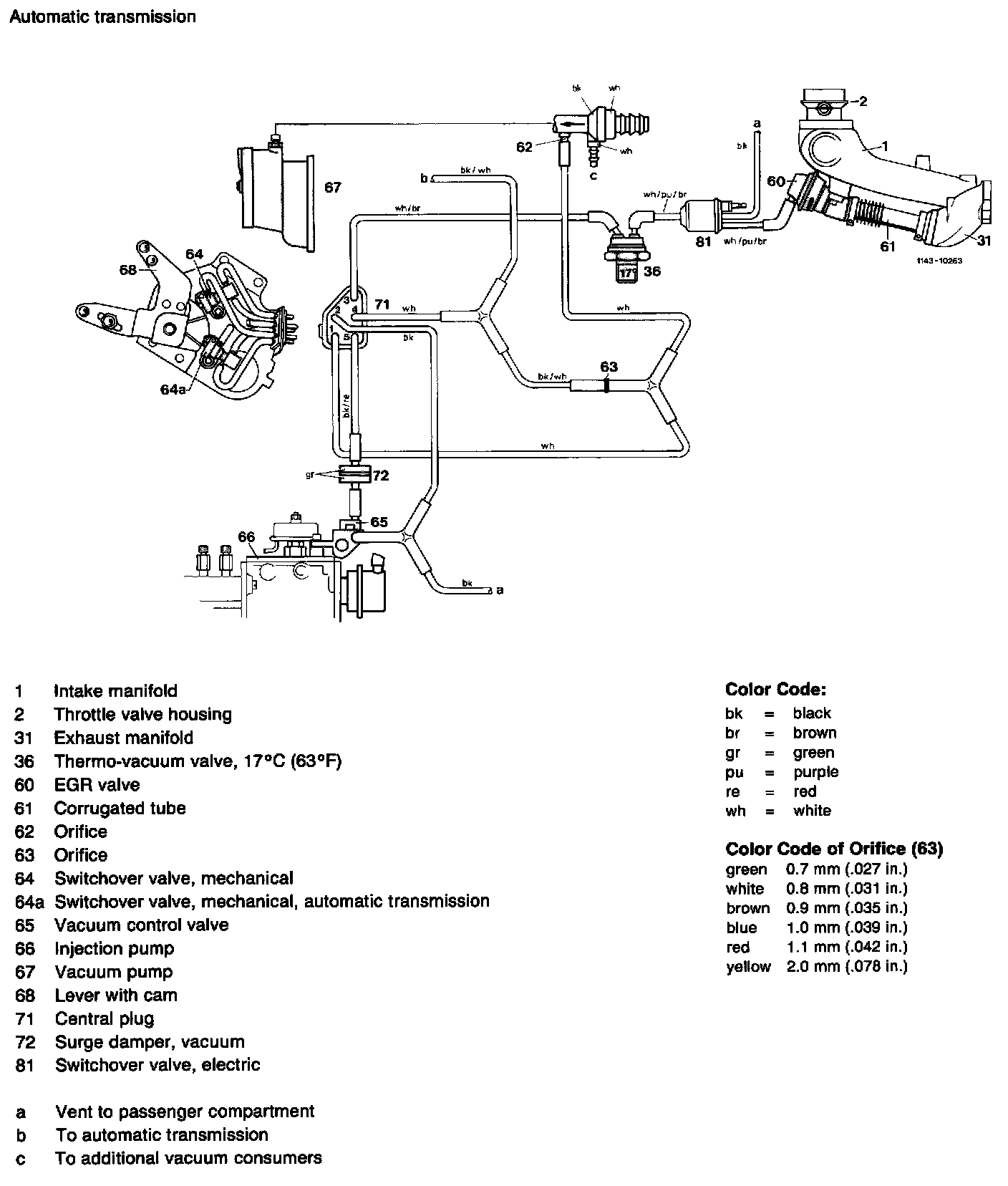

Functional Diagram Of Vacuum Line Routing - Automatic Transmission:

Functional Diagram Of Vacuum Line Routing - Manual Transmission:

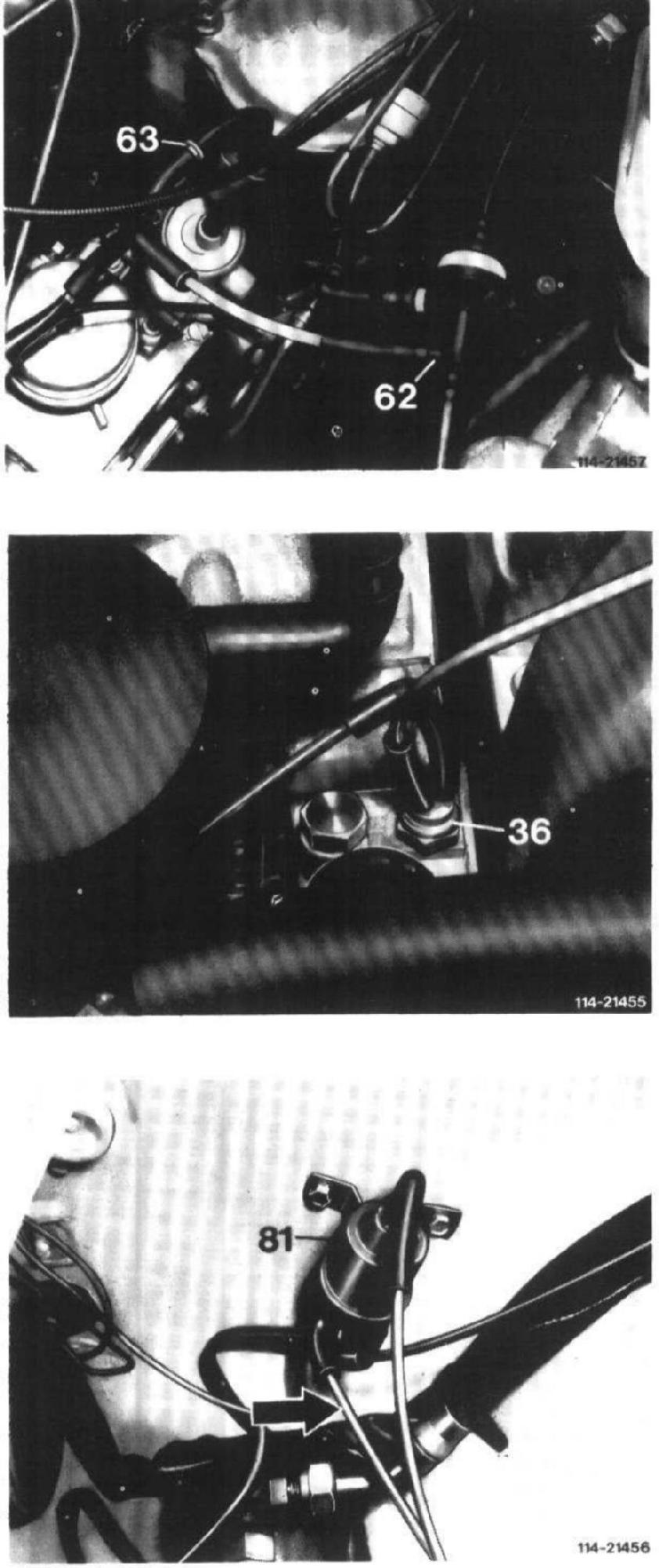

Note: The yellow orifice (63) should be installed at beginning of test

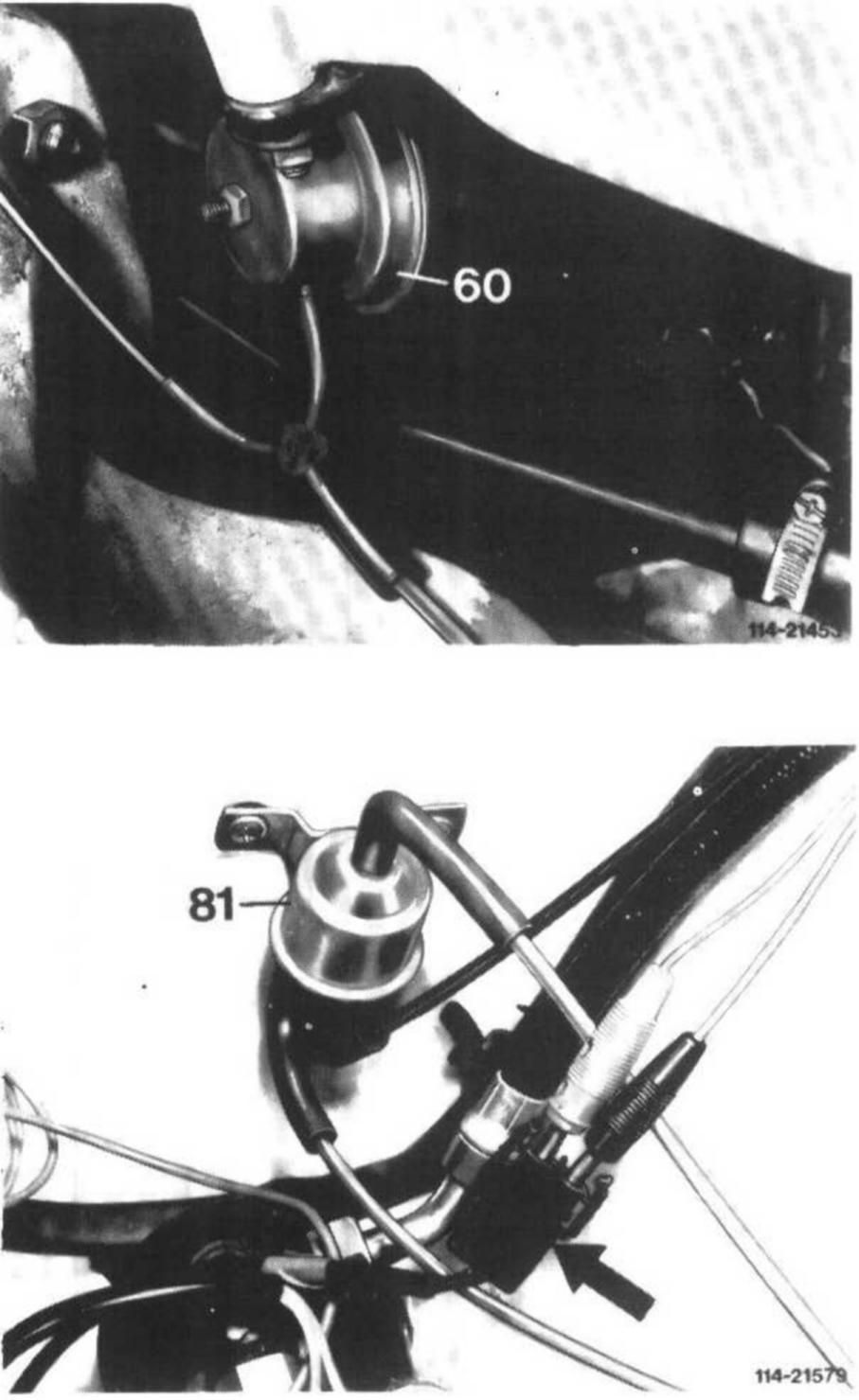

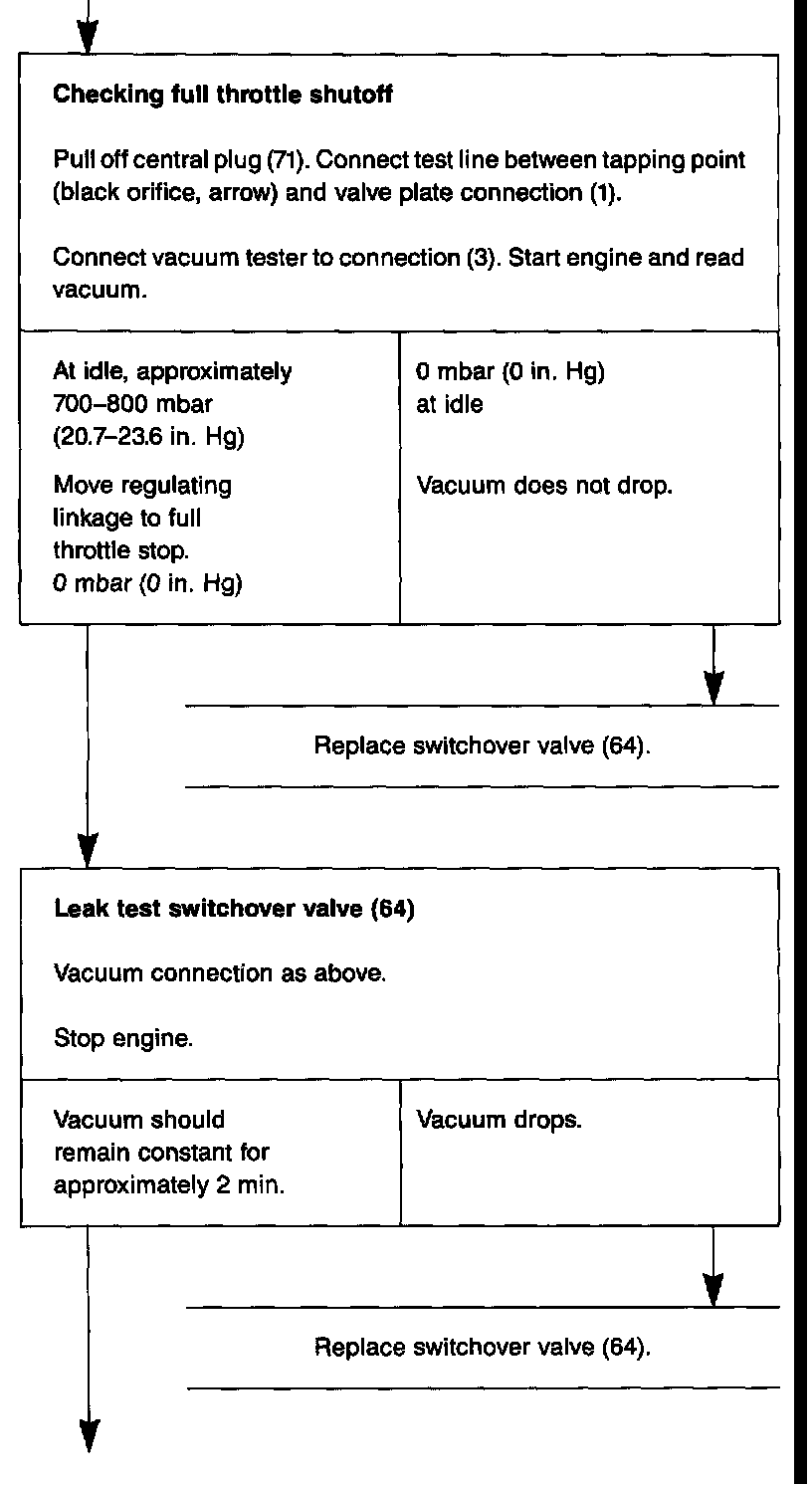

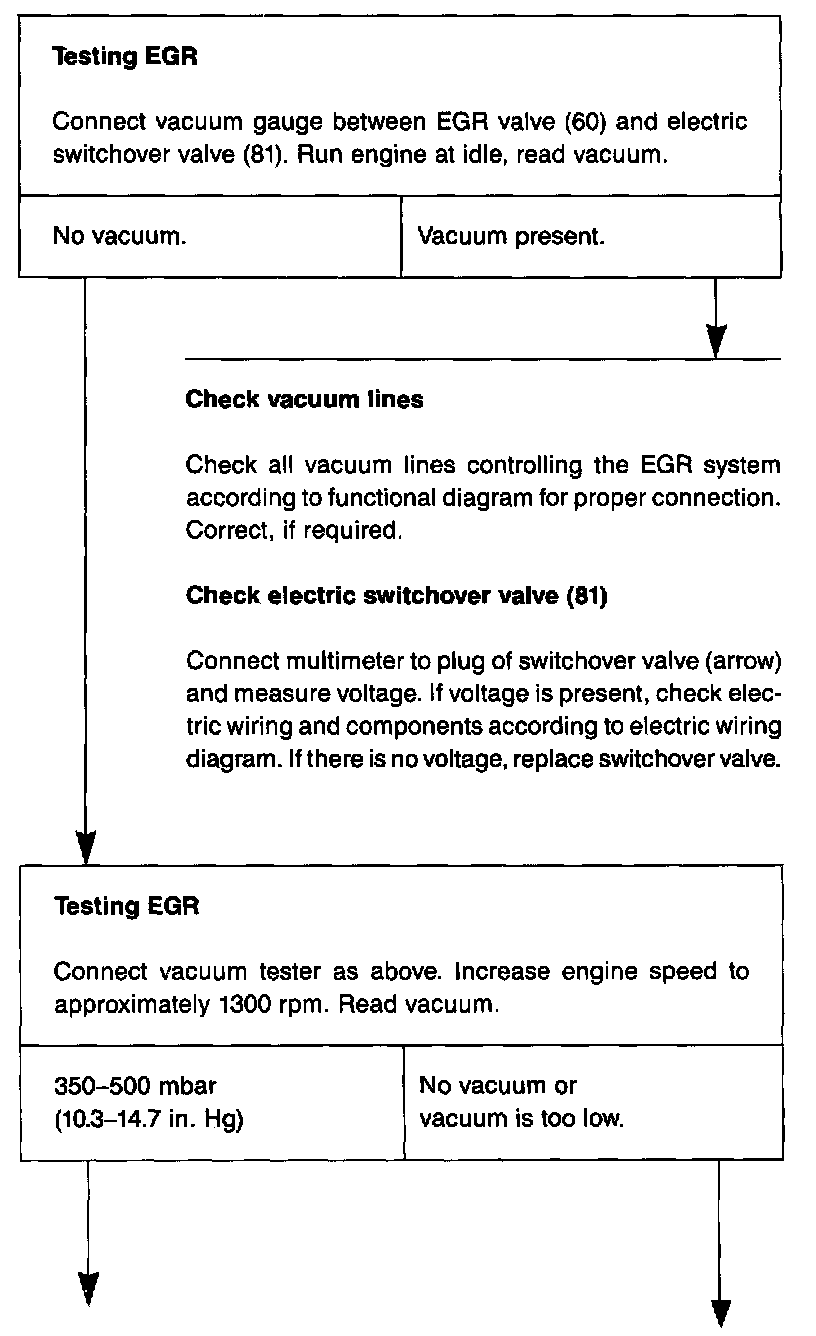

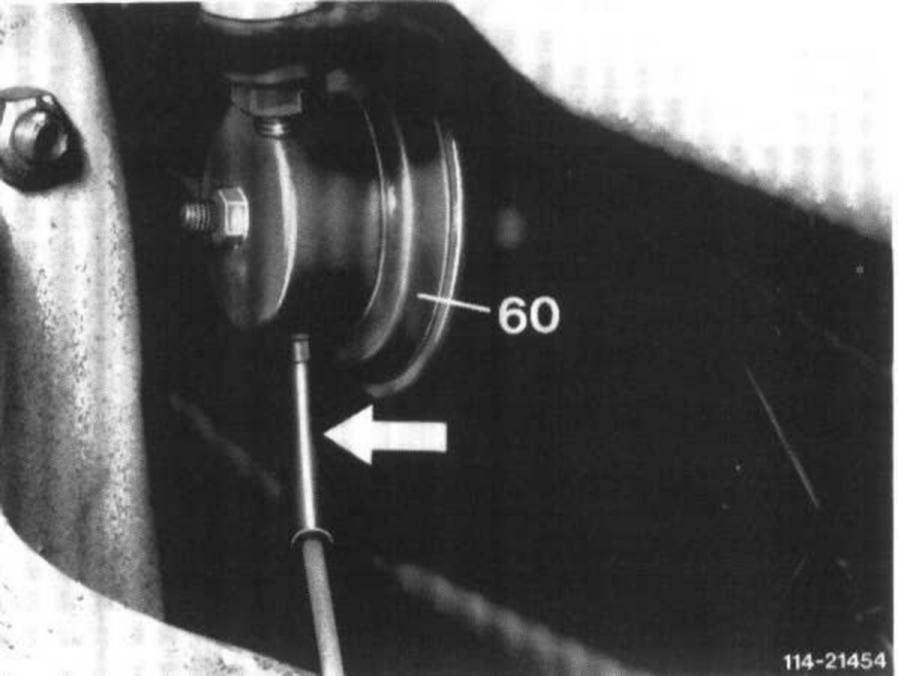

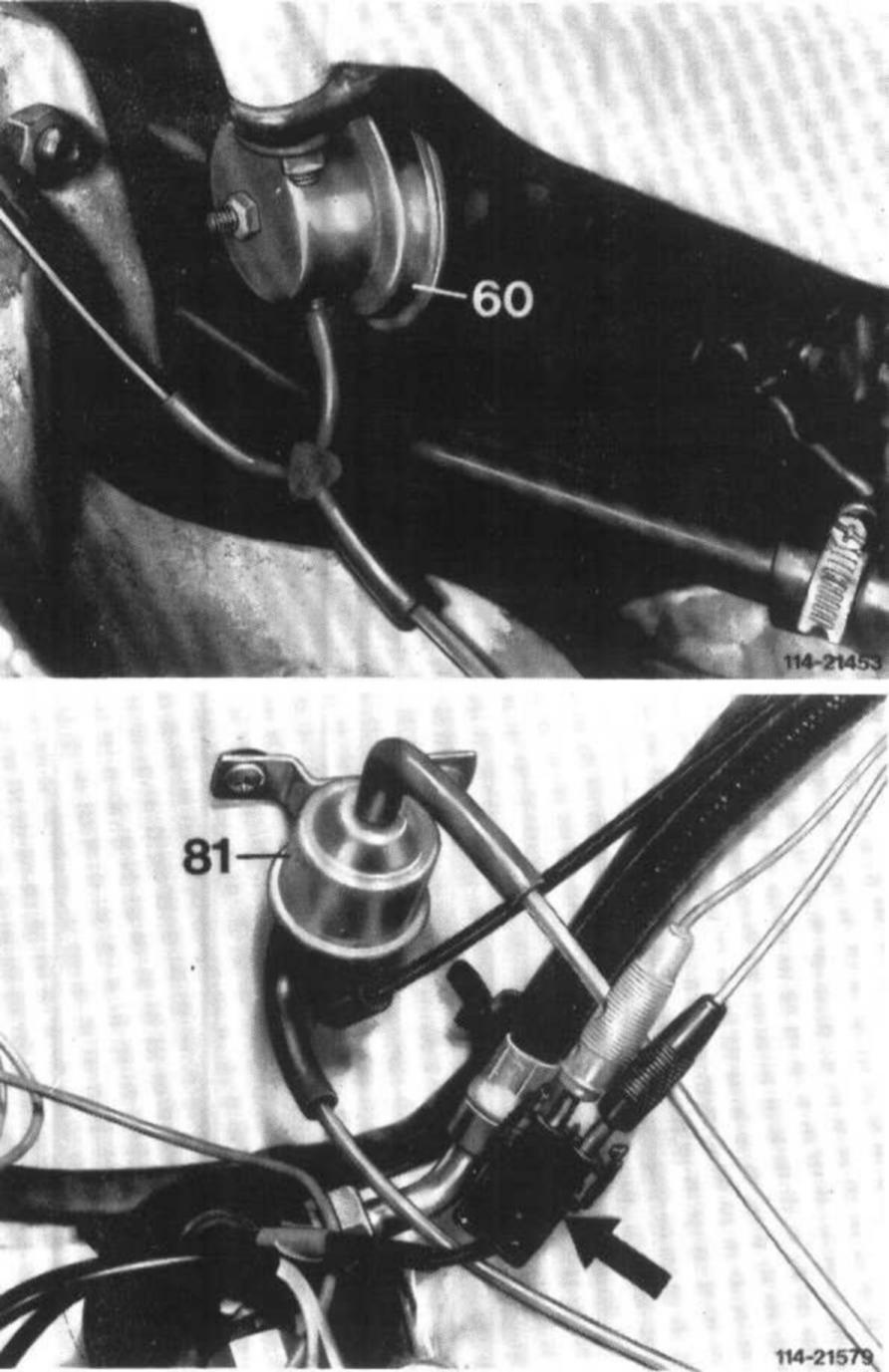

Test (cont):

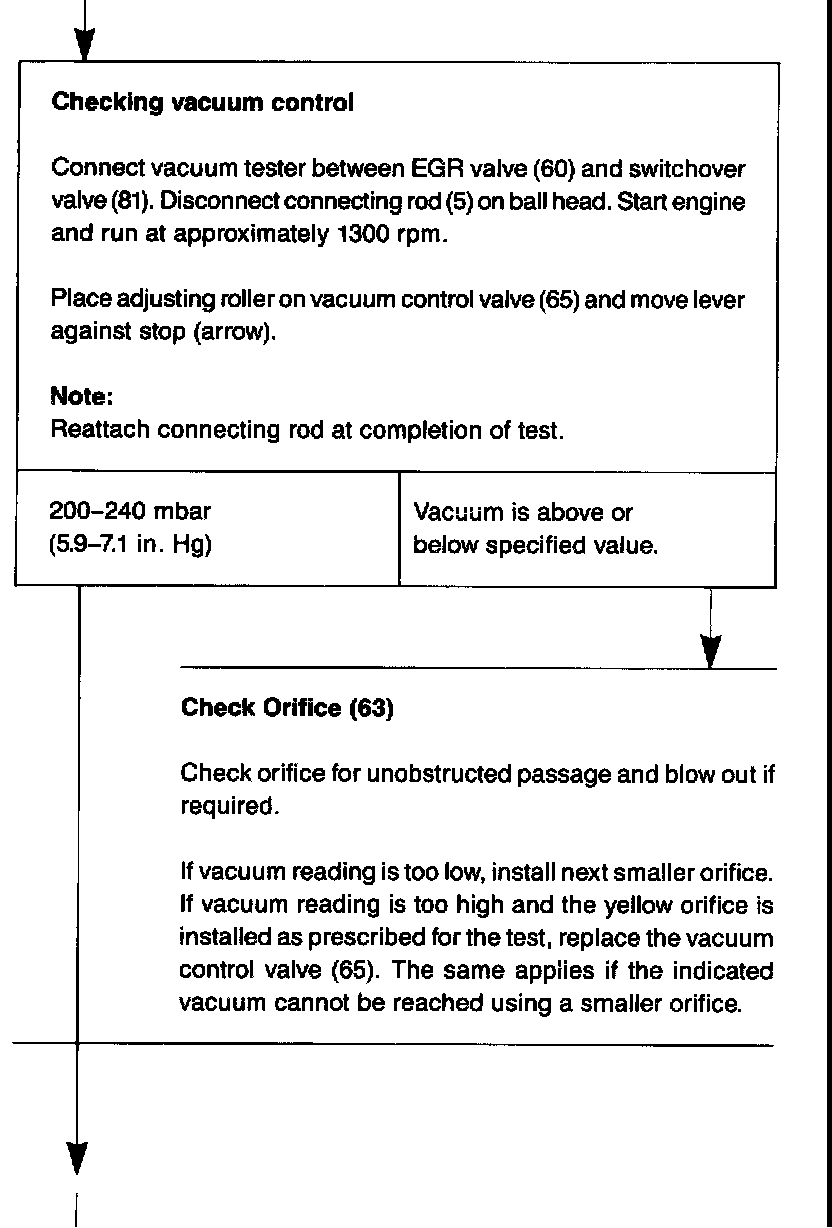

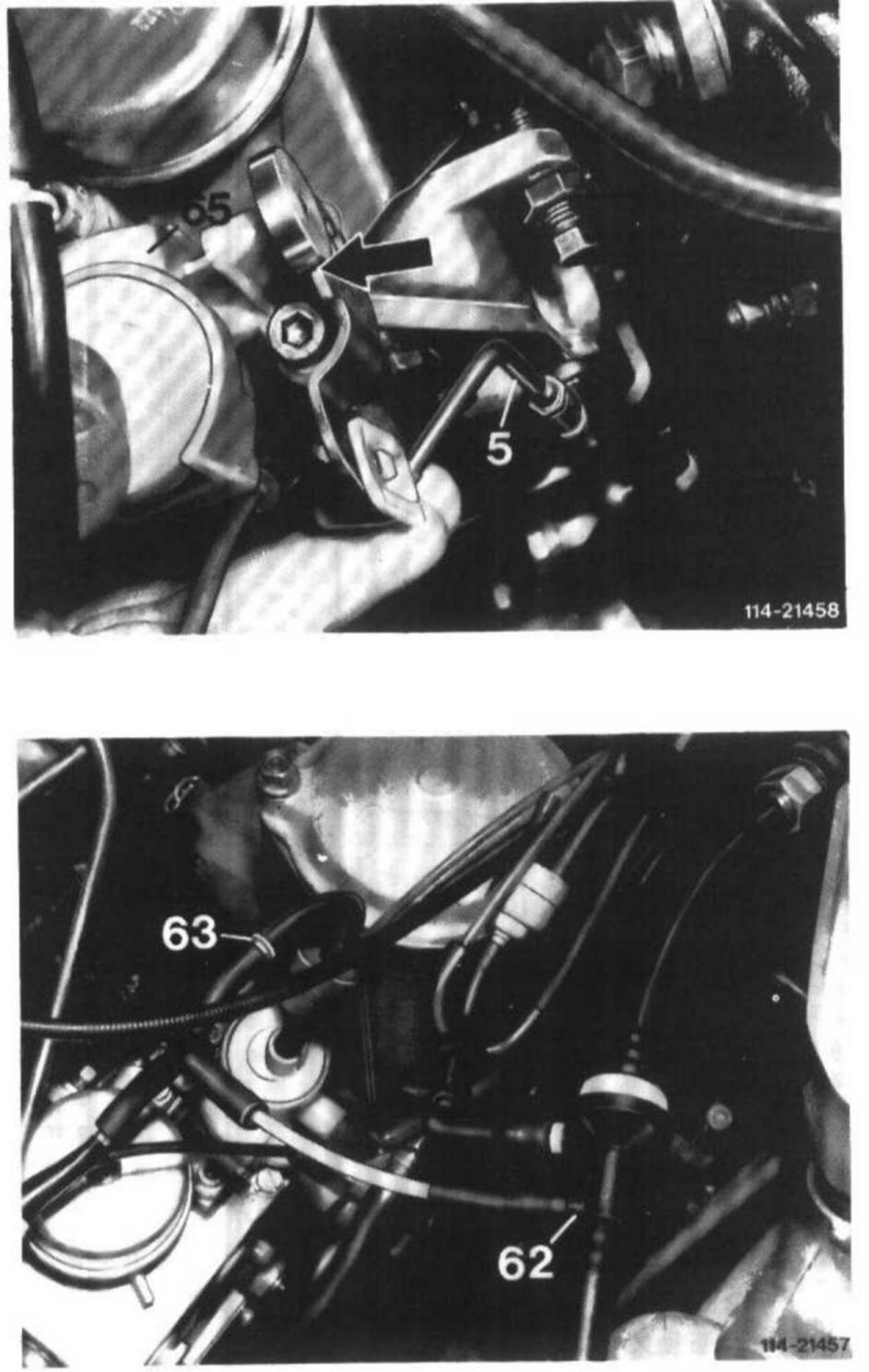

Test (cont):

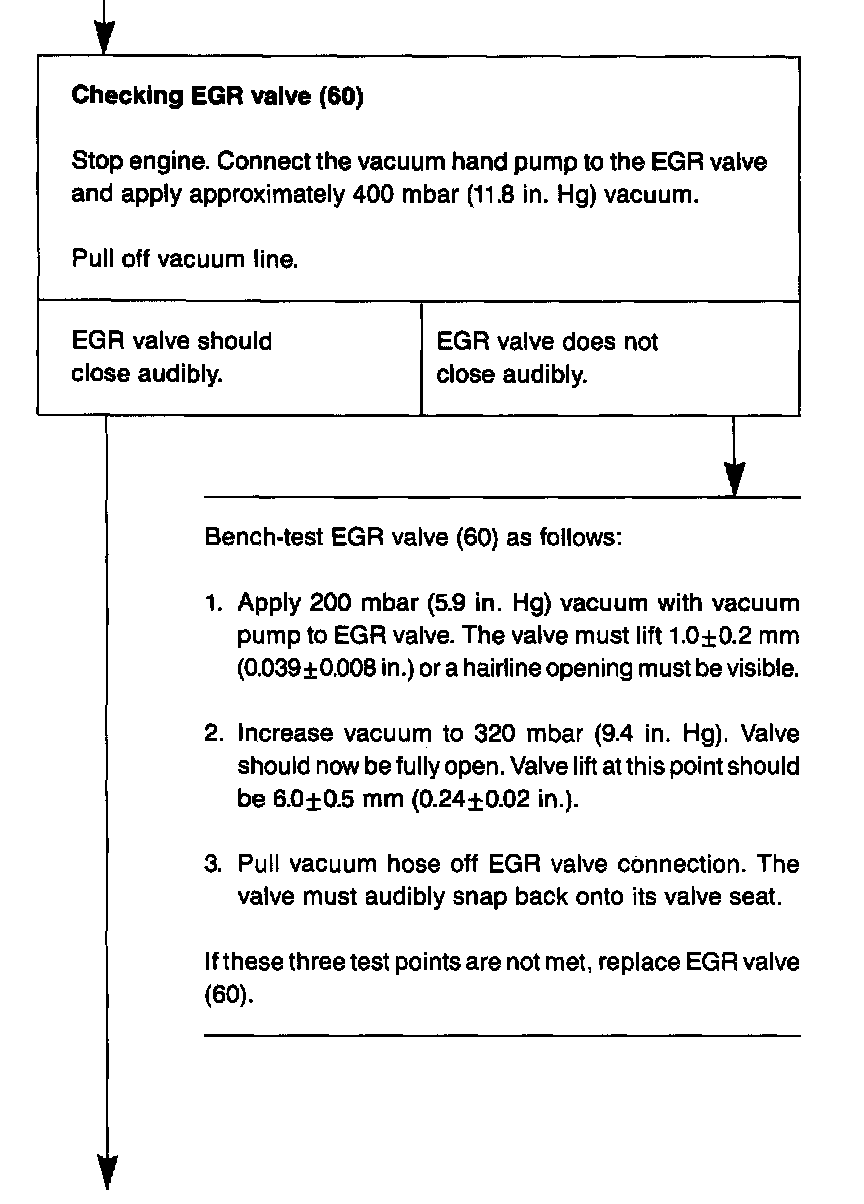

Test (cont):

Electrical Wiring Diagram, EGR:
