Fuel Delivery Pump and Overflow Valve Test (DE-01.06)
Fuel Delivery Pump and Overflow Valve Test (DE-01.06)
Fuel Delivery Pump And Overflow Valve Test
(DE-01.06)

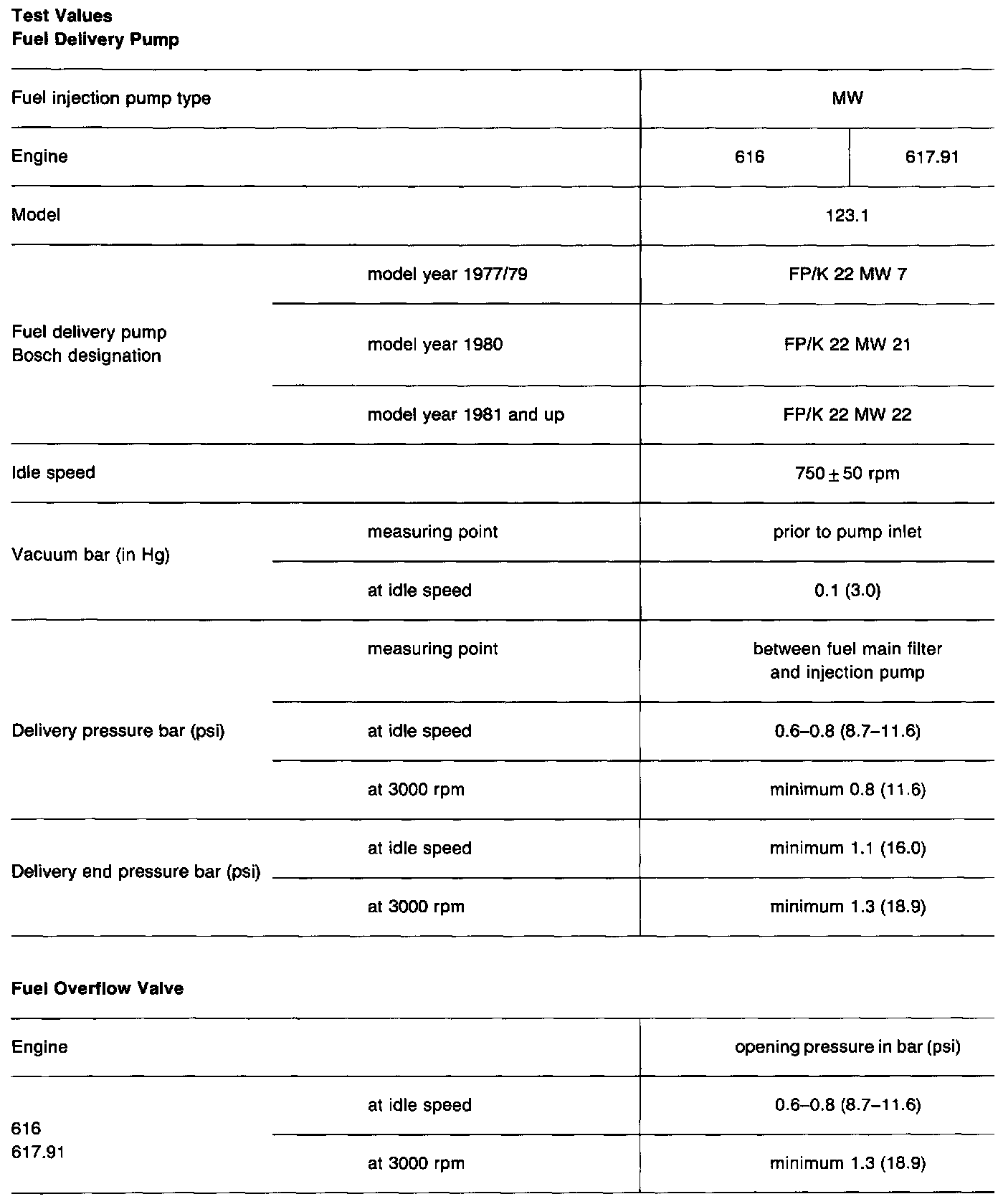

Test Values:

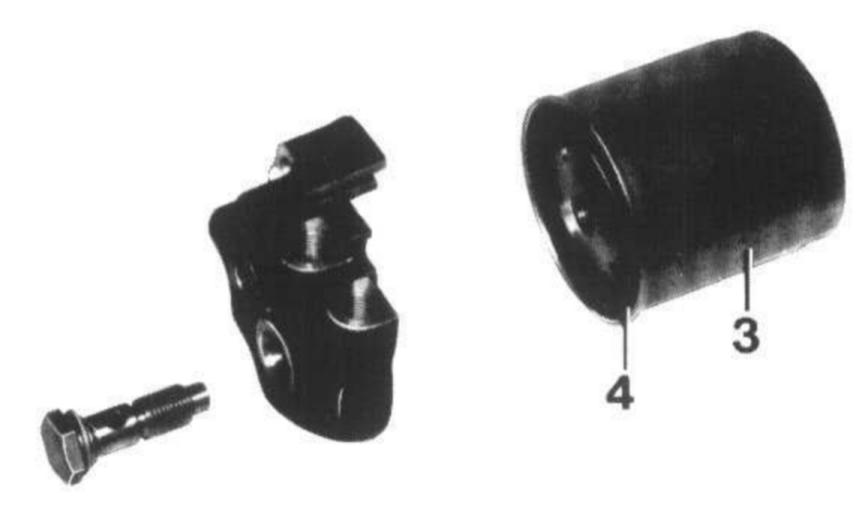

Special Tools:

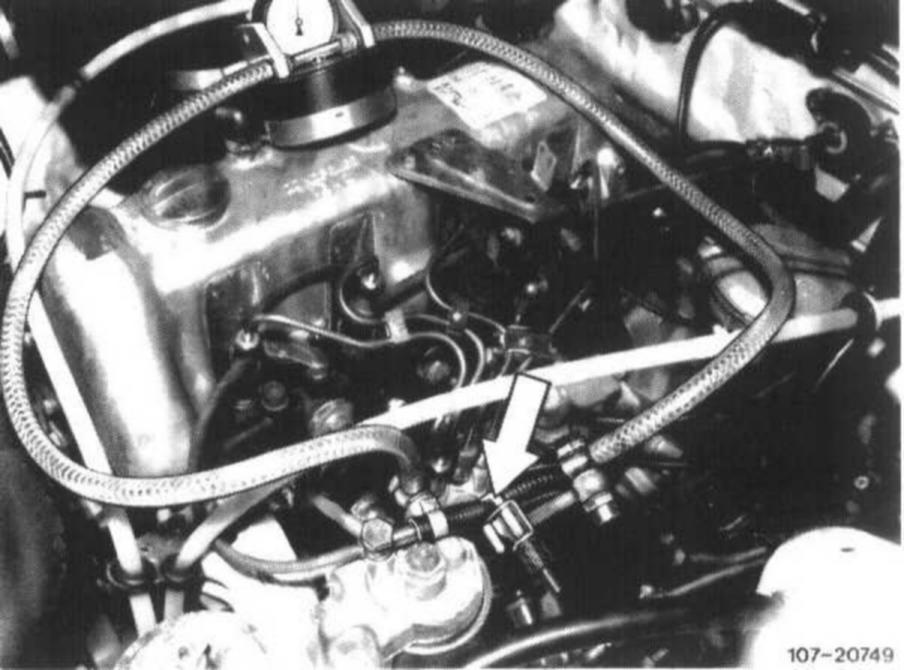

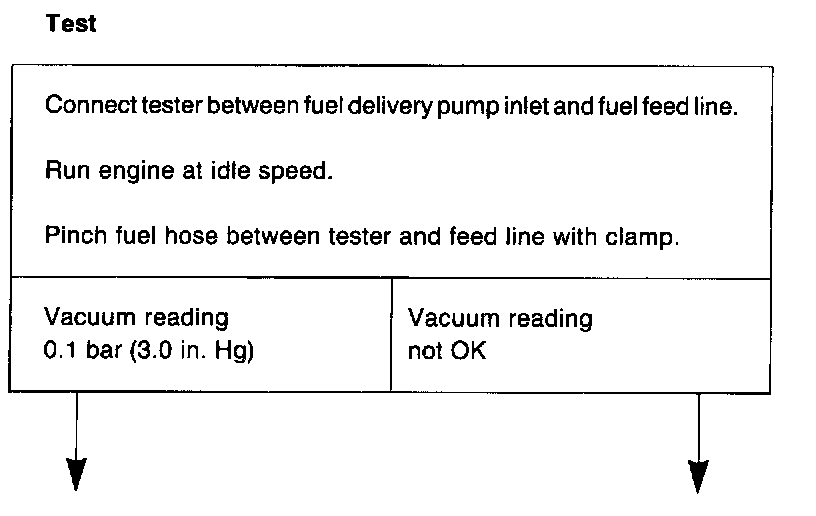

Test (part 1):
Test (part 2):

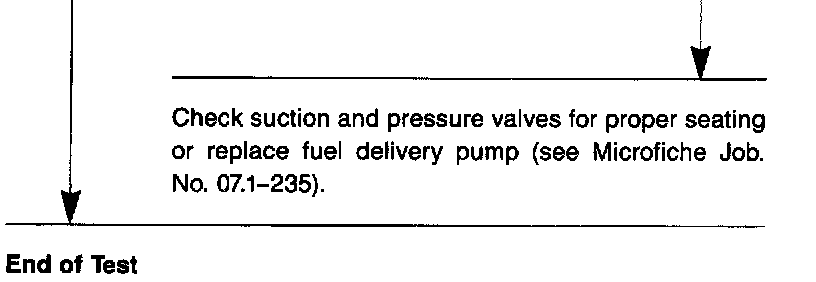

Test (part 3):
