Blower Override Switch: Service and Repair

Removal
1. Remove ACC push-button control unit.

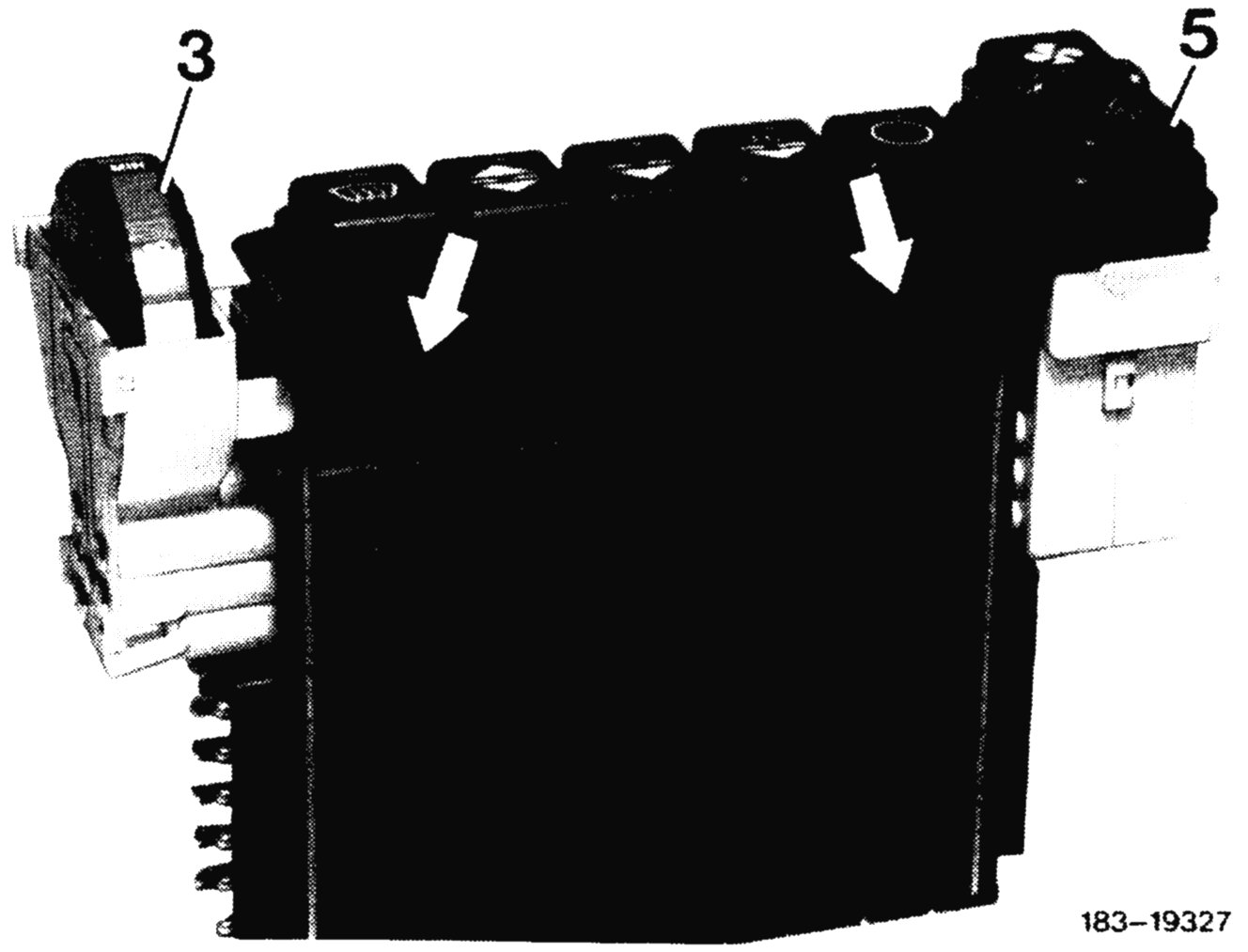

Control Unit Plastic Cover:

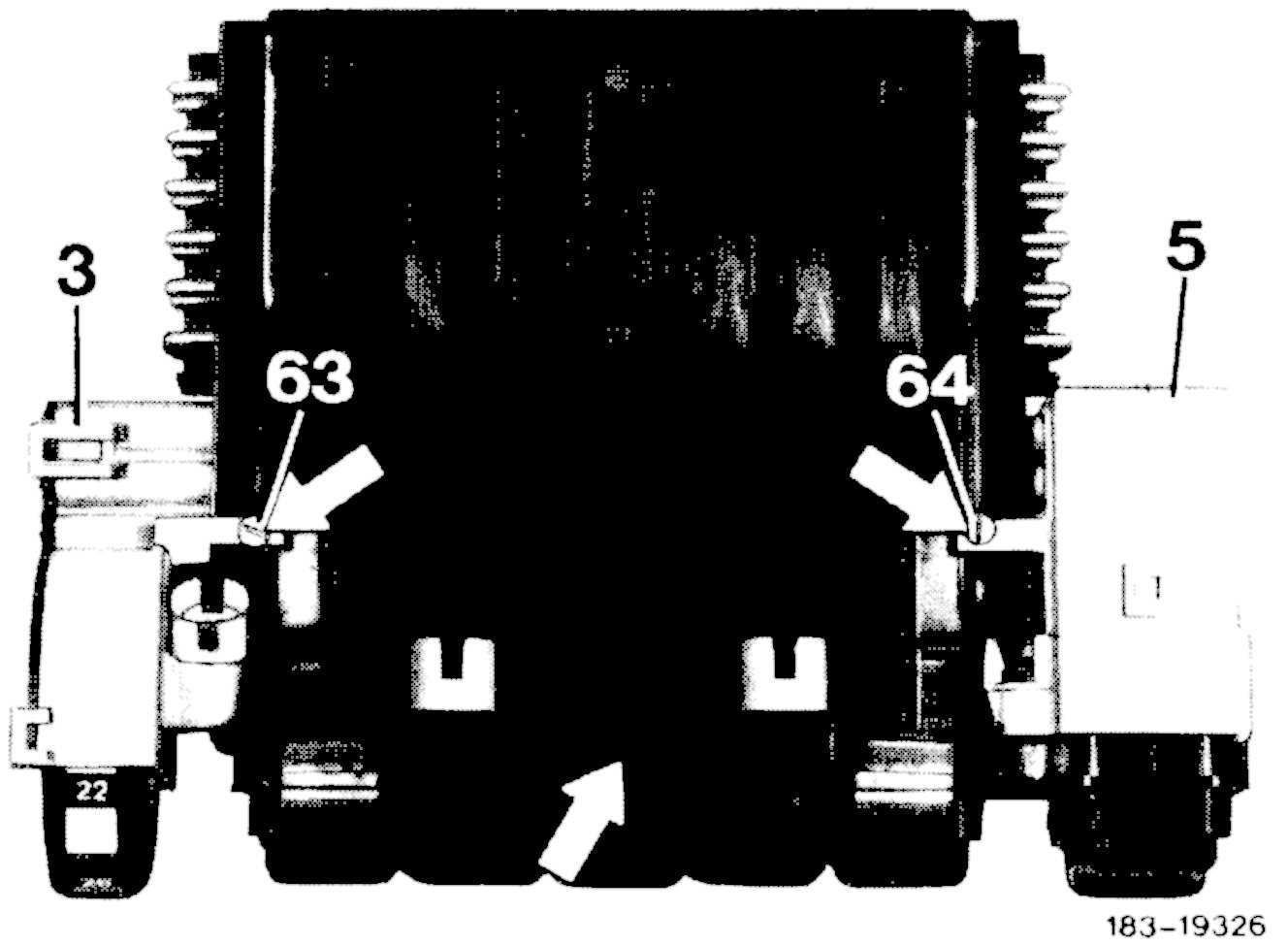

Temperature Dial And Blower Switch Mounting Pins:





2. Remove plastic cover (refer to arrows) from control unit, starting at blower switch (5), so that push-button are falling out individually. Push out clip (64).
3. Unclip blower switch (5) from control unit and pull off.

Installation
Press blower switch (5) with clip (64) against control unit and mount plastic cover. Put back push-buttons under slight pressure with a rotating motion (pay attention to sequence and position of symbols). Install ACC push-button control unit.
