Gasoline and Diesel Models Model Years 1984-1985

TEST SHEET FOR AUTOMATIC TRANSMISSIONS GASOLINE AND DIESEL MODELS MODEL YEARS 1984-1985
TYPE: W4A020 (722.4)

MODELS:
I. 201.024 II. 201.122 123.133 123.153 123.193 126.120
I. MODEL 190 E2.3

A. PRELIMINARY CHECKS
1. Transmission fluid level: Full Overfilled Low
2. Oil appearance: Clean Cloudy Burned
3. Adjustment of control pressure cable: Adjustment Correct Adjusted
Time Allowance: Refer to Time Guide, Operation No. 27-0010.

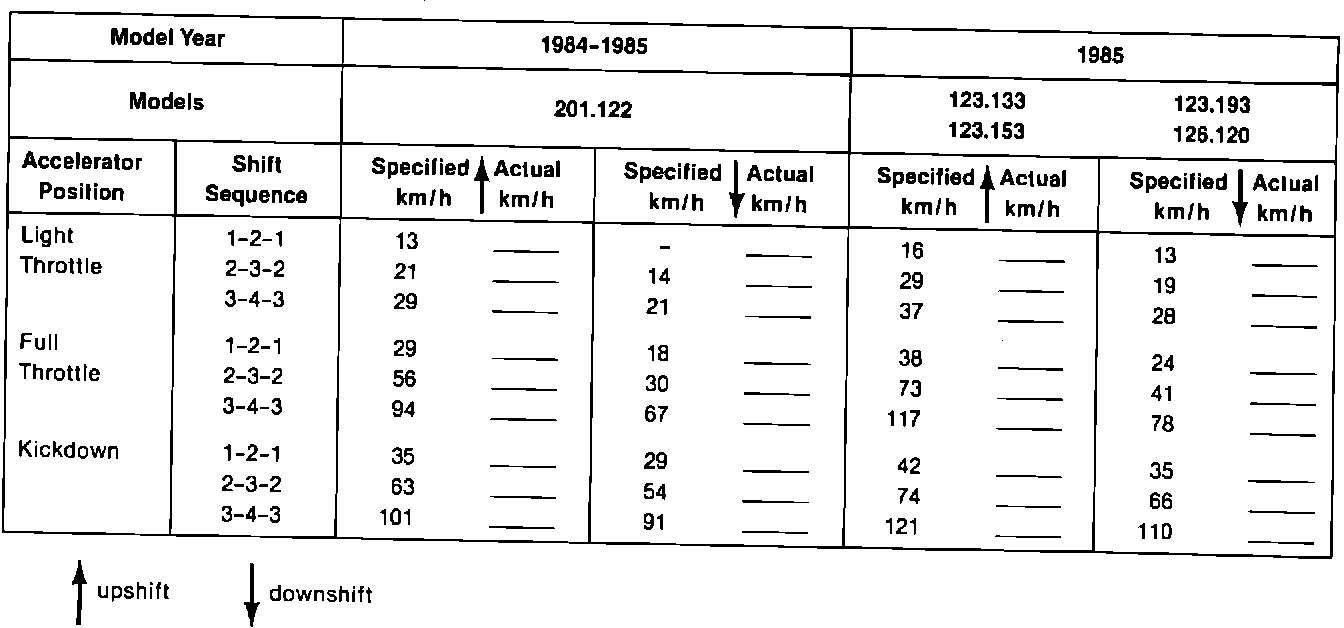

B. ROAD TEST: Check Shift Points. Drive car through shift points in selector lever position "D", observing any malfunctions of transmission performance. Mark actual conditions on test sheet. Note: All speeds given are approximate values.

Time Allowance: 27-0028 00 Shift Quality/Shift Points, Check during Road Test 0.4 hr

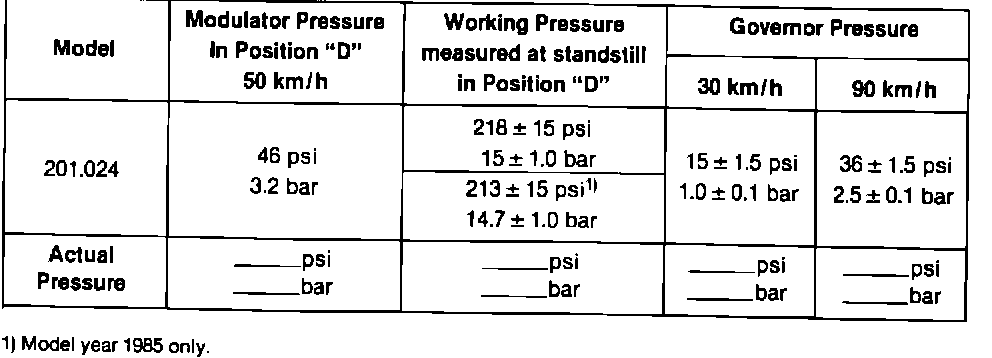

C. MODULATOR PRESSURE TEST IN POSITION "D" AT 50 km/h (VACUUM LINE PULLED OFF).
Maximum (on acceleration): Actual psi (bar) Set to specified psi (bar)

Time Allowance: Refer to Time Guide, Operation No. 27-0016.

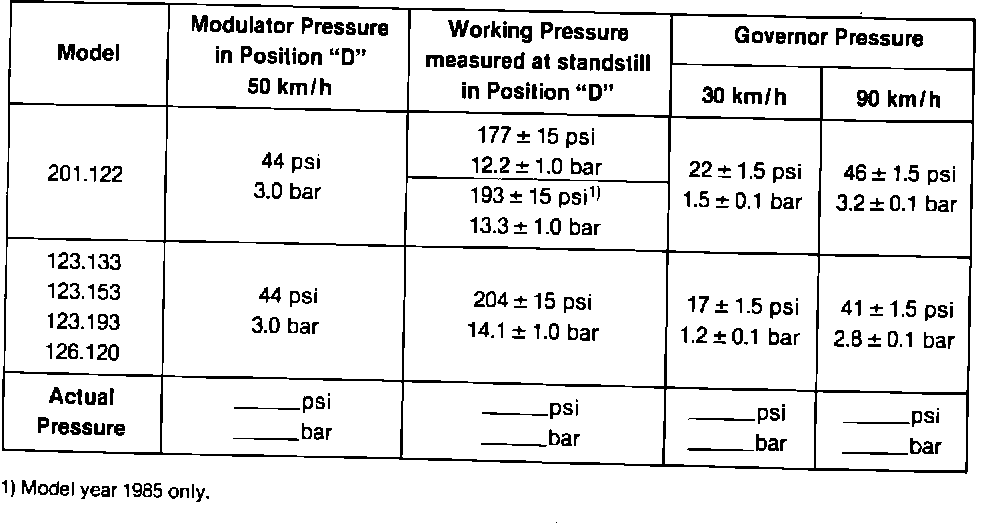

WORKING AND GOVERNOR PRESSURE TEST IN PSI OR BAR
Time Allowance: Refer to Time Guide, Operation No. 27-0021/0031.
Page 2 MBNA 2204 (9-84)

II. MODELS 190 D 2.2, 300 D, 300 CD, 300 TD, 300 SD

A. PRELIMINARY CHECKS
1. Transmission fluid level: Full Overfilled Low
2. Oil appearance: Clean Cloudy Burned
3. Adjustment of control pressure cable: Adjustment Correct Adjusted
4. Check adjustment of vacuum control valve. (Maximum Time: 0.5 hrs.)
Adjustment Correct Adjusted

Time Allowance: Refer to Time Guide, Operation No. 27-0010.



B. ROAD TEST: Check Shift Points. Drive car through shift points in selector lever position "D", observing any malfunctions of transmission performance. Mark actual conditions on test sheet. Note: All speeds given are approximate values.
Time Allowance: 27-0028 00 Shift Quality/Shift Points, Check during Road Test 0.4 hr
C. MODULATOR PRESSURE TEST IN POSITION "D" AT 50 km/h (VACUUM LINE PULLED OFF).
Maximum (on acceleration): Actual psi (bar) Set to specified psi (bar)

Time Allowance: Refer to Time Guide, Operation No. 27-0016.



WORKING AND GOVERNOR PRESSURE TEST IN PSI OR BAR
Time Allowance: Refer to Time Guide, Operation No. 27-0021/0031.
