Injection Pump - Updated Markings

83mercedes01

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS


DATE: August 1983 REF.NO. 07.1/29


SUBJECT: START OF DELIVERY MARKING ON INJECTION PUMP BEARING COVER CHASSIS 123 AND 126 WITH ENGINE 617.95

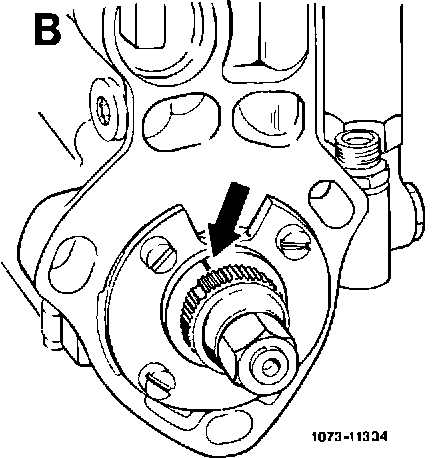

FIGURE 3 - INCORRECTLY POSITIONED START OF DELIVERY MARKING (APPROXIMATELY AT THE LEFT EDGE OF THE OIL OVERFLOW RECESS):

The start of delivery marking on the bearing cover may be incorrectly positioned (Fig.. 3) on injection pumps having the production code number "250 and 251" (arrow, Fig. 1).

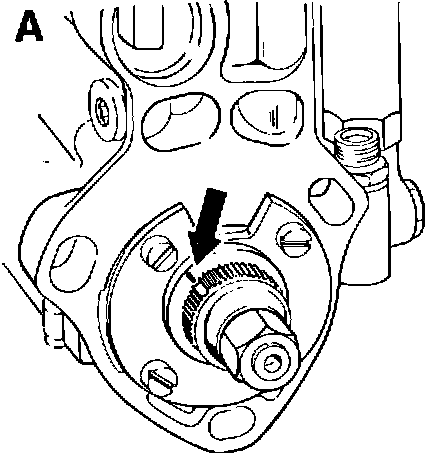

FIGURE 2 - CORRECTLY POSITIONED START OF DELIVERY MARKING (APPROXIMATELY IN THE CENTER OF THE BEARING COVER MOUNTING BOLT):

All pumps are checked by Robert Bosch for the above condition when they come in for test or repair and are re-marked with the correct mark after calibration. In some cases, however, it may be necessary to follow the procedure outlined below.
