Window Frames - Sealing
83mercedes02TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS
DATE: March, 1983 REF. NO.. 67/11
SUBJECT: A. SEALING TAPE FOR REAR SIDE AND TAILGATE WINDOW FRAMES
MODEL 123.19
B. NEW TAILGATE WINDOW FRAME WITH BUTYL SEALANT
MODEL 123.193
C. M-B GLASS SEALING COMPOUND USE
ALL MODELS
A. Sealing Tape for Rear Side and Tailgate Window Frames Model 123.19
Since May 1981 production, self adhesive sealing tape is used between the rubber window frame and body. After removing one of these windows, completely remove old tape and reinstall with new tape. (This tape can also be used on earlier production vehicles).
Parts Information
Part Name Part Number
Sealing tape (rear side window) 123 673 27 21
Sealing tape (tailgate window) 123 745 06 24
FIGURE 1 - ARROW = BUTYL SEALANT:
B. New Tailgate Window Frame with Butyl Sealant Model 123.193
Since April 1982 production, a new rubber window frame with butyl sealant between the frame and tailgate glass is used (arrow, Figure 1).
With this new frame neither M-B Sealing Compound nor sealing tape are required as additional sealers. Also, when fitting the frame to the glass, do not use glycerin or water as a lubricant.
Production Phase-In
Chassis As of Chassis End No.
123.193 010676
Parts Information
Part Name Part Number
Sealing frame (tailgate window) (w/butyl sealant) 123 740 03 56

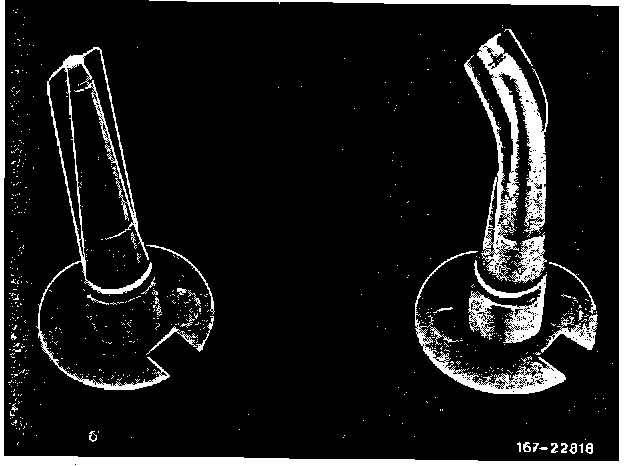

FIGURE 2 - CURVED NOZZLE - RIGHT:
C. M-B Glass Sealing Compound Use All Models (except w/butyl sealant frame)
After installation, the windshield, rear window and rear side windows (in station wagon) should be additionally sealed using M-B Sealing Compound between the sealing frame and glass, as well as between the sealing frame and body.
The use of a curved nozzle (Figure 2) will make the sealant application easier. The curved nozzle can be selfmade in the following way:
Heat the end of the nozzle using a hot air gun (or similar) set to low heat position (approx. 125~C (257~F)). Bend it against a firm support and hold in this position until cool.
