Shock Absorber

For vehicles equipped with rear level control refer to Spring Strut Suspension Strut / Shock Absorber

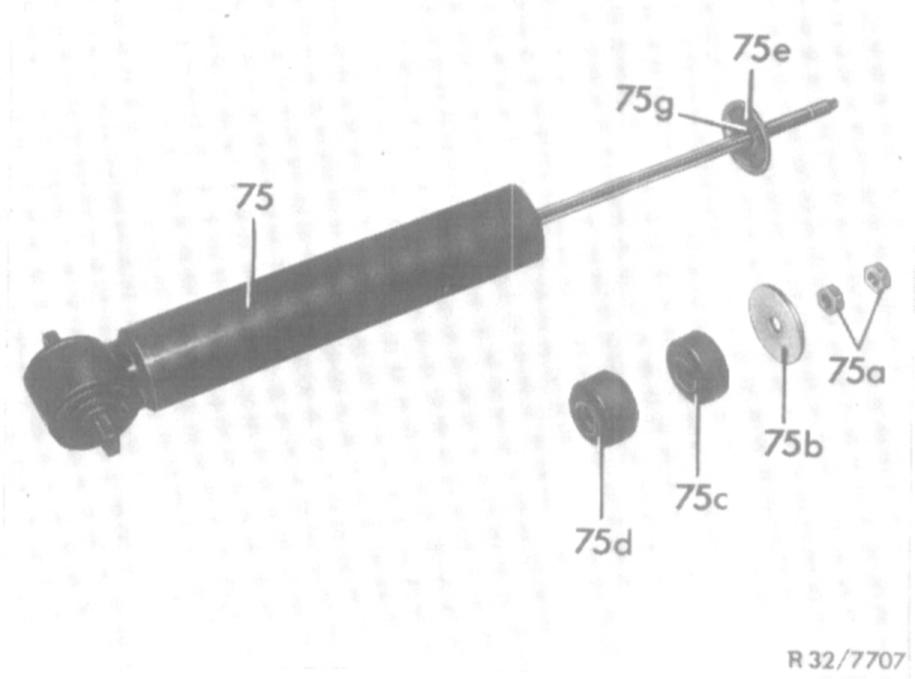

Shock absorber with separating piston
75 Shock absorber
75a Hex. nutS
75b Washer
75c Upper rubber ring
75d Lower rubber ring
75e Disc
75g Locking ring

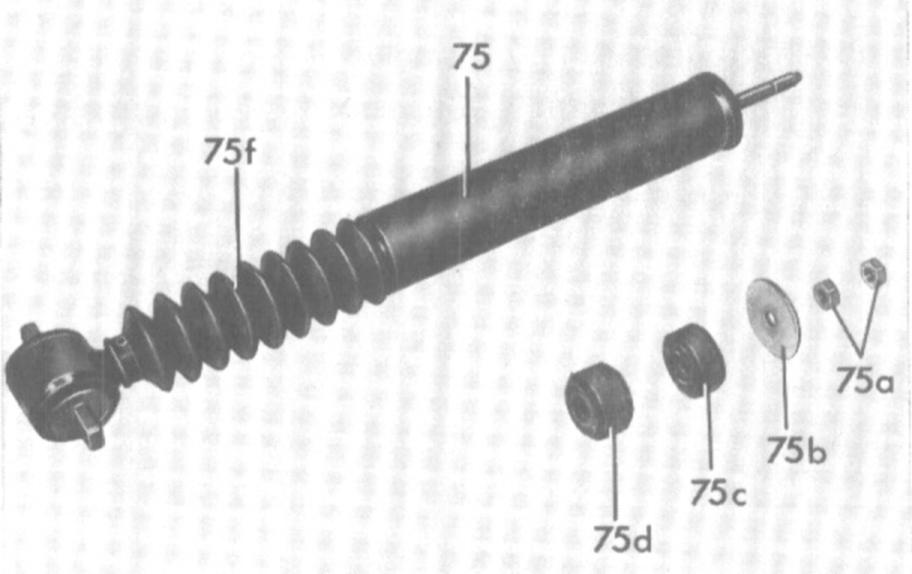

Shock absorber without separating piston F & S
75 Shock absorber
75a Hex. nuts
75b Washer
75c Upper rubber ring
75d Lower rubber ring
75f Dust protection

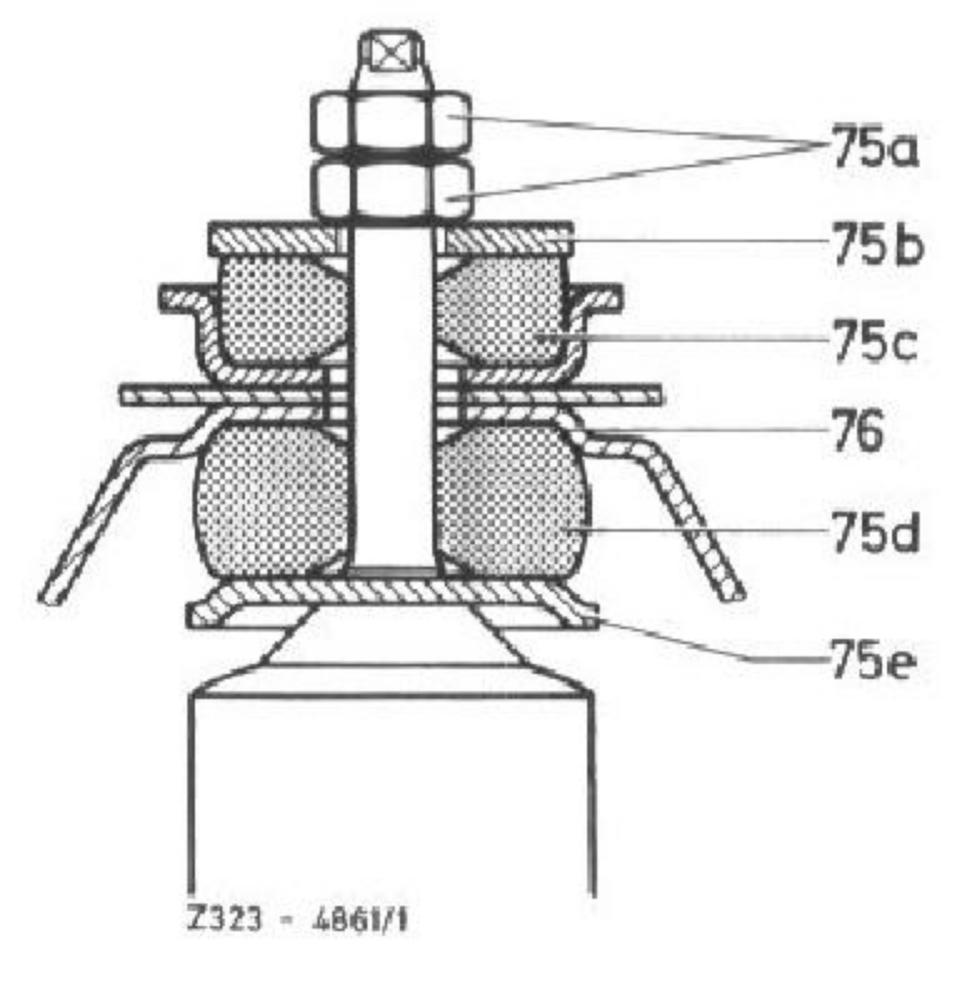

1st version
Upper suspension
Shock absorber without separating piston
F&S

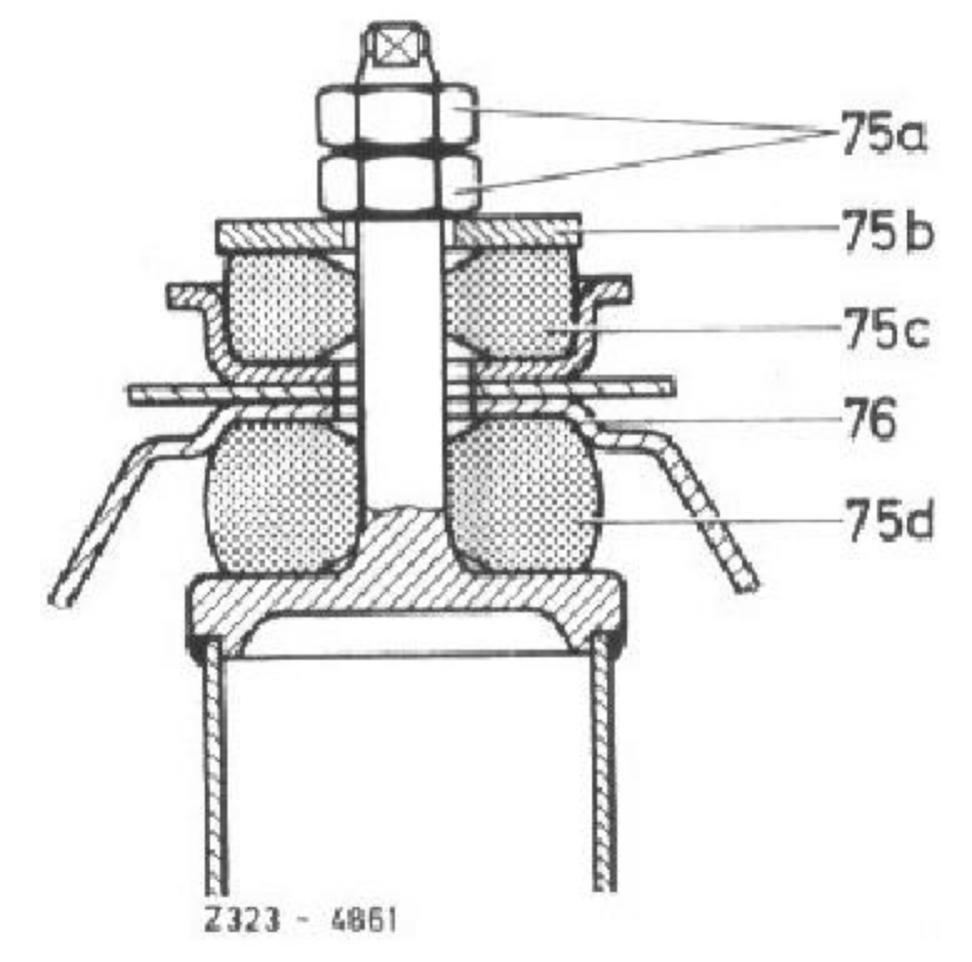

2nd version
Upper suspension
Shock absorber without separating piston
F&S
Boge

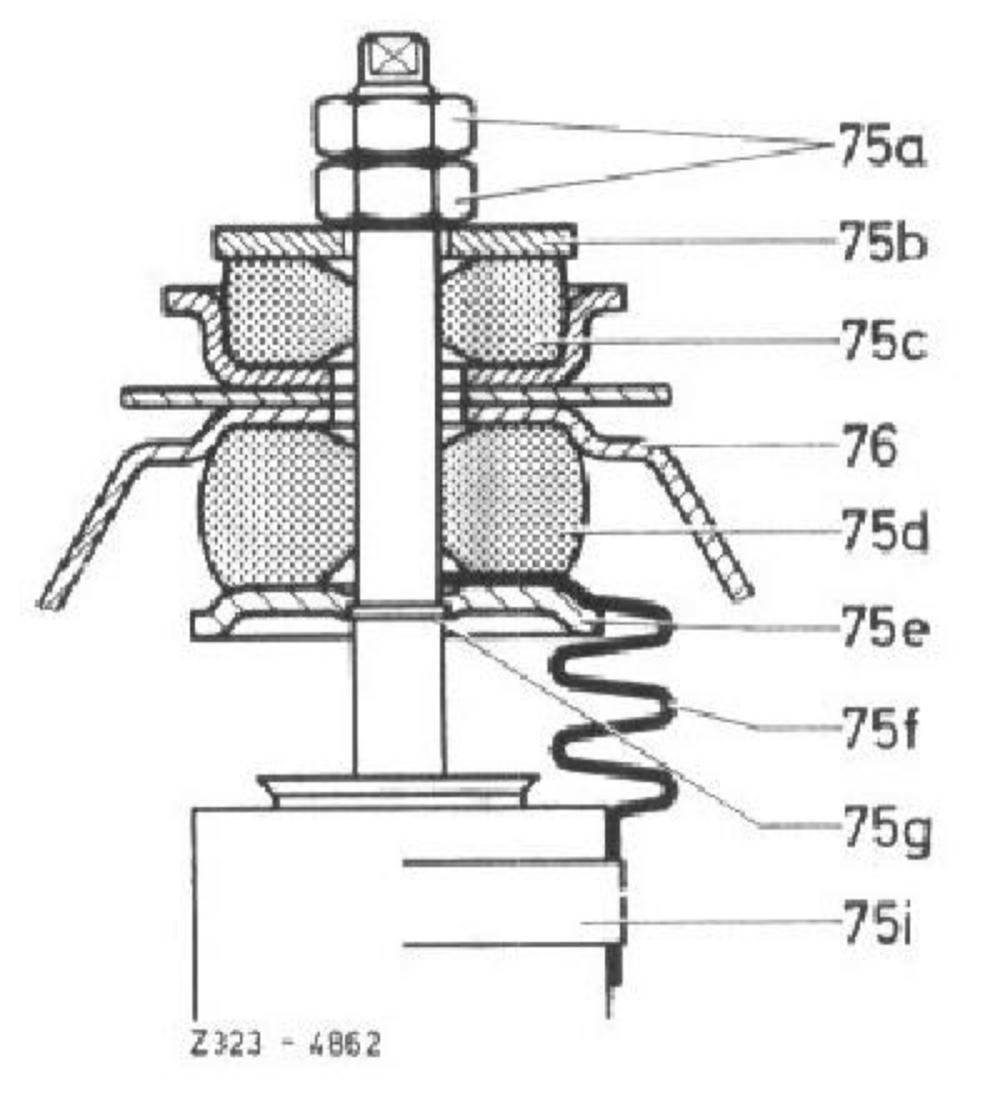

Upper suspension
Shock absorber with separating piston
75a Hex. nuts
75b Washer
75c Upper rubber ring
75d Lower rubber ring
75e Disc
75f Dust protection
75g Locking ring
75i Tensioning strap
76 Dome on frame floor (rear axle)

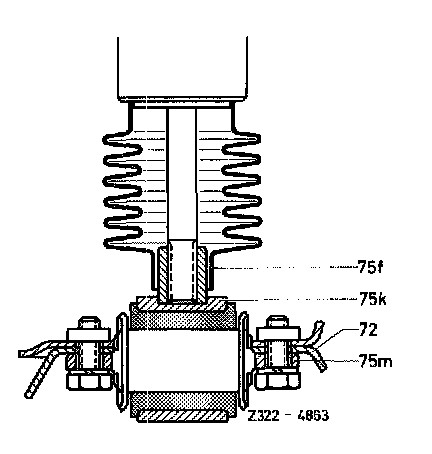

Lower suspension
Shock absorber with separating piston






Lower suspension
Shock absorber without separating piston
F&S, Boge
72 Semi-trailing arm
75f Dust protection
75k Suspension eve
75l Rubber mount
75m Fastening bracket
