Mercedes Benz
>>
1984
>>
190D 2.2 (201.122) L4-2.2L DSL (601.921)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Exhaust Gas Recirculation/Idle Speed Control
Exhaust Gas Recirculation/Idle Speed Control

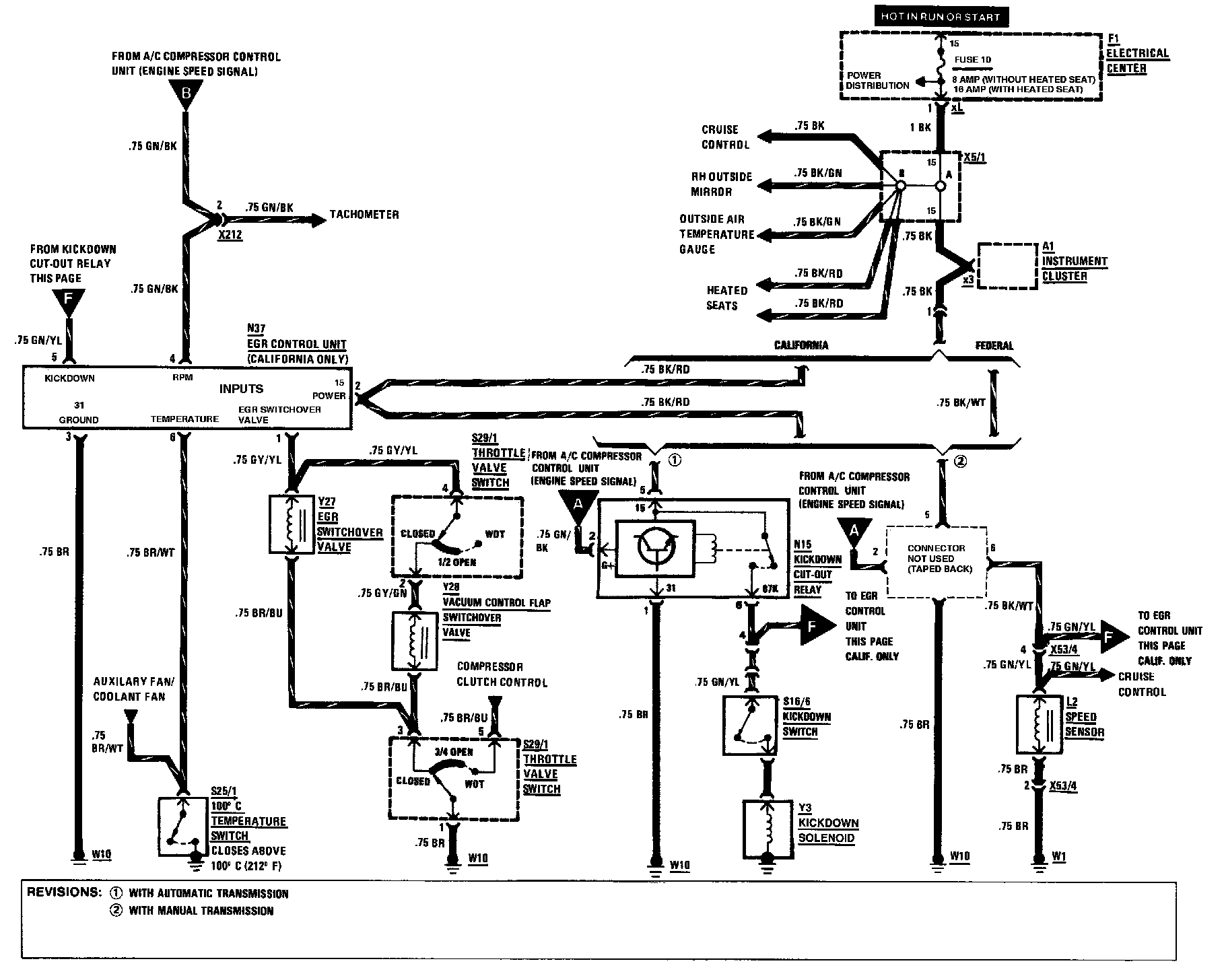

Exhaust Gas Recirculation, California Models with Manual Transmission:
