Ground Distribution

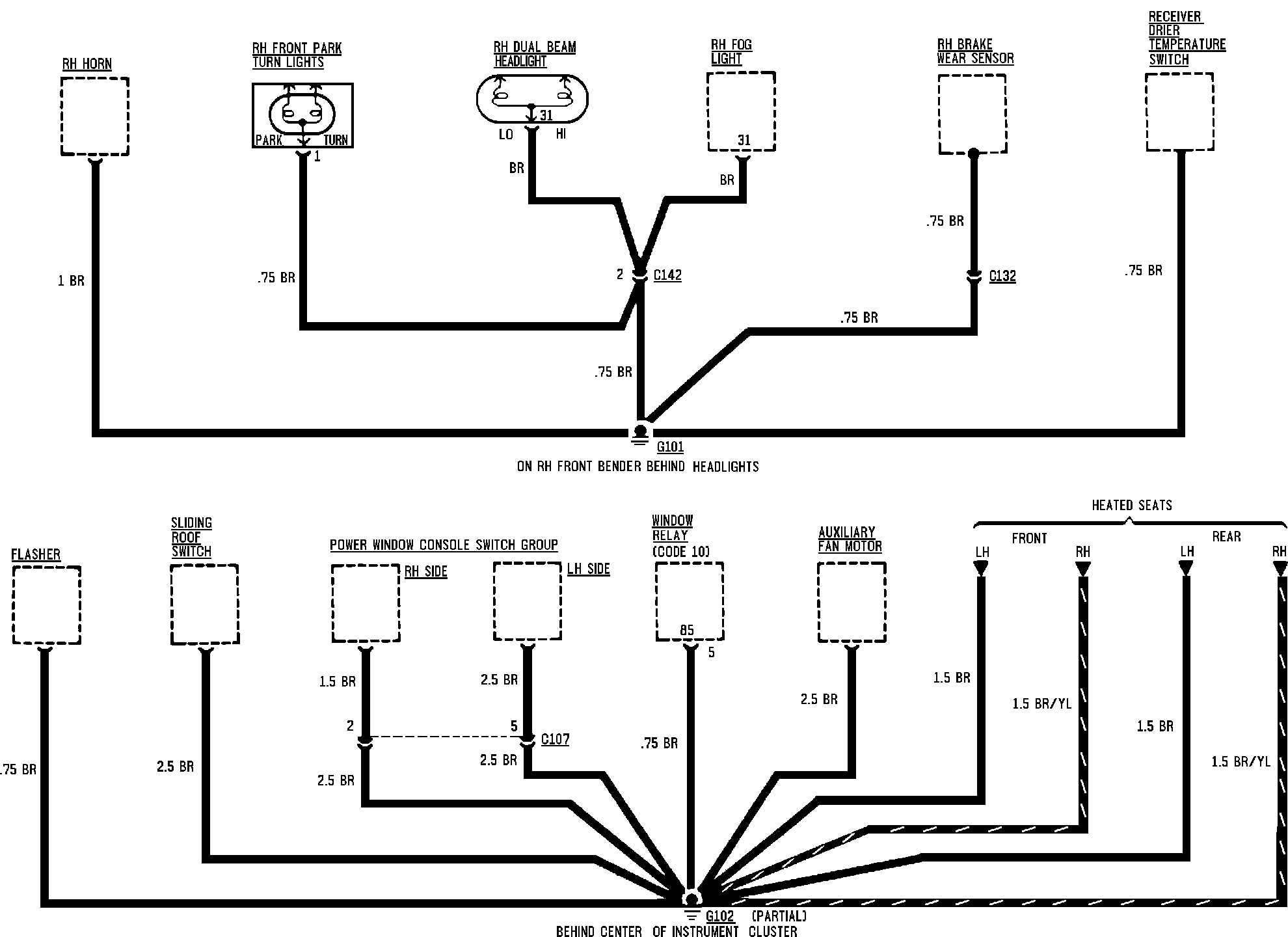

Fig. 39a Ground Distribution Wiring Diagram:



Fig. 39b Ground Distribution Wiring Diagram:



Fig. 39c Ground Distribution Wiring Diagram:
