Mercedes Benz
>>
1984
>>
380SE (126.032) V8-3.8L (116.963)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

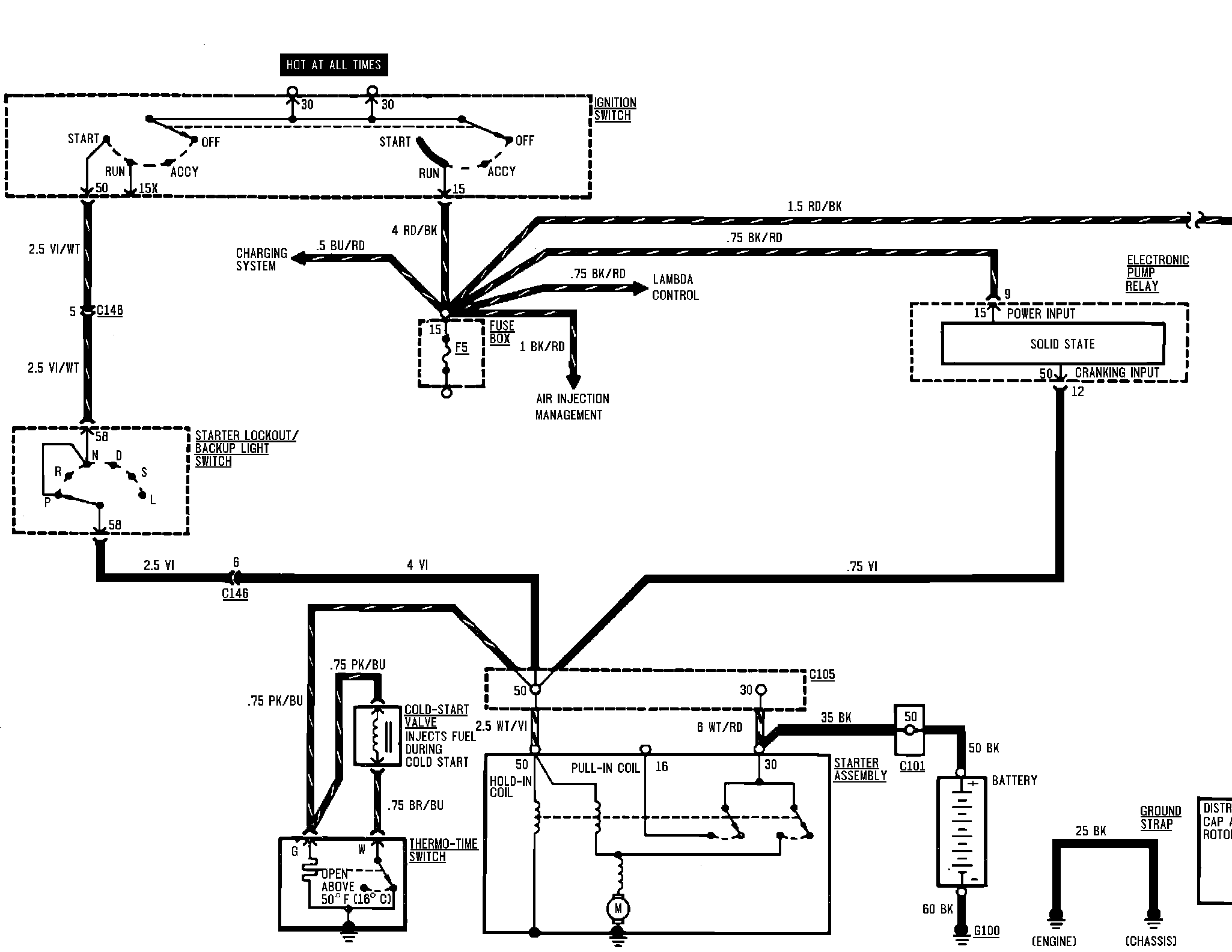

Fig. 50 Ignition System Wiring Diagram:
ڴ��� �Air Injection Management & Engine Control Wiring Diagram:
