Home >> Mercedes Benz >> 1985 >> 300TD (123.193) L5-3.0L DSL Turbo (617.952) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module

Electronic Brake Control Module

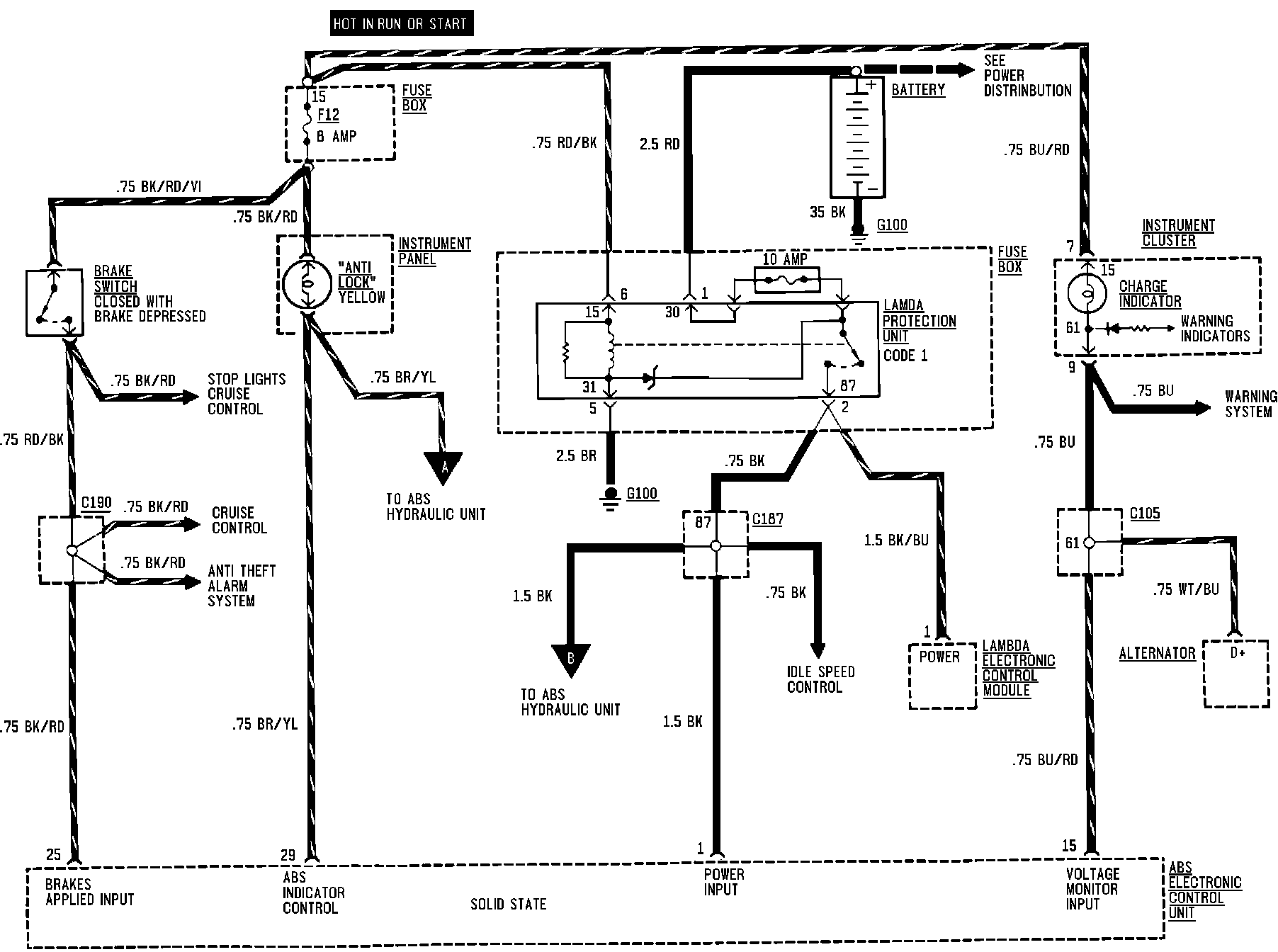

Fig. 77a Anti-Lock Brake System Wiring:

Fig. 77b Anti-Lock Brake System Wiring:
