Mercedes Benz
>>
1985
>>
300TD (123.193) L5-3.0L DSL Turbo (617.952)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

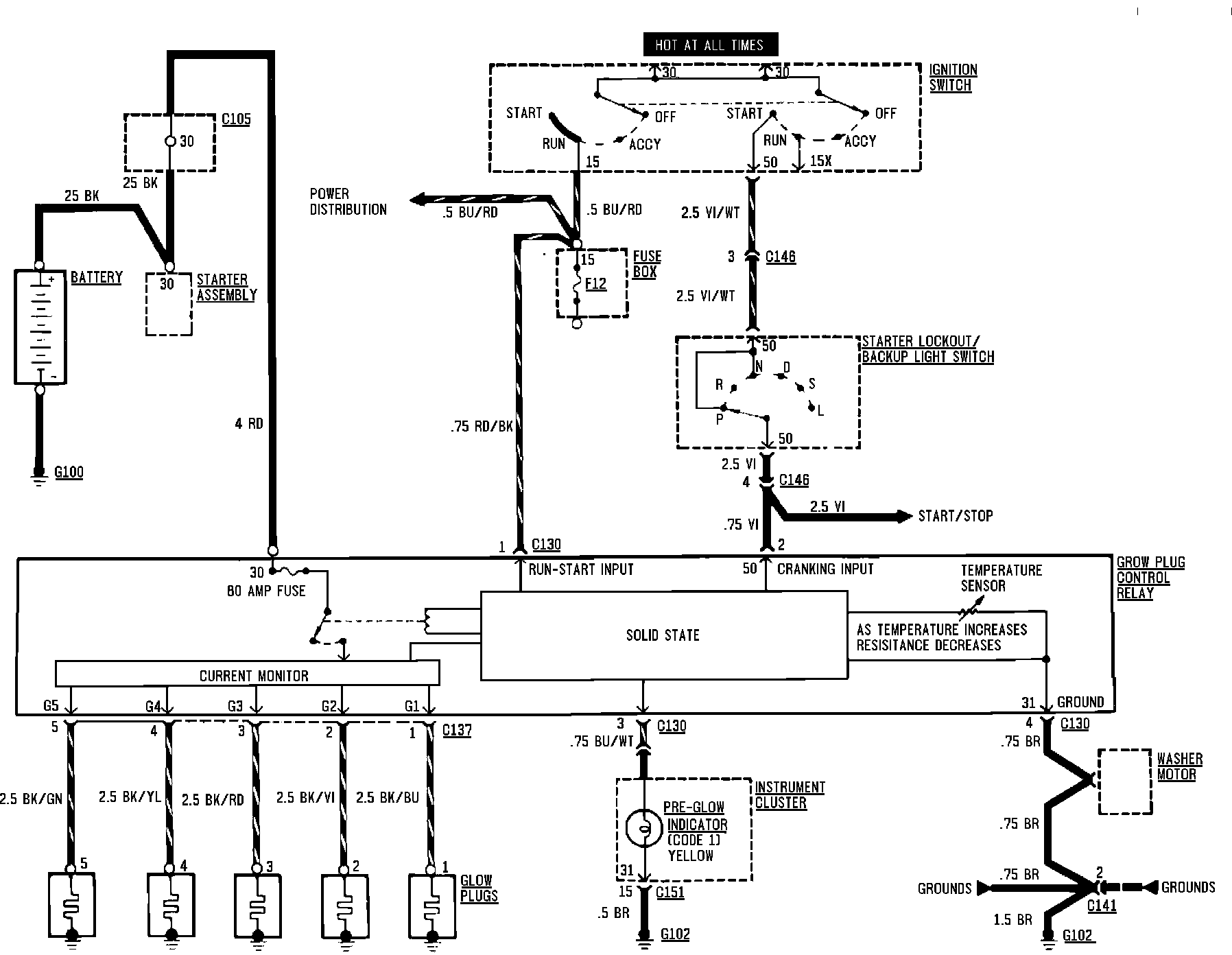

Fig. 64 Pre-Glow System Wiring:
Start/Stop (Ignition Switch - Also See Power Distribution):
