Electrical Diagrams

Fig. 50 Ignition System Wiring Diagram:

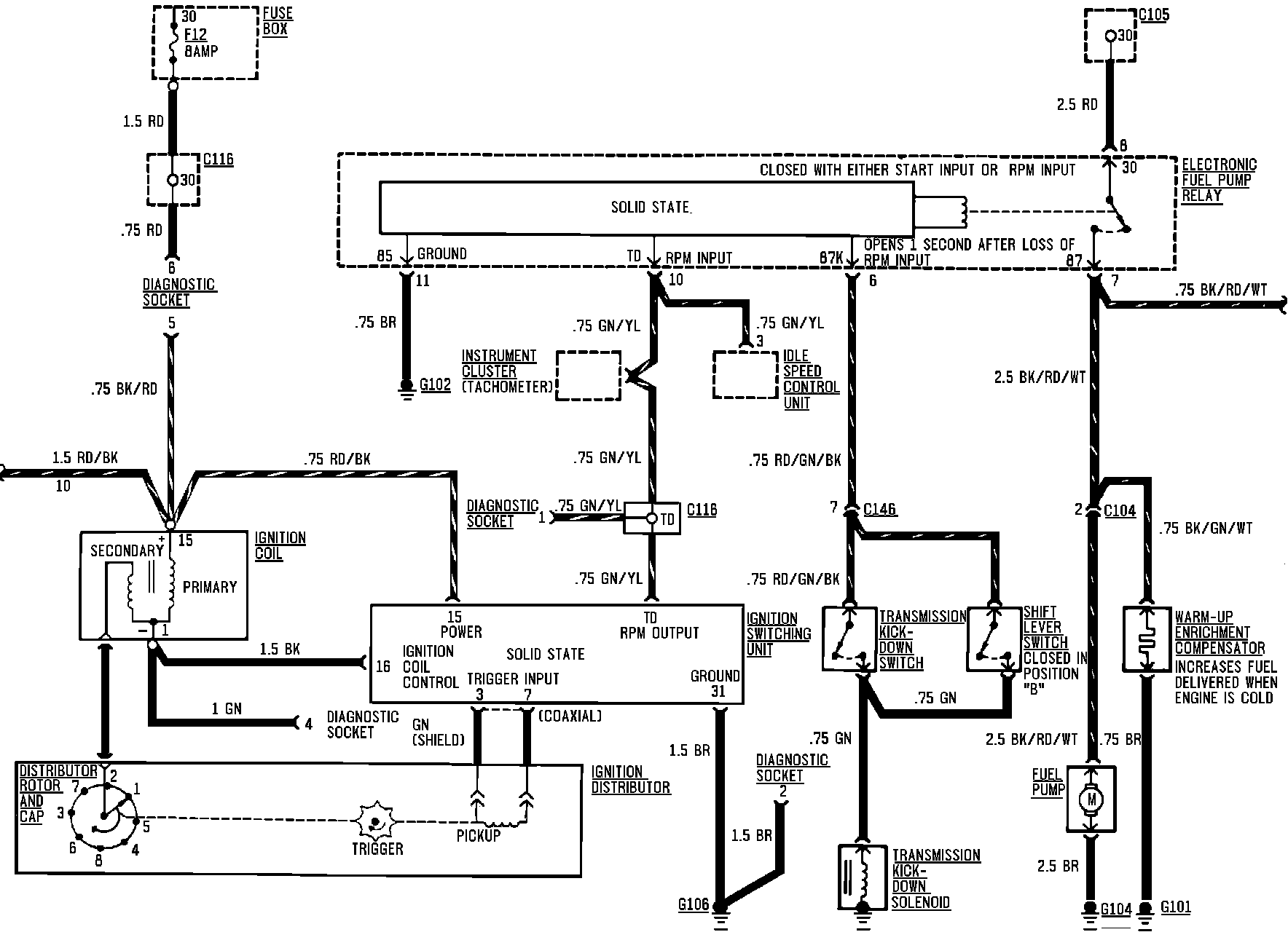

Fig. 142 Fuel Delivery, Ignition System & Transmission Kickdow Wiring:
