Home >> Mercedes Benz >> 1986 >> 190E 2.3-16 (201.034) L4-2.3L (102.983) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

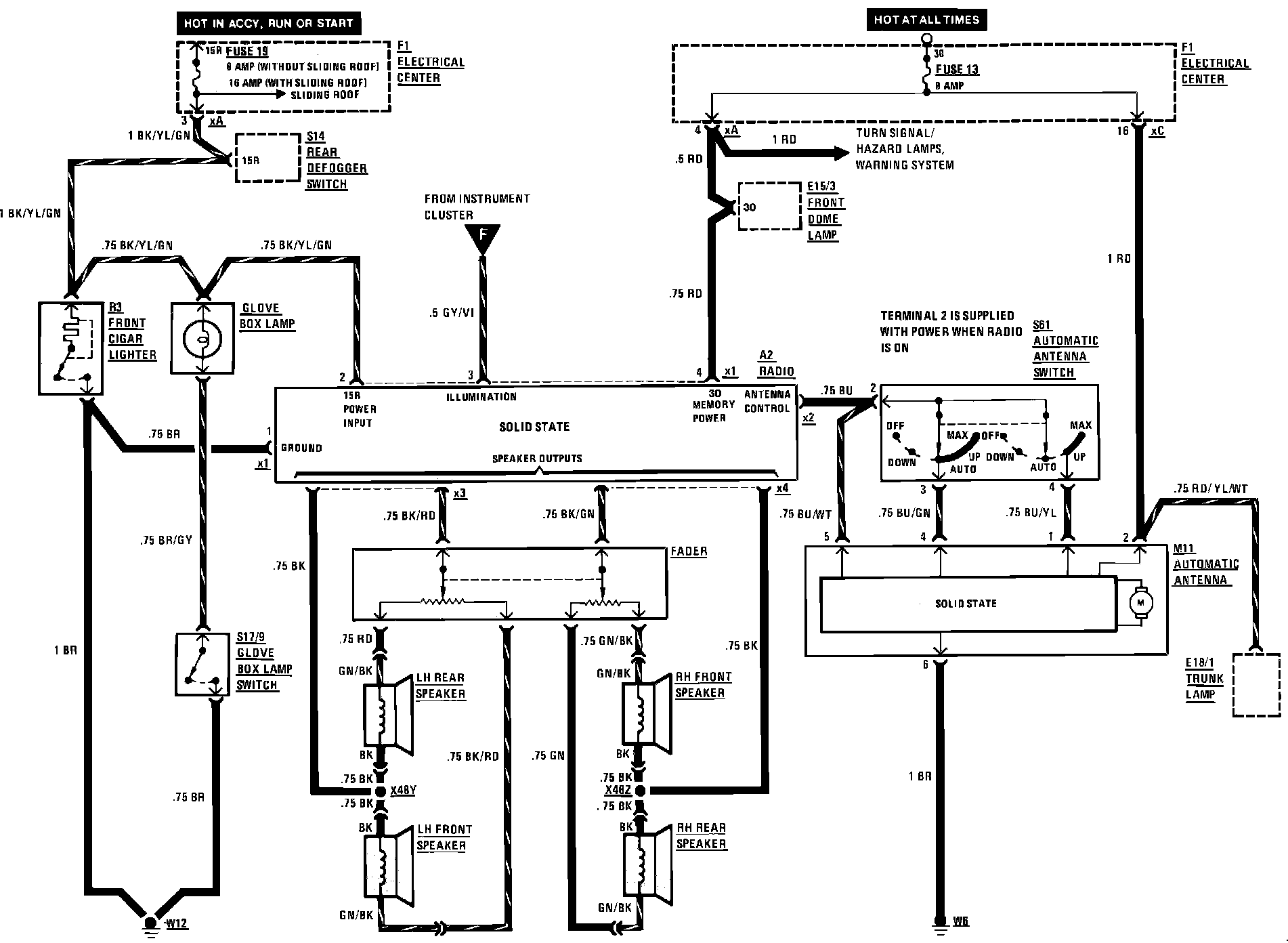

Glove Box Lamp, Cigar Lighter, Radio, Automatic Antenna:
