Power Distribution

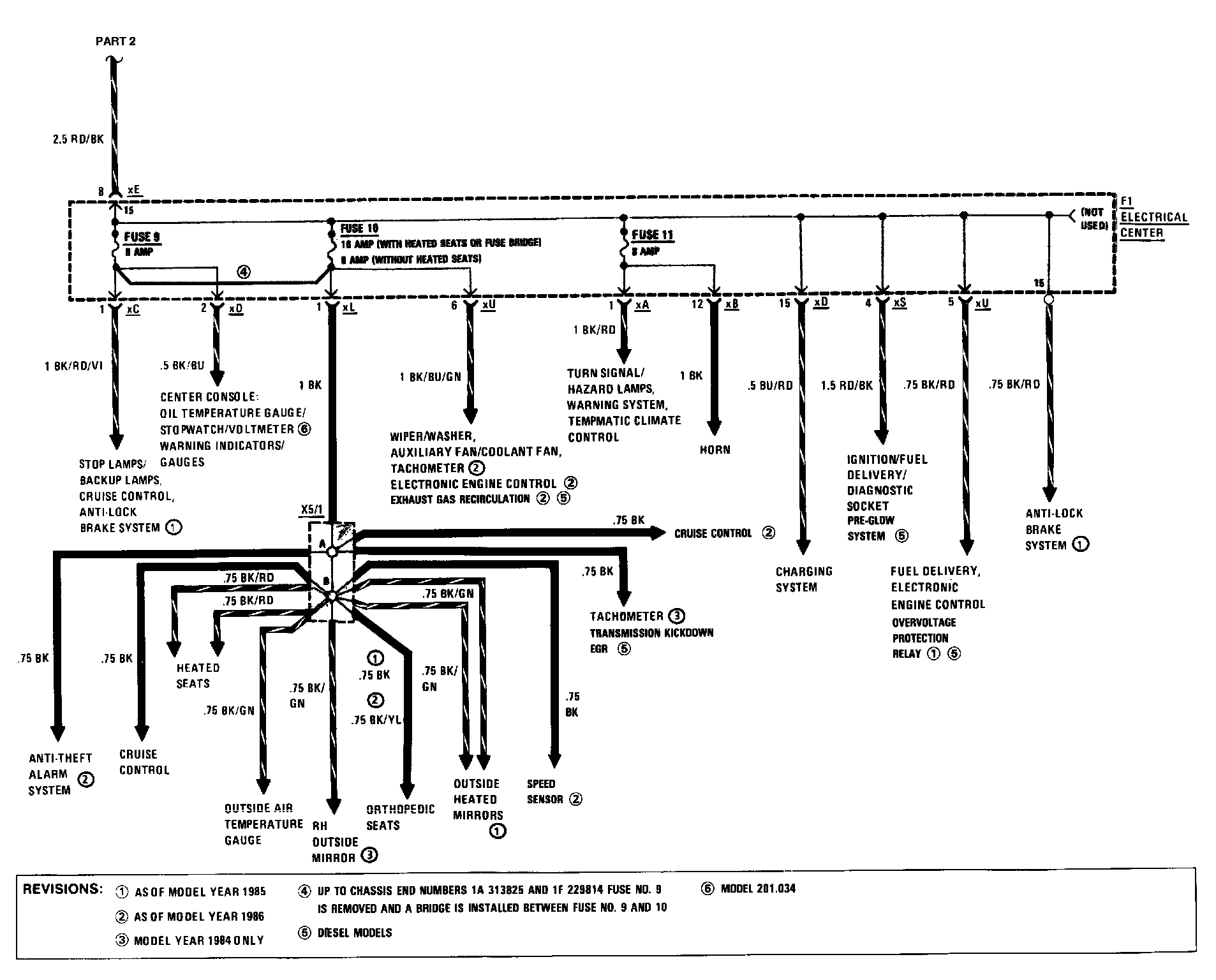

Part 1, Power Distribution:

Part 2, Power Distribution:

Part 3, Power Distribution:
