Instrument Cluster Illumination

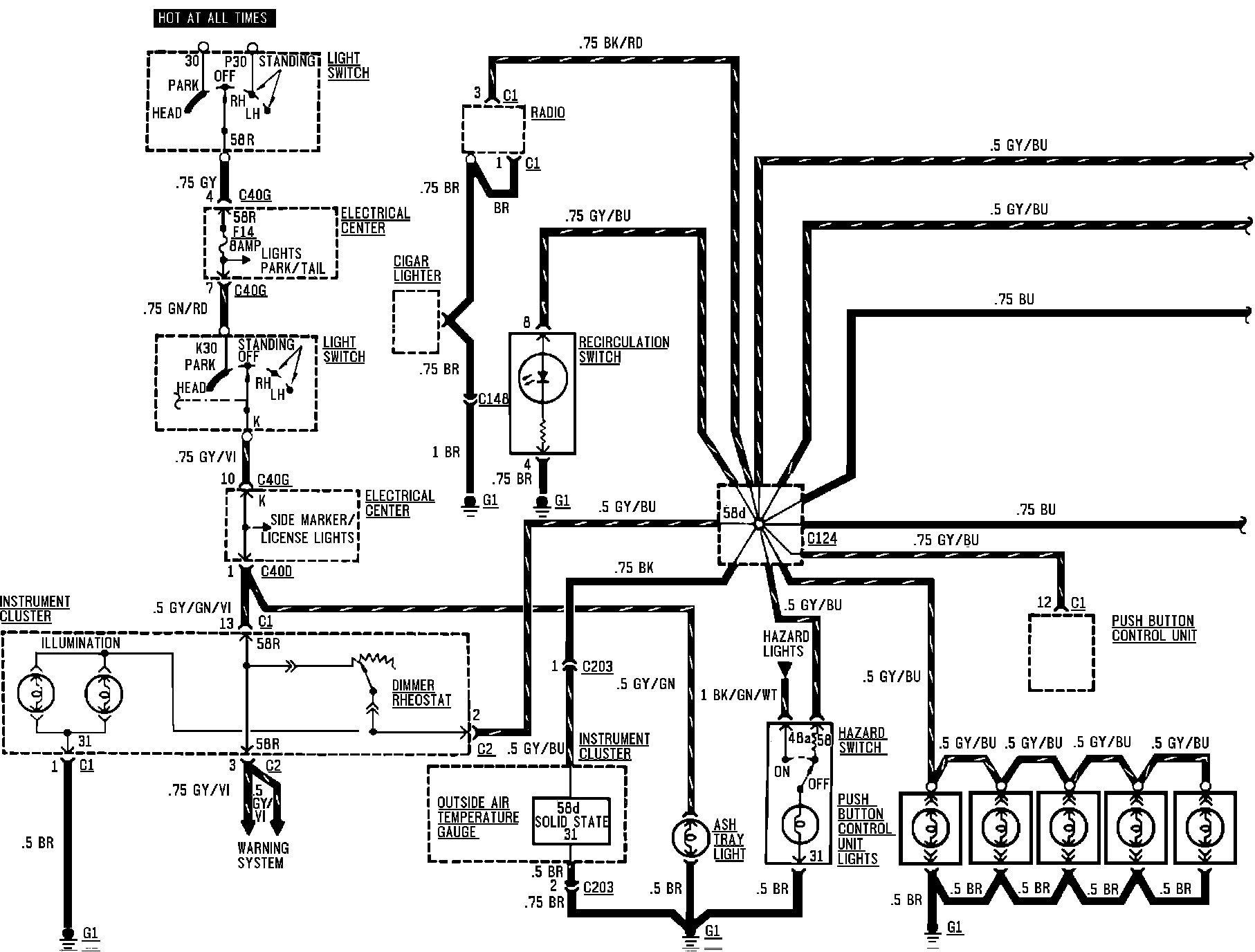

Fig. 32a Instrument Panel Illumination Wiring:

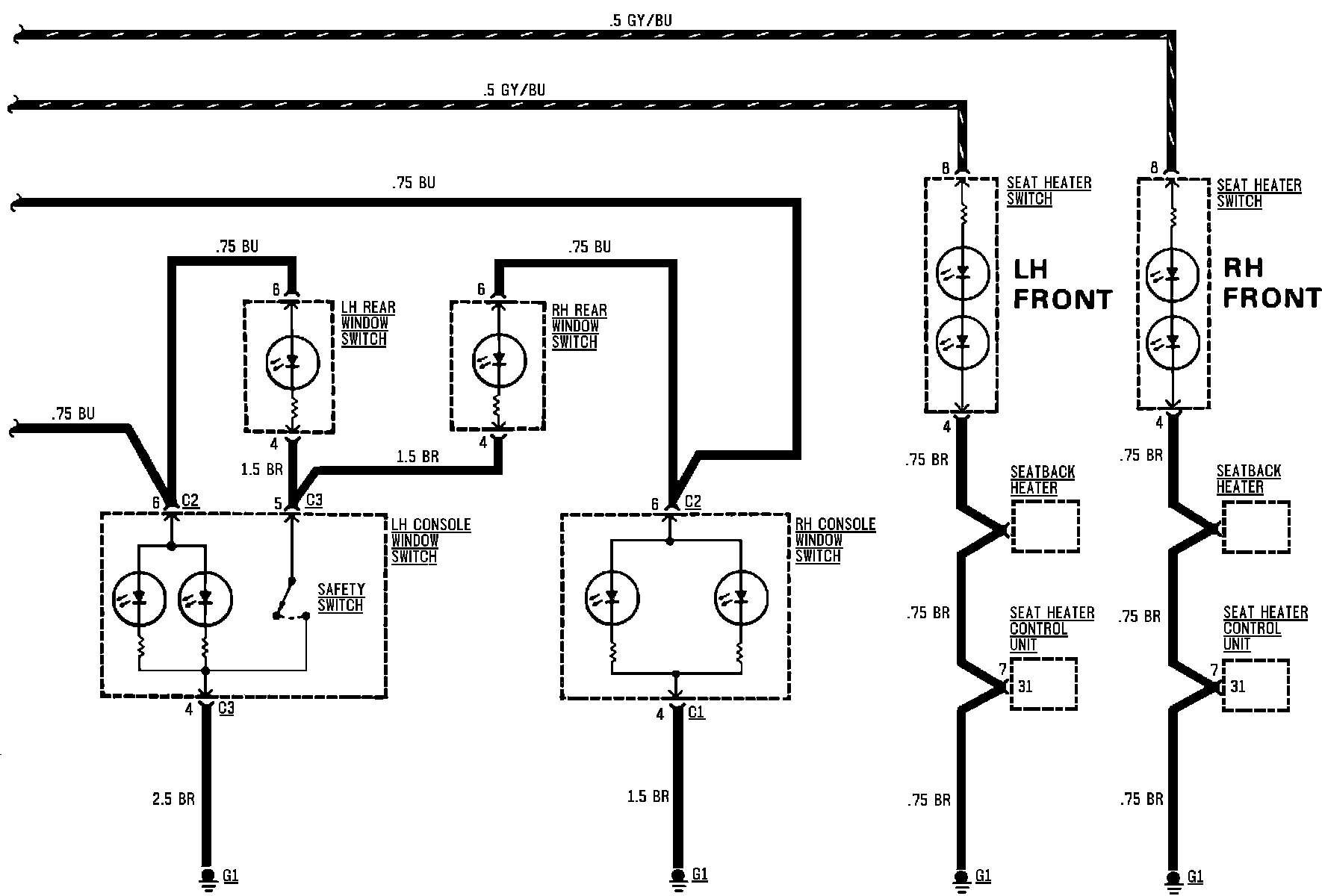

Fig. 32b Instrument Panell Illumination Wiring:
