Park/Tail/Marker/License
Park/Tail/Marker/License

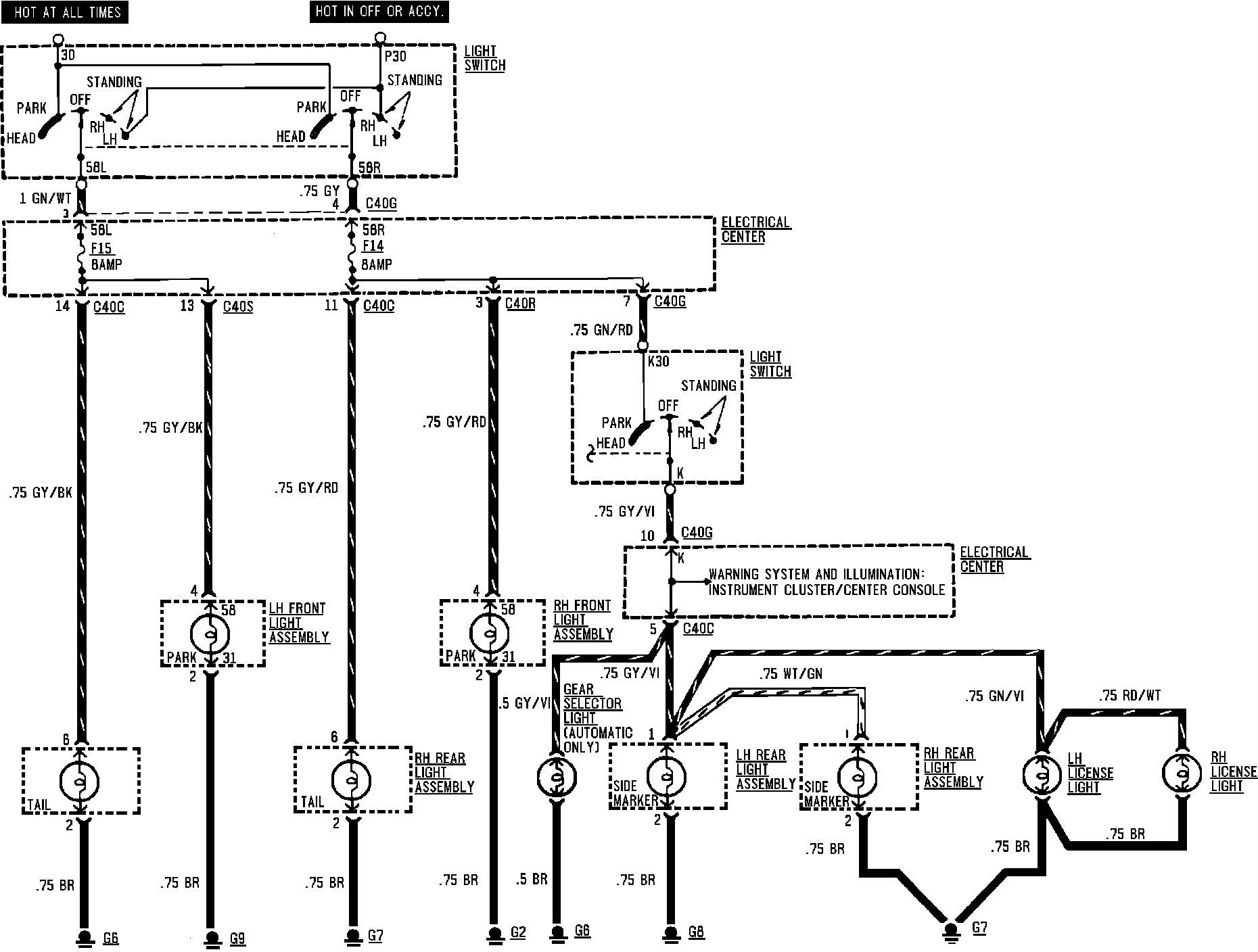

Fig. 34 License Plate, Parking, Side Marker & Tail Lamp Wiring:
