Timing Component Alignment Marks: Locations

Engine Basic Timing Marks




- Position piston of No. 1 cylinder on ignition TDC.

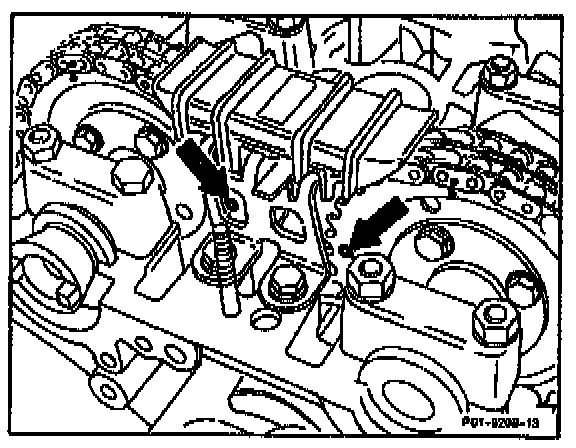

- Check that 2 mm marking holes on camshafts (arrows) are exactly opposite each other.

If markings don't align, the camshaft timing must be adjusted.
