Mercedes Benz
>>
1986
>>
190E 2.3-16 (201.034) L4-2.3L (102.983)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

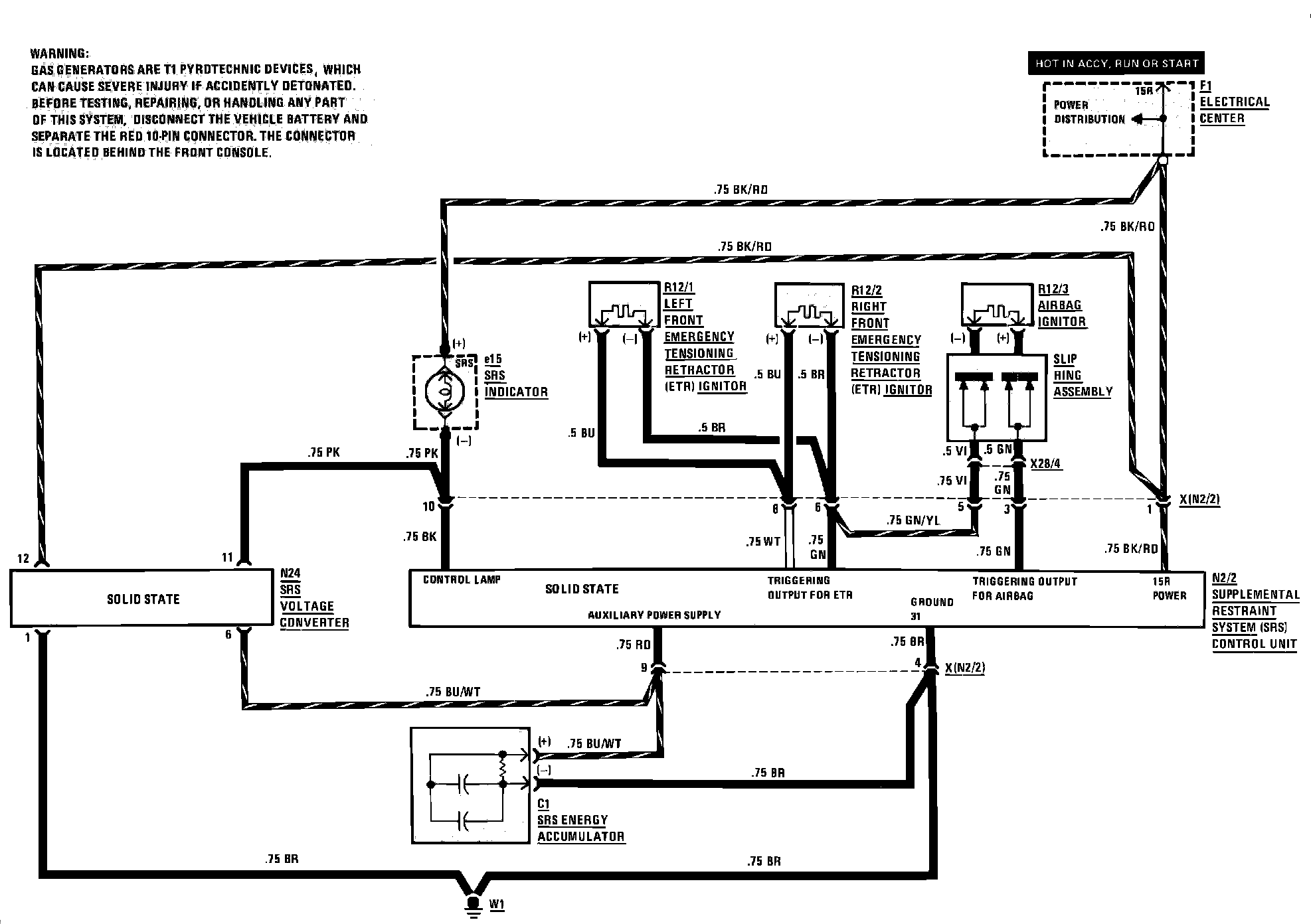

Supplemental Restraint System (SRS) (With Air Bag):
