Fuel Distributor - Lower Chamber Pressure Test

REF. NO. MBNA 07.3/2, 58/20

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: December 1985

SUBJECT:
MEASURING LOWER CHAMBER PRESSURE IN THE FUEL DISTRIBUTOR ENGINE 102.983 (MODEL 201.034)

Due to limited space, a fuel line (part no. 117 070 28 32) must be used in conjunction with a pressure gauge (special tool no. 102 589 00 21 00) and reducing bushing (special tool no. 102 589 06 63 00) for measuring lower chamber pressure at the pressure connection of the fuel distributor. Refer to job no. 07.3-120.

We suggest that you order this fuel line through your respective PDC, store it with your other special tools and identify it as such by painting it red.

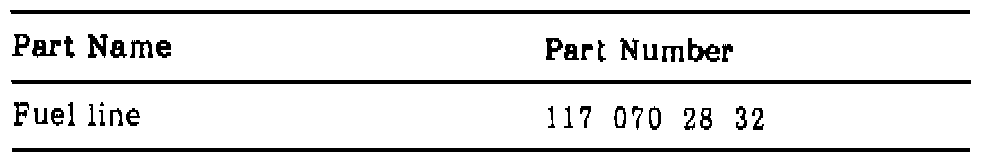

Parts Information
