Timing Chain Cover Gasket - Precautions

REF. NO. 01/16, 20/42

To: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: August 1989

SUBJECT:
TIMING CHAIN COVER GASKET
ENGINE 102

In case of repairs that require the removal of the timing chain cover on M102 engines with single poly V-belt, a liquid sealing compound must be used between the timing chain cover and the crankcase. The use of a paper gasket may result in V-belt noise due to misalignment of the coolant pump and the belt pulley.

On M102 engines with multiple belt drive, a paper gasket may be used.

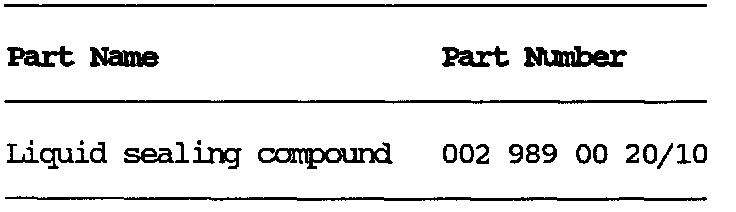

Parts Information

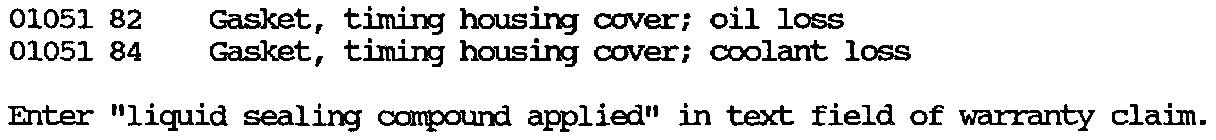

In Case of Warranty:





Damage Code
