Shift Linkage: Adjustments

NOTE: For the adjusting jobs described below, the vehicle should rest on its wheels.

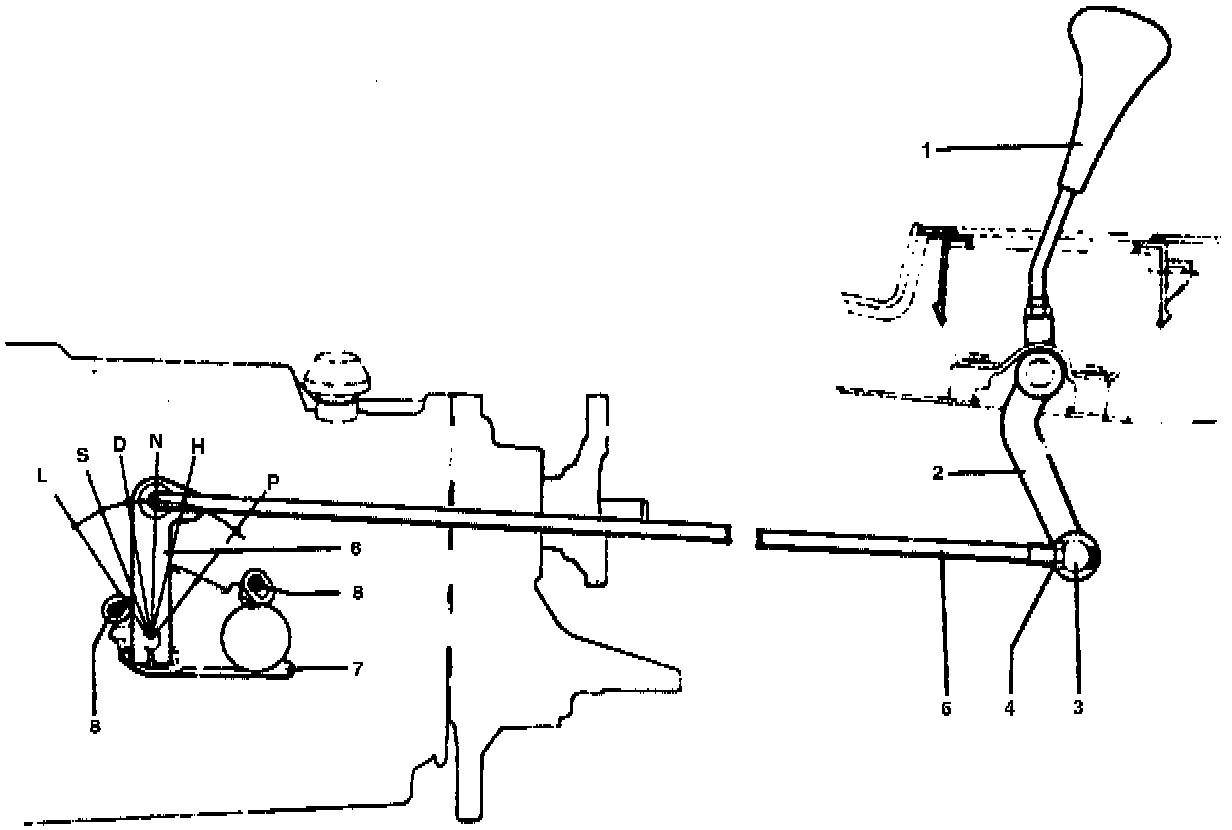

1 Disconnect control rod (5) from selector lever (2).
2 Set range selector lever (6) into position "N".
3 Loosen counter nut (4). Adjust control rod length wise in such a manner that approx. 1 mm clearance is available between selector lever (1) and "N" stop on gear change plate.
4 Attach control rod and secure. Tighten counter nut (4).
