Powertrain Management
>>
Air Injection
Air Injection

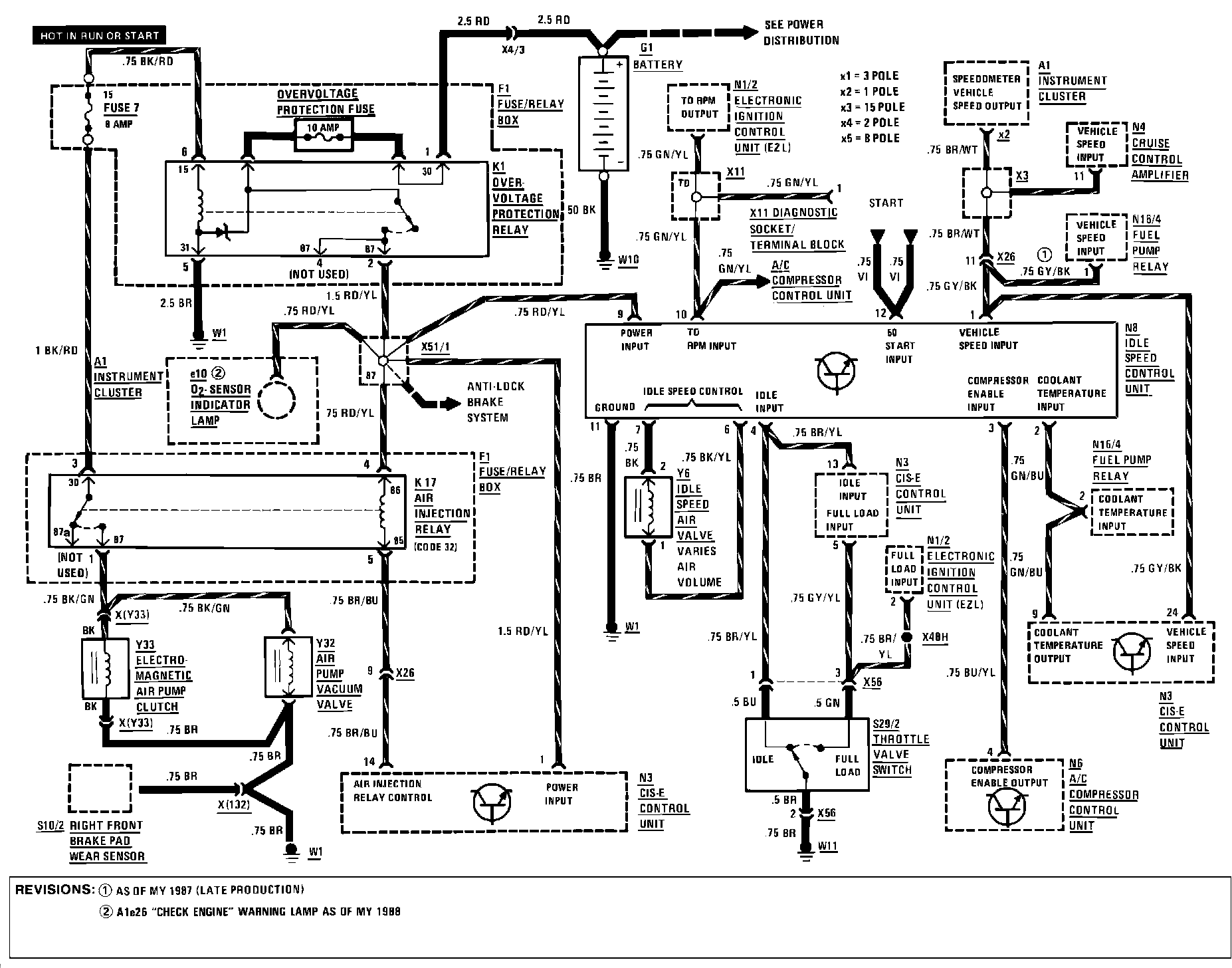

Fig. 8 Air Injection Management, Idle Speed Stabilization:
